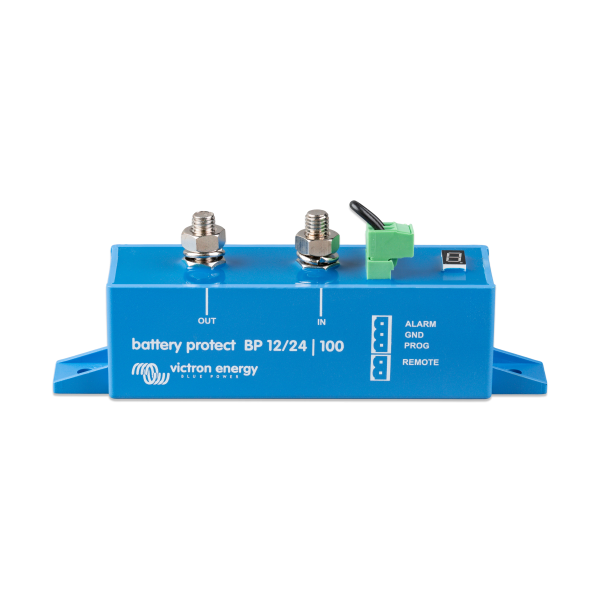

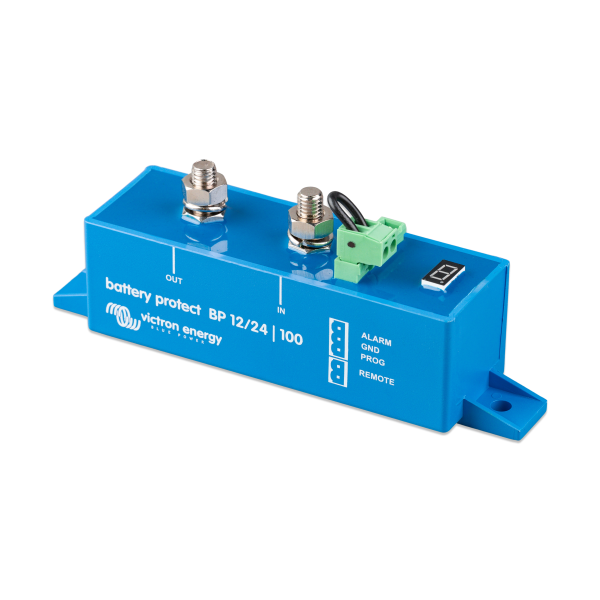

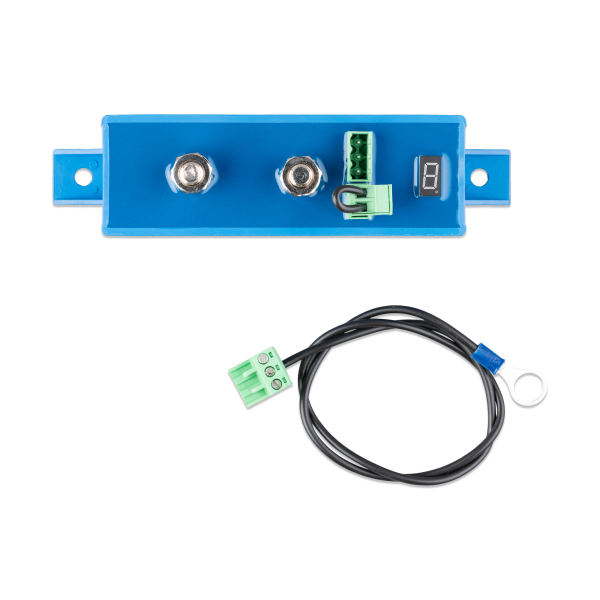

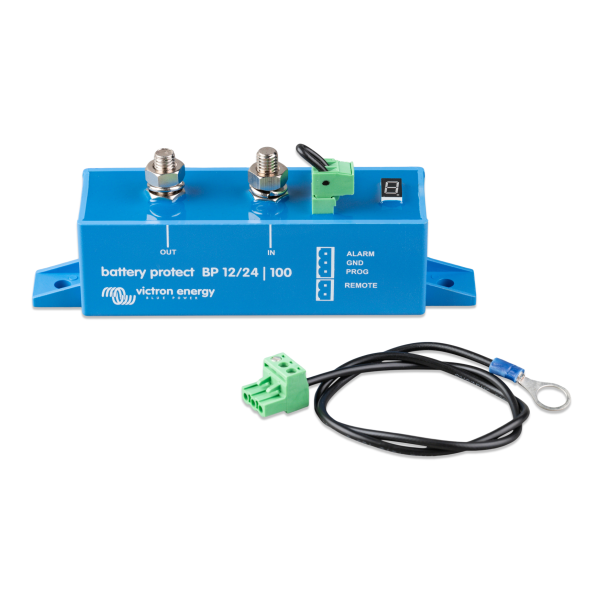

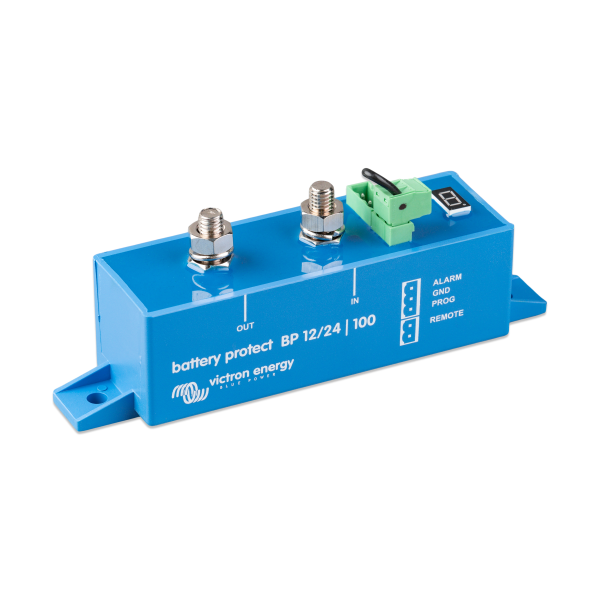

BatteryProtect 12/24V-100A
$ 234.000
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.
| Peso | 1,1 lbs |
|---|---|
| Dimensiones | 2,8 × 7,5 × 2,8 in |
| Dimensions (L x W x H mm) | 70 x 190 x 70 mm |
| Battery Voltage Nominal | 12V or 24V (automatic detection) |
| Operating Voltage Range | [6, 35] V |
| Maximum Continuous Load Current Rating40 | 100 A |
| Maximum Continuous Load Current Rating60 | 60 A |
| Peak Current Rating | 600 A |
| Reverse Current | No |
| Current Consumption When On | 1.5 mA |
| Current Consumption When Off | 0.6 mA |
| Alarm Output Delay | 12 s |
| Maximum Load Alarm Output | 50 mA |
| Load Disconnect Delay | 90 s |
| Load Reconnect Delay | 30 s |
| Default Threshold Disengage12 | 10.5 V |
| Default Threshold Disengage24 | 21 V |
| Default Threshold Engage12 | 12 V |
| Default Threshold Engage24 | 24 V |
| Remote On Off Terminal | 1 |
| Bluetooth | No |
| Protections | Output short-circuit |
| Battery And Load Terminals | M8 bolts |
| Remote Terminal | Screw terminal two pole |
| Alarm Terminal | Screw terminal 3-pole |
| Protection Category Connection Area | IP00 |
| Protection Category Electronic Components | IP67 |
| Weight | 0.5 kg |
| Height | 59 mm |
| Width | 42 mm |
| Depth | 115 mm |
