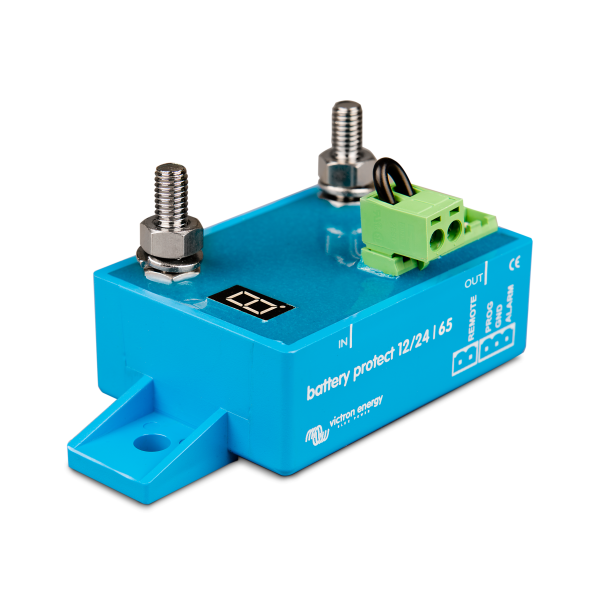

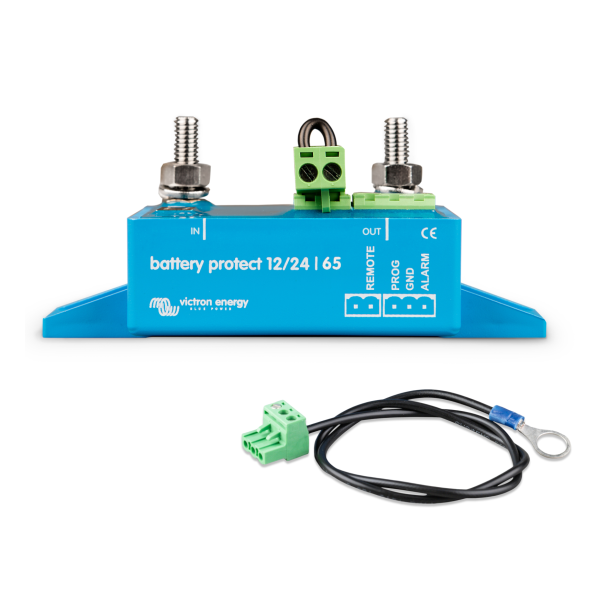

BatteryProtect 12/24V-65A

Name: BatteryProtect 12/24V-65A
Brand: Victron
SKU: BPR000065400
Availability: BackOrder

Victron

$ 160.000

AvailableShips next business day

Congratulations! You got free shipping 🎉

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

Peso	0,5 lbs
Dimensiones	2,4 × 5,1 × 2,2 in
Dimensions (L x W x H mm)	60 x 130 x 55 mm
Battery Voltage Nominal	12V or 24V (automatic detection)
Operating Voltage Range	[6, 35] V
Maximum Continuous Load Current Rating40	65 A
Maximum Continuous Load Current Rating60	39 A
Peak Current Rating	250 A
Reverse Current	No
Current Consumption When On	1.5 mA
Current Consumption When Off	0.6 mA
Alarm Output Delay	12 s
Maximum Load Alarm Output	50 mA
Load Disconnect Delay	90 s
Load Reconnect Delay	30 s
Default Threshold Disengage12	10.5 V
Default Threshold Disengage24	21 V
Default Threshold Engage12	12 V
Default Threshold Engage24	24 V
Remote On Off Terminal	1
Bluetooth	No
Protections	Output short-circuit
Battery And Load Terminals	M6 bolts
Remote Terminal	Screw terminal two pole
Alarm Terminal	Screw terminal 3-pole
Protection Category Connection Area	IP00
Protection Category Electronic Components	IP67
Weight	0.2 kg
Height	40 mm
Width	48 mm
Depth	106 mm
