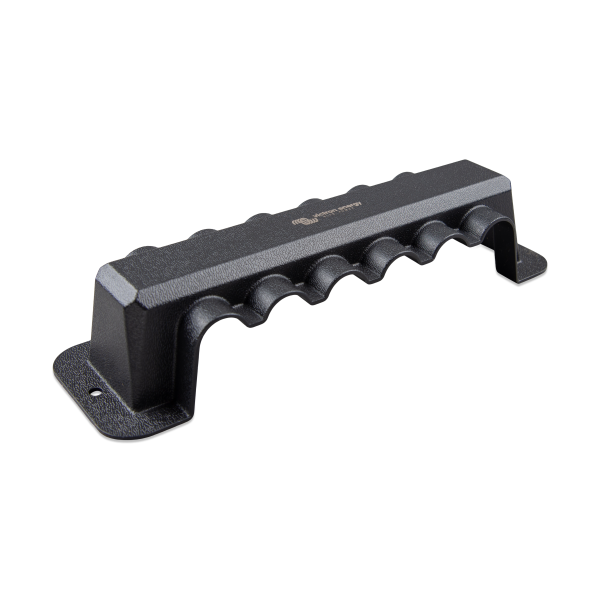

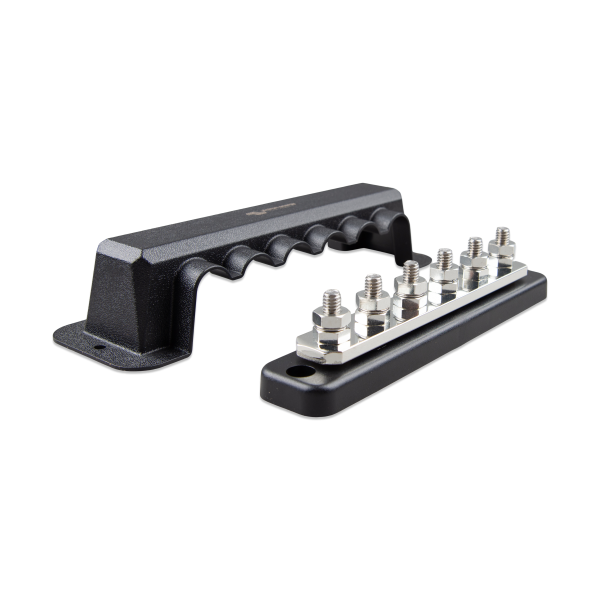

Busbar 250A 2P with 6 screws +cover
$ 192.000
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V – 4 high current connections
- 150A / 70V – 6 high current connections
- 150A / 70A – 2P with 10 screws +cover
- 150A / 70A – 2P with 20 screws +cover
- 250A / 70V – 4 high current connections
- 250A / 70V – 6 high current connections
- 250A / 70A – 2P with 6 screws +cover
- 250A / 70A – 2P with 12 screws +cover
- 600A / 70V – 4 high current connections and 8 low current connections
- 600A / 70V – 8 high current connections and 8 low current connections
For more technical information and for the busbar dimensions see the datasheet.
| Peso | 0,6 lbs |
|---|---|
| Dimensiones | 3,5 × 9,4 × 2,8 in |
| Dimensions (L x W x H mm) | 90 x 240 x 70 mm |
| Max Current | 250 A |
| Max Voltage | 70 V |
| Busbar Material | Tin plated copper |
| Busbar Dimensions | 6.35mm x 25mm |
| Terminal Diameter1 | 8 mm |
| Terminal Height1 | 17 mm |
| Terminal Material | Stainless steel |
| Hex Nut Material | Tin plated copper |
| Screw Terminal Diameter | 4.8 mm |
| Screw Terminal Material | Stainless steel |
| Base Material | ABS |
| Base Colour | Black |
| Base Fire Rating | UL 94 V-0 |
| Cover Material | ABS |
| Cover Colour | Black |
| Cover Fire Rating | UL 94 V-2 |
| Weight | 0.25 kg |
| Height | 48 mm |
| Width | 237 mm |
| Depth | 70 mm |
