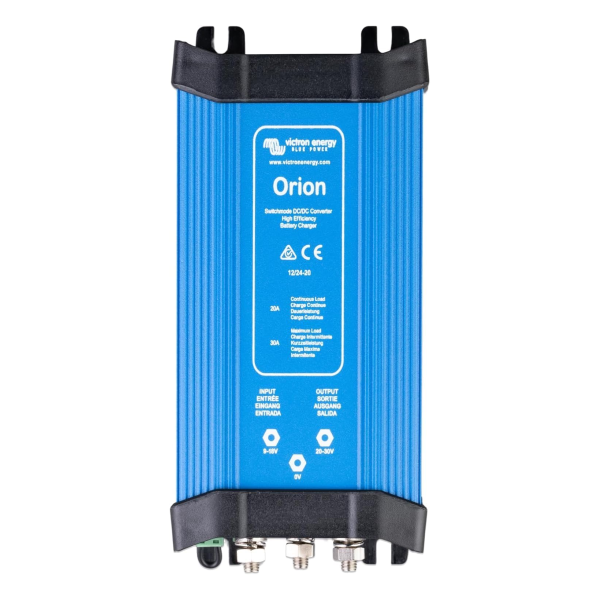

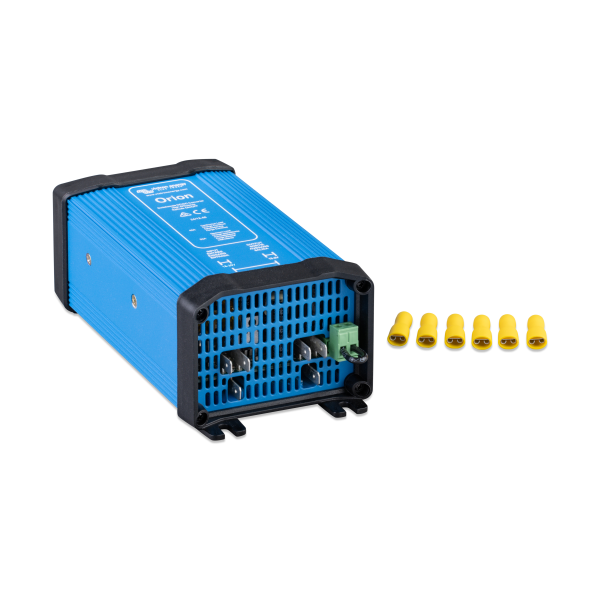

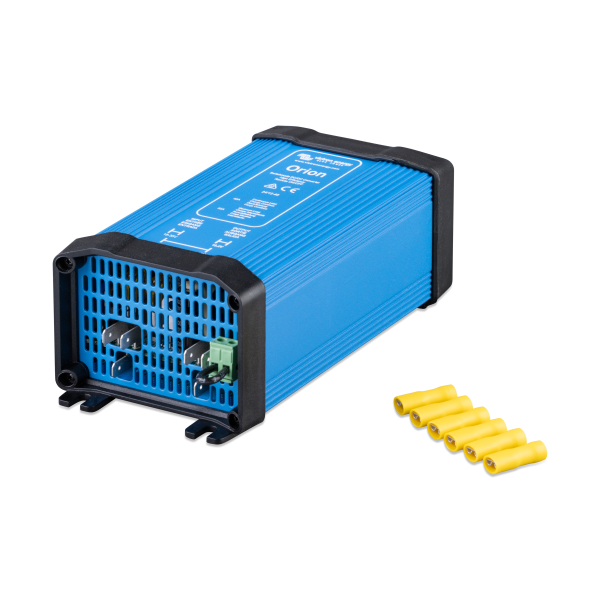

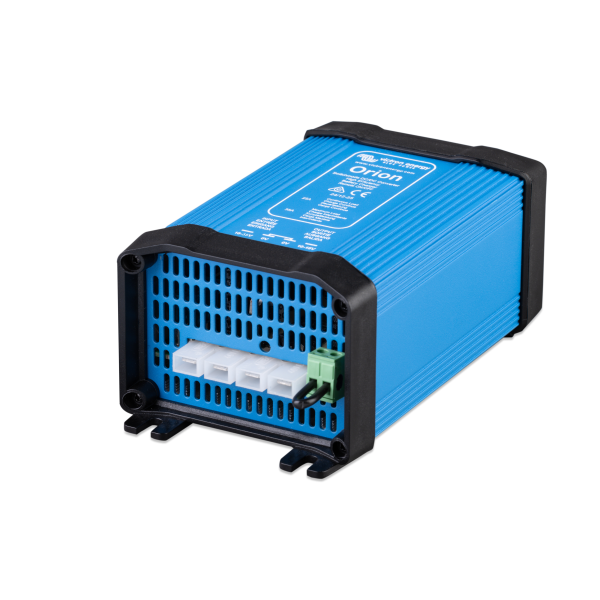

Orion 12/24-20 DC-DC converter IP20
$ 500.000
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
| Peso | 2 lbs |
|---|---|
| Dimensiones | 4,3 × 9,1 × 3,1 in |
| Dimensions (L x W x H mm) | 110 x 230 x 80 mm |
| Input Voltage Range | [9, 18] V |
| Under Voltage Shutdown | 8 V |
| Under Voltage Restart | 10 V |
| Output Voltage | 26.4 V |
| Output Voltage Range | [20, 30] V |
| Maximum Output Current | 30 A |
| Cont Output Current Rating40 | 20 A |
| No Load Current Consumption | 30 mA |
| Max Efficiency | 93 |
| Buffer Charge | 1 |
| Parallelable | 1 |
| Fan Assisted Cooling | 1 |
| Remote On Off Terminal | 1 |
| Dc Connection Terminal Type | M6 bolts |
| Remote On Off Terminal Connection | Screw terminal two pole |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Weight | 0.9 kg |
| Height | 65 mm |
| Width | 88 mm |
| Depth | 195 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Automotive Directive | ECE R10-4 |
| Battery Voltage | |
| DC Output Voltage | |
| Charge Current | |
| Isolated | |
| DC Input Voltage |
