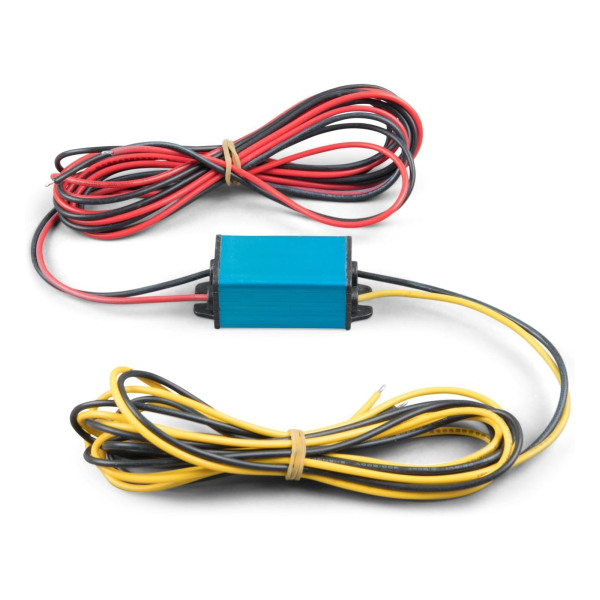

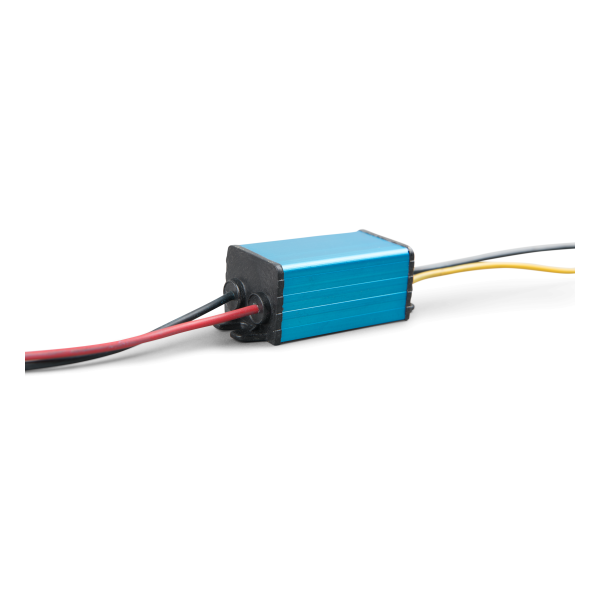

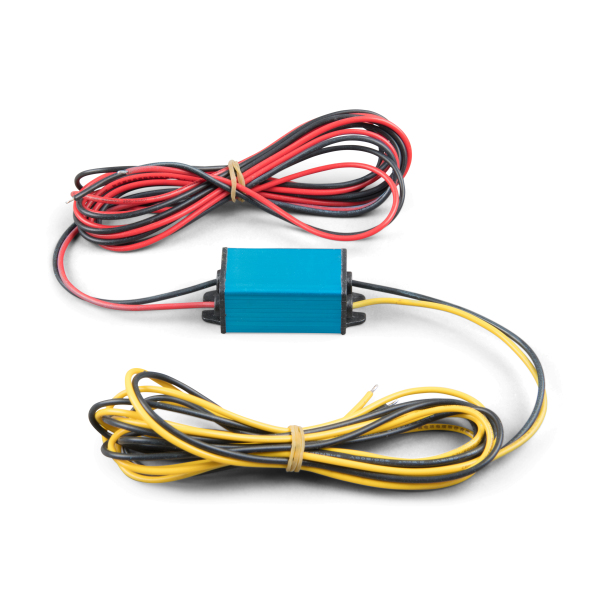

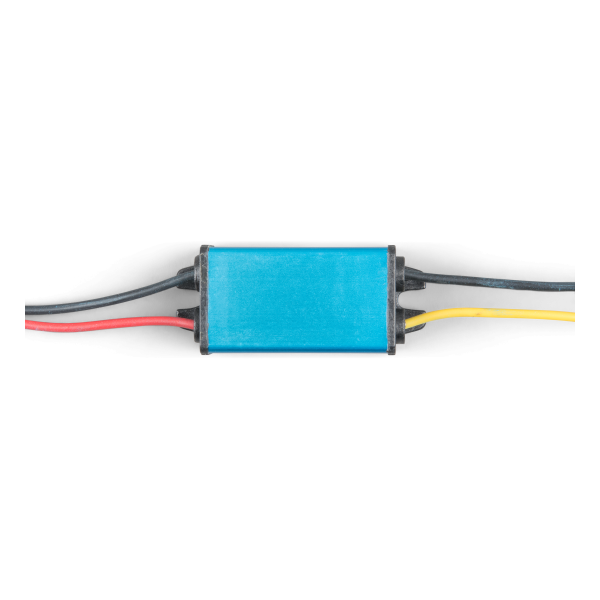

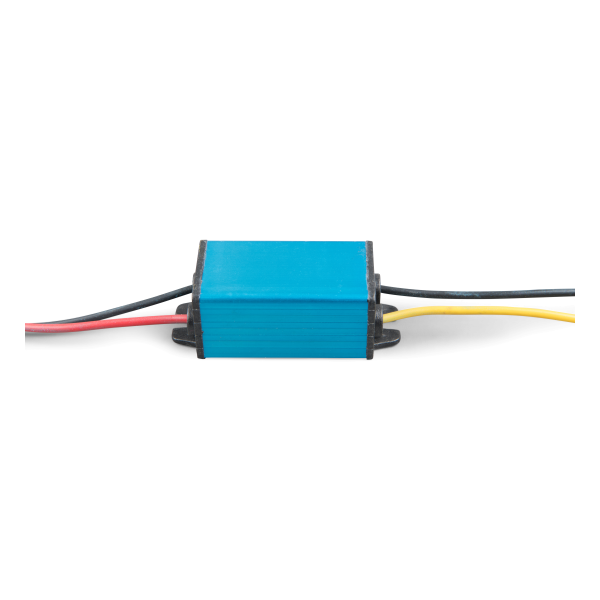

Orion IP67 24/12-5A (60W)
$ 94.000
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Available in 5 models
Orion IP67 24/12-5
Orion IP67 24/12-10
Orion IP67 24/12-20
Orion IP67 24/12-100
Orion IP67 12/24-50
| Peso | 0,2 lbs |
|---|---|
| Dimensiones | 3,3 × 4,1 × 1,2 in |
| Dimensions (L x W x H mm) | 85 x 105 x 30 mm |
| Input Voltage Range | [15, 40] V |
| Under Voltage Shutdown | 13 V |
| Under Voltage Restart | 14 V |
| Output Voltage | 12 V |
| Output Voltage Tolerance | 3 % |
| Ripple And Noise | 0.075 Vmpp |
| Cont Output Current Rating40 | 5 A |
| Output Derating Above40 | 3 % |
| No Load Current Consumption | 1 mA |
| Max Efficiency | 93 |
| Protections | Overload,Short-circuit proof,Reverse polarity (fuse) |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Protection Category | IP67 |
| Weight | 0.05 kg |
| Height | 25 mm |
| Width | 43 mm |
| Depth | 20 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Vibration | IEC68-2-6:10-150Hz/1.0G |
| Battery Voltage | |
| DC Output Voltage | |
| Charge Current | |
| IP Rating | |
| Isolated | |
| DC Input Voltage |
