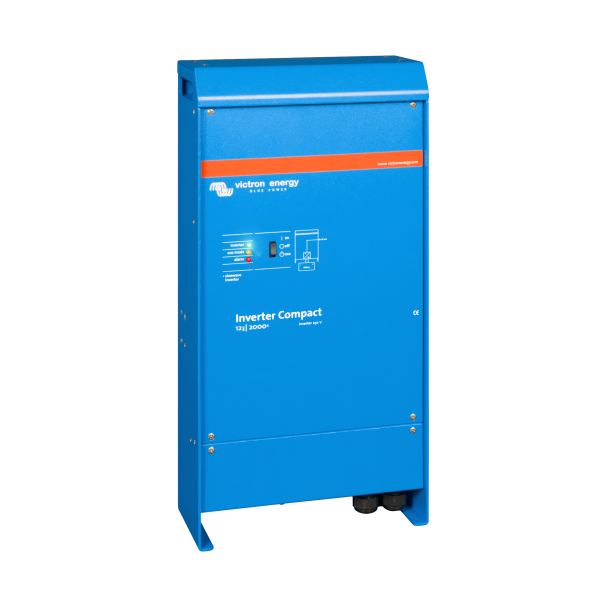

Inverter Compact 12/2000 230V VE.Bus
$ 2.766.000
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
The Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
| Peso | 28,7 lbs |
|---|---|
| Dimensiones | 8,7 × 13 × 24,4 in |
| Dimensions (L x W x H mm) | 220 x 330 x 620 mm |
| Battery Voltage Nominal | 12 V |
| DC Input Voltage Range | [7.5, 17] V |
| AC Output Voltage | 230 V |
| Frequency Select | 50Hz or 60Hz |
| Cont Power V A25 | 2,000 VA |
| Cont Power W25 | 1,600 W |
| Cont Power W40 | 1,450 W |
| Cont Power W65 | 1,000 W |
| Peak Power Rating | 4,000 W |
| Max Efficiency | 92 % |
| Zero Load Power | 9 W |
| Zero Load Power A E S | 7 W |
| Zero Load Power Search | 3 W |
| Programmable Relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Remote On Off Terminal | 1 |
| Communication Port | VE.Bus |
| Fully Programable | 1 |
| Parallel3phase | 1 |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Cooling | 1 |
| Max Humidity | 95 % |
| Battery Connection | M8 bolts |
| Ac Connection | Spring clamp |
| Remote Terminal | Screw terminal two pole |
| Relay Terminal | Screw terminal 3-pole |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Protection Category | IP21 |
| Weight | 12 kg |
| Height | 520 mm |
| Width | 255 mm |
| Depth | 125 mm |
| Safety | EN-IEC 60335-1 |
| E M C | EN 55014-1,EN 55014-2 |
| Battery Voltage | |
| AC Output Voltage |
