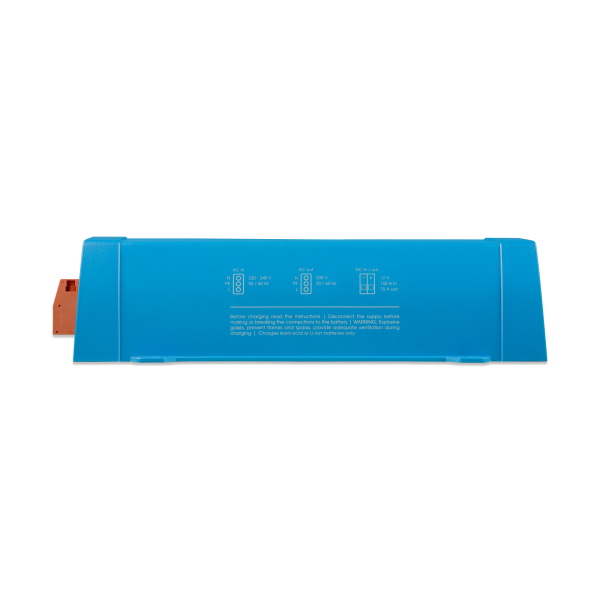

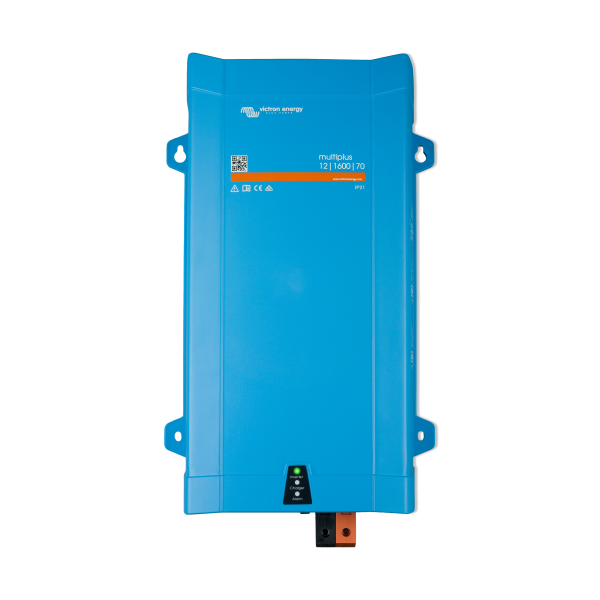

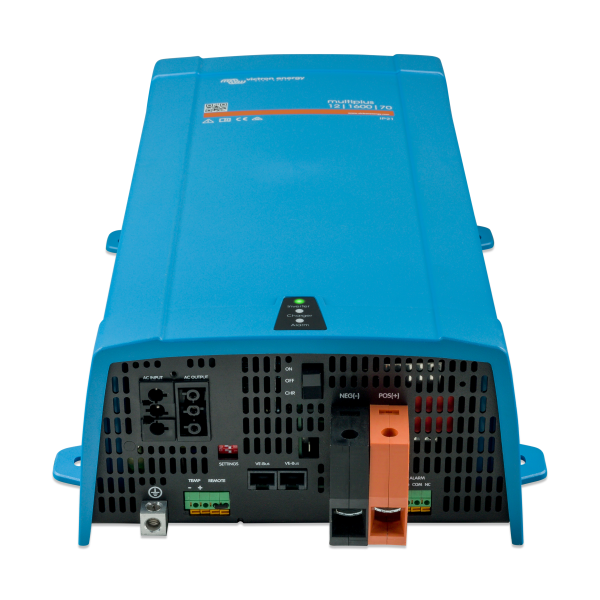

MultiPlus 12/1600/70-16 230V VE.Bus
$ 2.734.000
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
| Peso | 22 lbs |
|---|---|
| Dimensiones | 11,4 × 20,1 × 7,5 in |
| Dimensions (L x W x H mm) | 290 x 510 x 190 mm |
| Battery Voltage Nominal | 12 V |
| Power Control | 1 |
| Power Assist | 1 |
| Parallel Operation | 1 |
| Three Phase Operation | 1 |
| Transfer Switch Current Rating | 35 A |
| DC Input Voltage Range | [9.5, 17] VDC |
| AC Output Voltage | 230 VAC |
| AC Output Frequency | 50 Hz |
| Cont Power V A25 | 1,600 VA |
| Cont Power W25 | 1,300 W |
| Cont Power W40 | 1,100 W |
| Cont Power W65 | 800 W |
| Peak Power Rating | 2,800 W |
| Max Efficiency | 93 % |
| Zero Load Power | 10 W |
| Zero Load Power Search | 3 W |
| AC Input Voltage Range | [187, 265] VAC |
| AC Input Frequency Range | [45, 65] Hz |
| Charge Voltage Absorption | 14.4 VDC |
| Charge Voltage Float | 13.8 VDC |
| Charge Voltage Storage | 13.2 VDC |
| Charge Algorithm | Adaptive, 4-stage |
| Maximum Battery Charge Current | 70 A |
| Starter Battery Charge Output | 1 |
| Starter Battery Charge Current | 1 A |
| Temperature Sensor | Included |
| Programmable Relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Communication Port | VE.Bus |
| Communication Port General | 1 |
| Remote Terminal | On / Off |
| D IP Switches Programming | 1 |
| Computer Programming | 1 |
| Internal DC Fuse Rating | 200 A |
| Fan Assist Cooling | 1 |
| Max Humidity | 95 % |
| Max Altitude | 2,000 m |
| AC Connection Terminal Type | G-ST18i plug |
| Remote Terminal Type | Screw terminal two pole |
| Relay Terminal | Screw terminal 3-pole |
| Vebus Terminal Type | Two RJ45 terminals |
| Material | Steel |
| Colour | Blue (RAL 5012) |
| Protection Category | IP21 |
| Weight | 10.2 kg |
| Height | 470 mm |
| Width | 265 mm |
| Depth | 120 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Automotive Directive | ECE R10-5 |
| Anti Islanding Standard | Please consult the certificates on our website |
| Ups Standard | Please consult the certificates on our website |
| Battery Voltage | |
| AC Output Voltage |
