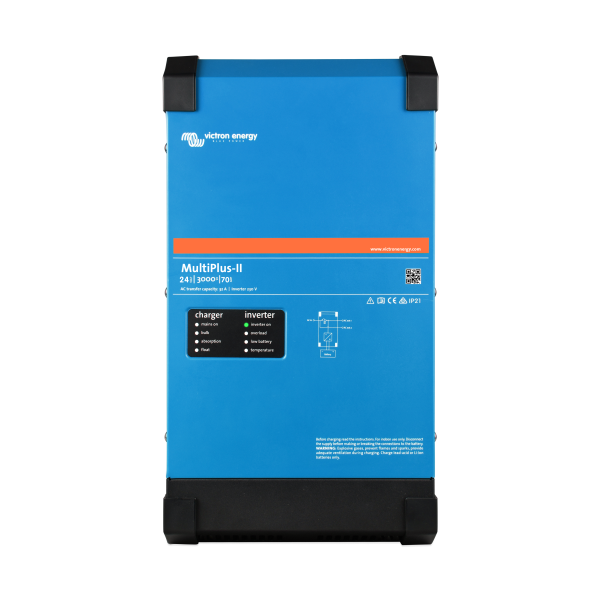

MultiPlus-II 24/3000/70-32 230V
$ 3.854.000
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. PowerControl allows the MultiPlus-II to prevent grid or generator overload, while PowerAssist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.
Note: for a short period of time this product was called MultiGrid-II.
| Peso | 41,1 lbs |
|---|---|
| Dimensiones | 13,8 × 22,8 × 9,4 in |
| Dimensions (L x W x H mm) | 350 x 580 x 240 mm |
| Battery Voltage Nominal | 24 V |
| Power Control | 1 |
| Power Assist | 1 |
| Parallel Operation | 1 |
| Three Phase Operation | 1 |
| Transfer Switch Current Rating | 32 A |
| Max Ac Input Current | 32 A |
| DC Input Voltage Range | [19, 33] VDC |
| AC Output Voltage | 230 VAC |
| AC Output Frequency | 50 Hz |
| Cont Power V A25 | 3,000 VA |
| Cont Power W25 | 2,400 W |
| Cont Power W40 | 2,200 W |
| Cont Power W65 | 1,700 W |
| Peak Power Rating | 5,500 W |
| Max App Feedin Power | 3,000 VA |
| Max Efficiency | 94 % |
| Zero Load Power | 13 W |
| Zero Load Power A E S | 9 W |
| Zero Load Power Search | 3 W |
| AC Input Voltage Range | [187, 265] VAC |
| AC Input Frequency Range | [45, 65] Hz |
| Charge Voltage Absorption | 28.8 VDC |
| Charge Voltage Float | 27.6 VDC |
| Charge Voltage Storage | 26.4 VDC |
| Charge Algorithm | Adaptive, 4-stage |
| Maximum Battery Charge Current | 70 A |
| Temperature Sensor | Included |
| Auxiliary Output | 1 |
| External Ac Current Sensor | 50A or 100A (optional) |
| Programmable Relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Communication Port | VE.Bus |
| Communication Port General | 1 |
| Remote Terminal | On / Off / Charger only |
| Computer Programming | 1 |
| Fan Assist Cooling | 1 |
| Max Humidity | 95 % |
| Max Altitude | 2,000 m |
| Battery Connection Terminal Type | M8 bolts |
| Remote Terminal Type | Screw terminal two pole |
| Relay Terminal | Screw terminal 3-pole |
| Vebus Terminal Type | Two RJ45 terminals |
| Material | Steel |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 |
| Weight | 19 kg |
| Height | 499 mm |
| Width | 268 mm |
| Depth | 141 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Anti Islanding Standard | Please consult the certificates on our website |
| Ups Standard | Please consult the certificates on our website |
| Battery Voltage | |
| AC Output Voltage |
