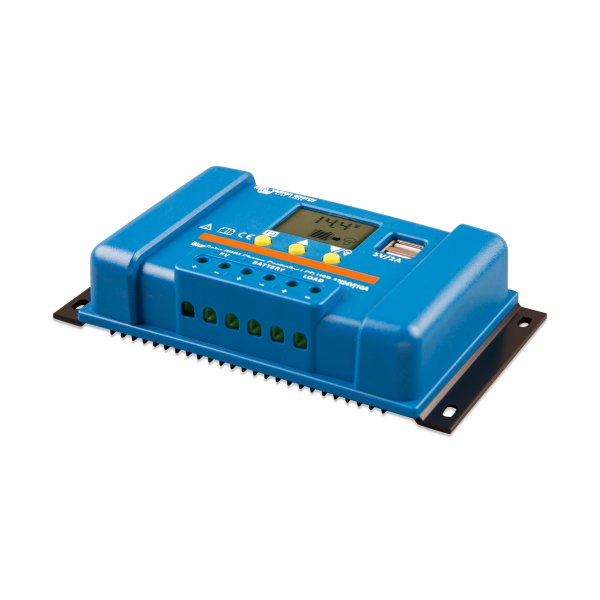

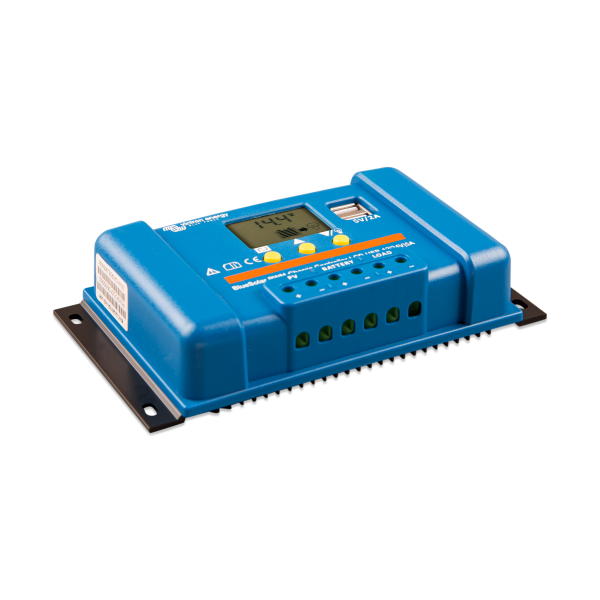

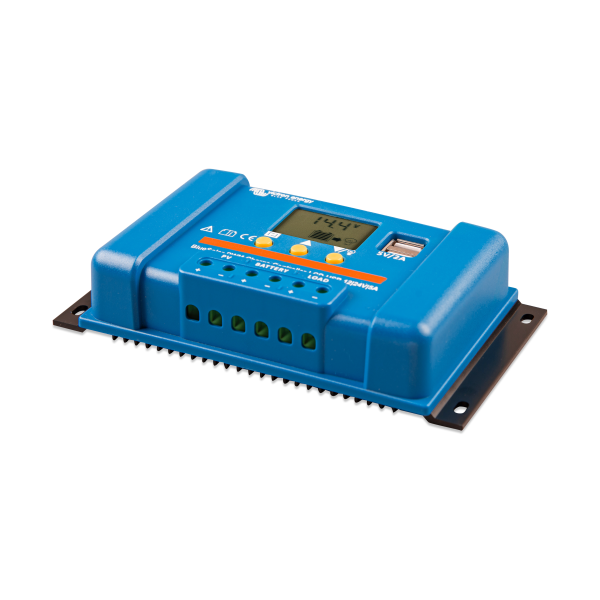

BlueSolar PWM DUO-LCD&USB 12/24V-20A
$ 246.000
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee

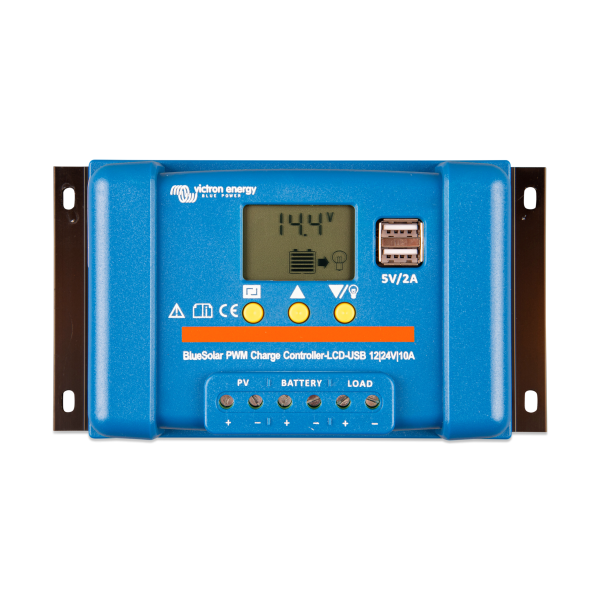

BlueSolar PWM-LCD&USB
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function, fully programmable
- Three stage battery charging (bulk, absorption, float), fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery

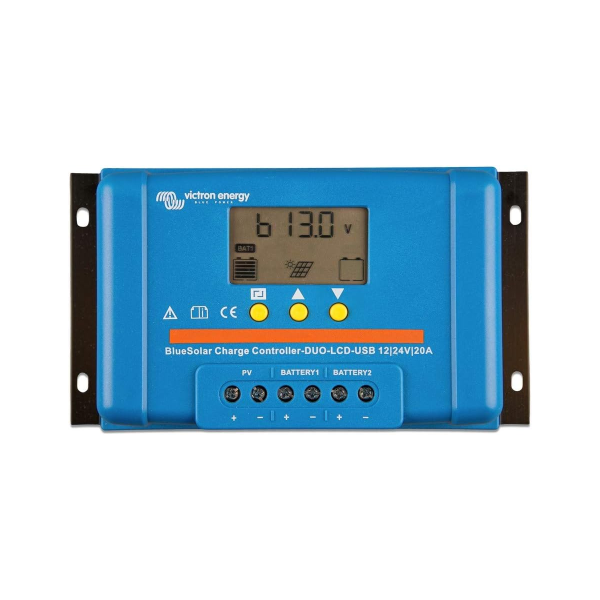

BlueSolar PWM DUO-LCD&USB
All the above-mentioned functions, plus:
- Charges two separate batteries
- Programmable charge current ratio
- External Temperature sensor
| Peso | 0,8 lbs |
|---|---|
| Dimensiones | 4,7 × 8,3 × 2,3 in |
| Dimensions (L x W x H mm) | 120 x 210 x 58 mm |
| Battery Voltage | 12V / 24V (automatic detection) |
| Rated Charge Current | 20 A |
| Automatic Load Disconnect | 1 |
| Max Solar Voltage | 28V / 55V |
| Pv Array12v | Solar panel with 36 cells |
| Pv Array24v | Solar panel with 72 cells,Two solar panles with 36 cells in series |
| Self Consumption | 10 mA |
| Load Output | Two USB ports |
| Protections | Battery reverse polarity (fuse),Excessive temperature |
| Overload Protection130 | Shutdown after 60 seconds |
| Overload Protection160 | Shutdown after 5 seconds |
| Overload Protection S C | Imediate shutdown |
| Temperature Sensor | Yes, included |
| Remote Panel | No |
| Grounding | Common negative |
| Max Humidity | 95 % |
| Charge Voltage Absorption | 14.4V / 28.8V |
| Charge Voltage Float | 13.7V / 27.4V |
| Low Voltage Load Disconnect | 10.5V / 21V |
| Second Battery Output | Yes |
| Number Of Usb Ports | 2 |
| USB Voltage | 5 V |
| USB Current | 2 A |
| Colour | Blue (RAL 5012) |
| Protection Category | IP20 |
| Weight | 0.3 kg |
| Height | 101.5 mm |
| Width | 184 mm |
| Depth | 47.1 mm |
| Safety | EN-IEC 62109-1 |
| Emission | EN-IEC 61000-6-1,EN-IEC 61000-6-3,ISO 7637-2 |
| Solar Charger Type |
