BlueSolar PWM-Pro Charge Controller 12/24V-10A
$ 121.000
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee

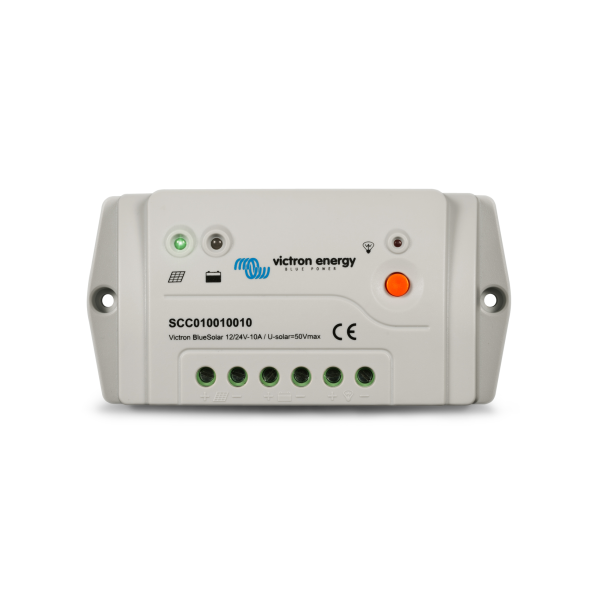

BlueSolar PWM-Pro
The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.

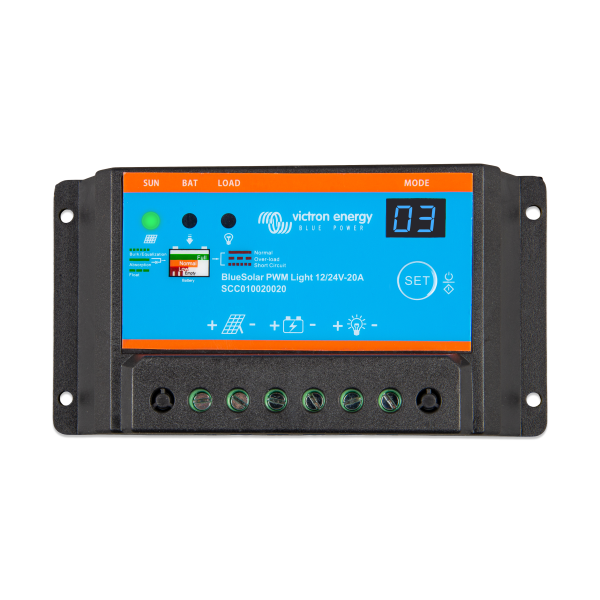

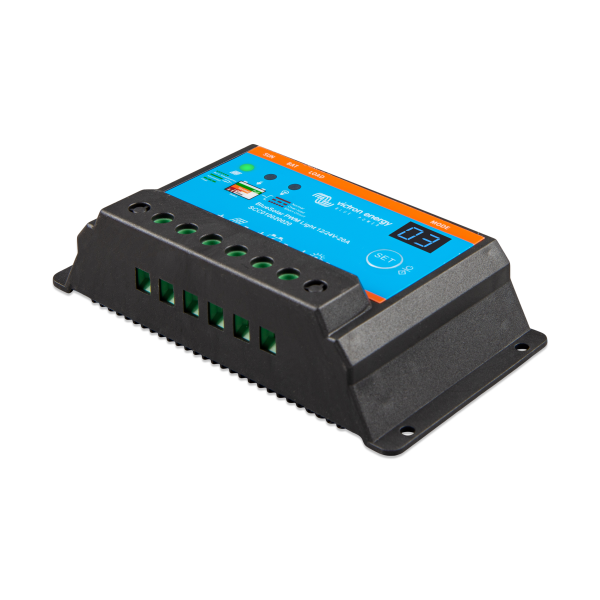

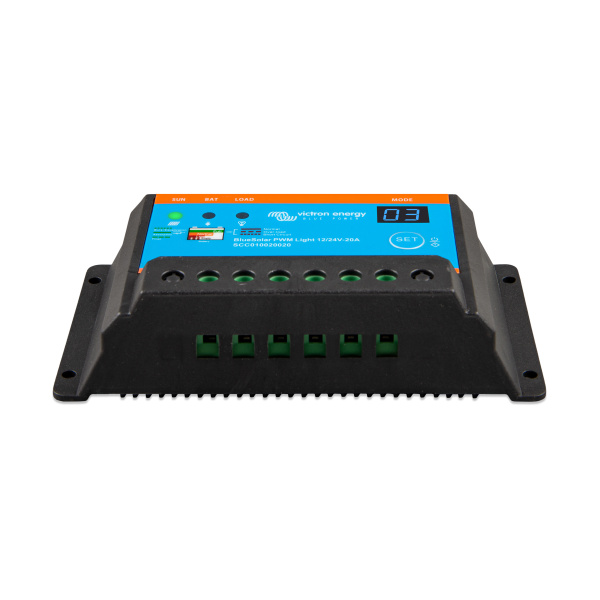

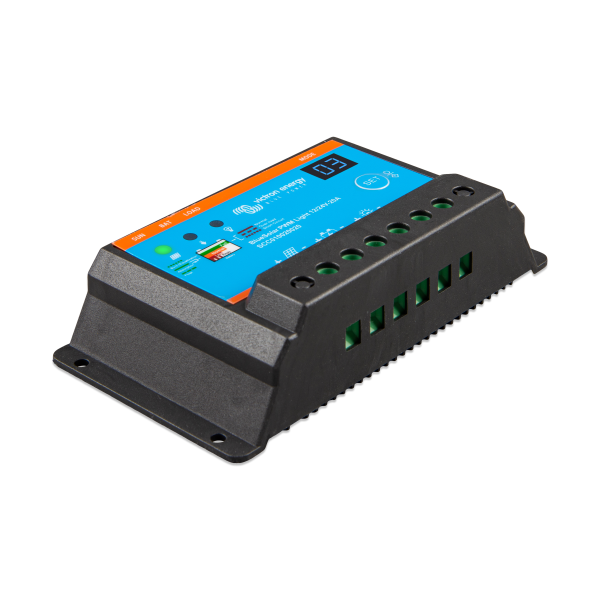

BlueSolar PWM-Light
• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details
| Peso | 0,4 lbs |
|---|---|
| Dimensiones | 3,3 × 5,5 × 1,8 in |
| Dimensions (L x W x H mm) | 85 x 140 x 45 mm |
| Battery Voltage | 12V / 24V (automatic detection) |
| Rated Charge Current | 10 A |
| Automatic Load Disconnect | 1 |
| Max Solar Voltage | 28V / 55V |
| Pv Array12v | Solar panel with 36 cells |
| Pv Array24v | Solar panel with 72 cells,Two solar panles with 36 cells in series |
| Self Consumption | 10 mA |
| Load Output | Manual control + low voltage disconnect |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| Temperature Sensor | Yes, optional (artice SCC940100100) |
| Remote Panel | Optional (article SCC900300000) |
| Grounding | Common positive |
| Max Humidity | 98 % |
| Charge Voltage Absorption | 14.4V / 28.8V |
| Charge Voltage Float | 13.8V / 27.6V |
| Charge Voltage Equalization | 14.6V / 29.2V |
| Low Voltage Load Disconnect | 11.1V / 22.2V |
| Low Voltage Load Reconnect | 12.6V / 25.2V |
| Colour | Grey |
| Protection Category | IP30 |
| Weight | 0.13 kg |
| Height | 138 mm |
| Width | 70 mm |
| Depth | 37 mm |
| Safety | EN-IEC 62109-1 |
| Emission | EN-IEC 61000-6-1, EN-IEC 61000-6-2,ISO 7637-2 |
| Solar Charger Type |
