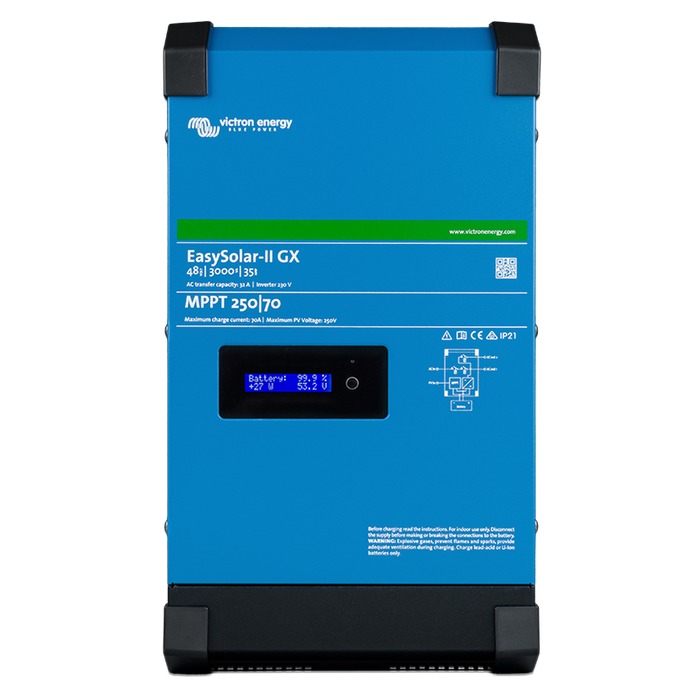

EasySolar-II 24/3000/70-32 MPPT 250/70 GX
In stock
$ 1.562
In stock
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Additional information
| Weight | 25,4 kg |
|---|---|
| Dimensions | 35 × 59 × 32,5 cm |
| batteryVoltageNominal | 24 V |
| powerControl | 1 |
| powerAssist | 1 |
| transferSwitchCurrentRating | 32 A |
| maxAcInputCurrent | 32 A |
| auxAcCurrent | 32 A |
| dCInputVoltageRange | [19, 33] VDC |
| aCOutputVoltage | 230 VAC |
| aCOutputFrequency | 50 Hz |
| contPowerVA25 | 3, 000 VA |
| contPowerW25 | 2, 400 W |
| contPowerW40 | 2, 200 W |
| contPowerW55 | 1, 700 W |
| peakPowerRating | 5, 500 W |
| maxAppFeedinPower | 3, 000 VA |
| maxEfficiency | 94 % |
| zeroLoadPower | 13 W |
| zeroLoadPowerAES | 9 W |
| zeroLoadPowerSearch | 3 W |
| aCInputVoltageRange | [187, 265] VAC |
| aCInputFrequencyRange | [45, 65] Hz |
| chargeVoltageAbsorption | 28.8 VDC |
| chargeVoltageFloat | 27.6 VDC |
| chargeVoltageStorage | 26.4 VDC |
| chargeAlgorithm | Adaptive, 4-stage |
| maximumBatteryChargeCurrent | 70 A |
| temperatureSensor | Included |
| SolarChargerModel | MPPT 250/70-Tr |
| maxOutputCurrentSolar | 70 A |
| maxPvPower | 2, 000 W |
| maxPvOpenCircuitVoltage | 250 V |
| maxiEfficiencySolarCharger | 99 % |
| selfConsumption | 20 mA |
| chargeVoltageAbsorption1 | 28.8 VDC |
| chargeVoltageFloat1 | 46.4 VDC |
| chargeAlgorithm1 | Adaptive, 4-stage |
| AuxiliaryOutput | 1 |
| externalAcCurrentSensor | 50A or 100A (optional) |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
| communicationPort | VE.Direct, VE.Bus, VE.Can, BMS-Can, WiFi, Ethernet |
| remoteTerminal | On / Off |
| computerProgramming | 1 |
| fanAssistCooling | 1 |
| maxHumidity | 95 % |
| batteryConnectionTerminalType | M8 bolts |
| pVConnectionTerminalType | M6 bolts |
| remoteTerminalType | Screw terminal two pole |
| relayTerminal | Screw terminal 3-pole |
| vebusTerminalType | Two RJ45 terminals |
| material | Steel |
| colour | Blue (RAL 5012) |
| protectionCategory | IP21 |
| weight | 26 kg |
| height | 499 mm |
| width | 268 mm |
| depth | 237 mm |
| safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| emissionImmunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| antiIslandingStandard | See our website |
