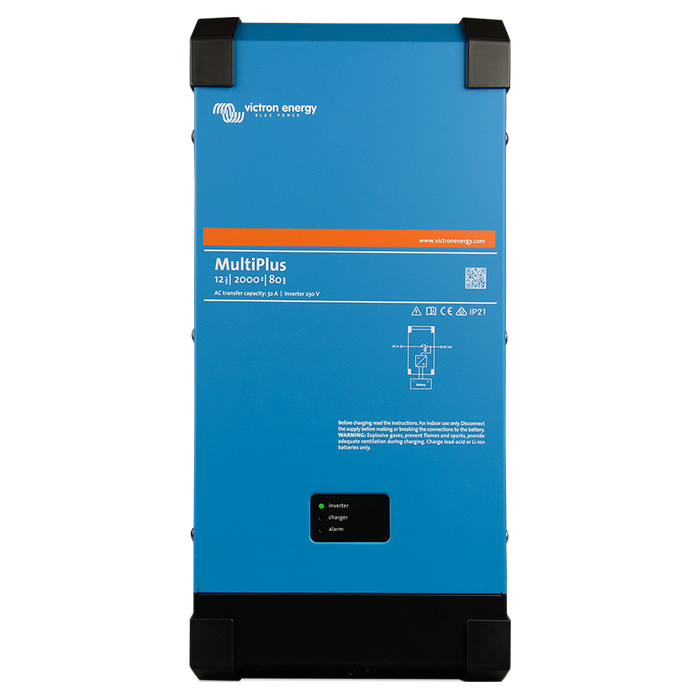

MultiPlus 12/2000/80-32 230V VE.Bus
In stock
$ 1.204
In stock
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Additional information
| Weight | 15,5 kg |
|---|---|
| Dimensions | 33 × 59 × 24 cm |
| batteryVoltageNominal | 12 V |
| powerControl | 1 |
| powerAssist | 1 |
| parallelOperation | 1 |
| threePhaseOperation | 1 |
| transferSwitchCurrentRating | 230 A |
| dCInputVoltageRange | [9.5, 17] VDC |
| aCOutputVoltage | 230 VAC |
| aCOutputFrequency | 50 Hz |
| contPowerVA25 | 1, 600 VA |
| contPowerW25 | 1, 300 W |
| contPowerW40 | 1, 100 W |
| contPowerW65 | 800 W |
| peakPowerRating | 2, 800 W |
| maxEfficiency | 93 % |
| zeroLoadPower | 10 W |
| zeroLoadPowerSearch | 3 W |
| aCInputVoltageRange | [187, 265] VAC |
| aCInputFrequencyRange | [45, 65] Hz |
| chargeVoltageAbsorption | 14.4 VDC |
| chargeVoltageFloat | 13.8 VDC |
| chargeVoltageStorage | 13.2 VDC |
| chargeAlgorithm | Adaptive, 4-stage |
| maximumBatteryChargeCurrent | 70 A |
| starterBatteryChargeOutput | 1 |
| temperatureSensor | Included |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
| communicationPort | VE.Bus |
| communicationPortGeneral | 1 |
| remoteTerminal | On / Off |
| computerProgramming | 1 |
| internalDCFuseRating | 200 A |
| fanAssistCooling | 1 |
| maxHumidity | 95 % |
| maxAltitude | 2, 000 m |
| aCConnectionTerminalType | G-ST18i plug |
| remoteTerminalType | Screw terminal two pole |
| relayTerminal | Screw terminal 3-pole |
| vebusTerminalType | One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports |
| material | Steel chassis with ABS cover |
| colour | Blue (RAL 5012) |
| protectionCategory | IP21 |
| weight | 10.2 kg |
| height | 470 mm |
| width | 265 mm |
| depth | 120 mm |
| safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| emissionImmunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| automotiveDirective | ECE R10-5 |
| antiIslandingStandard | Please consult the certificates on our website |
| upsStandard | Please consult the certificates on our website |
