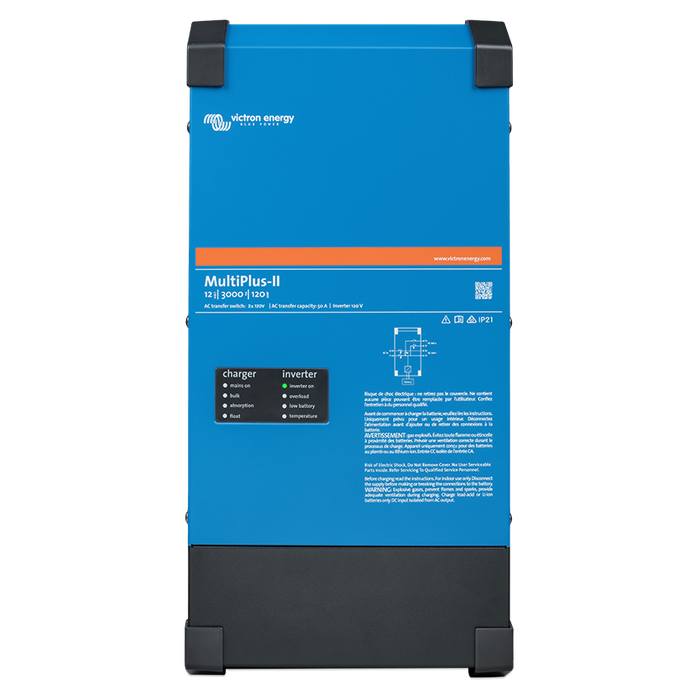

MultiPlus-II 12/3000/120-32 230V
In stock
$ 1.512
In stock
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this product was called MultiGrid-II.
Additional information
| Weight | 20,5 kg |
|---|---|
| Dimensions | 34,5 × 63,5 × 24 cm |
| batteryVoltageNominal | 12 V |
| powerControl | 1 |
| powerAssist | 1 |
| parallelOperation | 1 |
| threePhaseOperation | 1 |
| transferSwitchCurrentRating | 32 A |
| maxAcInputCurrent | 32 A |
| dCInputVoltageRange | [9.5, 17] VDC |
| aCOutputVoltage | 230 VAC |
| aCOutputFrequency | 50 Hz |
| contPowerVA25 | 3, 000 VA |
| contPowerW25 | 2, 400 W |
| contPowerW40 | 2, 200 W |
| contPowerW65 | 1, 700 W |
| peakPowerRating | 5, 500 W |
| maxAppFeedinPower | 3, 000 VA |
| maxEfficiency | 93 % |
| zeroLoadPower | 13 W |
| zeroLoadPowerAES | 9 W |
| zeroLoadPowerSearch | 3 W |
| aCInputVoltageRange | [187, 265] VAC |
| aCInputFrequencyRange | [45, 65] Hz |
| chargeVoltageAbsorption | 14.4 VDC |
| chargeVoltageFloat | 28.8 VDC |
| chargeVoltageStorage | 57.6 VDC |
| chargeAlgorithm | Adaptive, 4-stage |
| maximumBatteryChargeCurrent | 120 A |
| temperatureSensor | Included |
| AuxiliaryOutput | 1 |
| externalAcCurrentSensor | 50A or 100A (optional) |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
| communicationPort | VE.Bus |
| communicationPortGeneral | 1 |
| remoteTerminal | On / Off / Charger only |
| computerProgramming | 1 |
| fanAssistCooling | 1 |
| maxHumidity | 95 % |
| maxAltitude | 2, 000 m |
| batteryConnectionTerminalType | M8 bolts |
| remoteTerminalType | Screw terminal two pole |
| relayTerminal | Screw terminal 3-pole |
| vebusTerminalType | Two RJ45 terminals |
| material | Steel |
| colour | Blue (RAL 5012) |
| weight | 19 kg |
| height | 546 mm |
| width | 275 mm |
| depth | 147 mm |
| safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| emissionImmunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| antiIslandingStandard | Please consult the certificates on our website |
| upsStandard | Please consult the certificates on our website |
