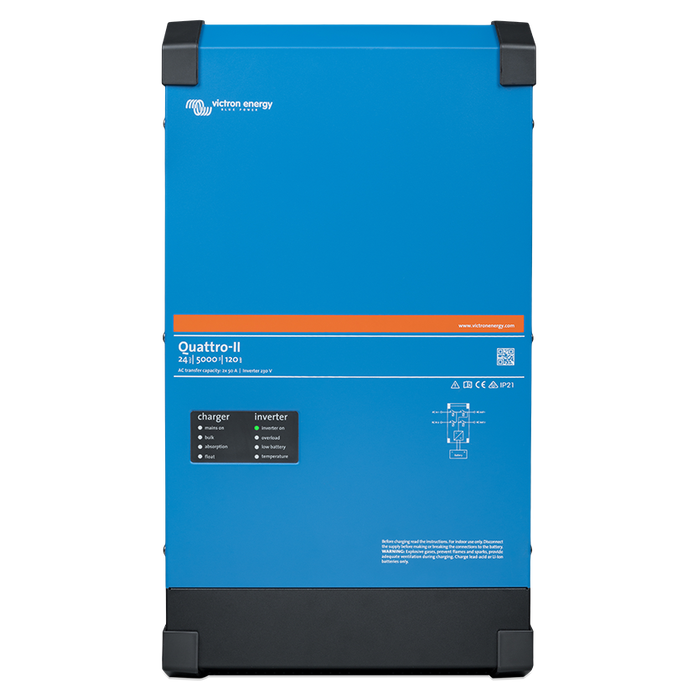

Quattro-II 48/5000/70-50/50 230V
In stock
$ 1.531
In stock
Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Additional information
| Weight | 28,35 kg |
|---|---|
| Dimensions | 44 × 53 × 34 cm |
| batteryVoltageNominal | 48 V |
| powerControl | 1 |
| powerAssist | 1 |
| parallelOperation | 1 |
| threePhaseOperation | 1 |
| integratedTransferSwitch | 1 |
| numberAcInputs | 2 |
| aCInputVoltageRange2 | [187, 265] V |
| aCInputFrequencyRange | [45, 65] Hz |
| frequencySelect | 50Hz or 60Hz |
| maxFeedTroughCurrent | 2x 50A |
| dCInputVoltageRange | [38, 66] VDC |
| aCOutputVoltage | 230 VAC |
| aCOutputFrequency | 50 Hz |
| contPowerVA25 | 5, 000 VA |
| contPowerW25 | 4, 000 W |
| contPowerW40 | 3, 700 W |
| peakPowerRating | 9, 000 W |
| maxAppFeedinPower | 5, 000 VA |
| maxEfficiency | 96 % |
| zeroLoadPower | 18 W |
| zeroLoadPowerAES | 12 W |
| zeroLoadPowerSearch | 2 W |
| chargeVoltageAbsorption | 57.6 VDC |
| chargeVoltageFloat | 55.2 VDC |
| chargeVoltageStorage | 52.8 VDC |
| chargeAlgorithm | Adaptive, 4-stage |
| maximumBatteryChargeCurrent | 70 A |
| temperatureSensor | Included |
| AuxiliaryOutput | 1 |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
| communicationPort | VE.Bus |
| communicationPortGeneral | 1 |
| remoteTerminal | On / Off |
| fanAssistCooling | 1 |
| maxHumidity | 95 % |
| maxAltitude | 2, 000 m |
| batteryConnectionTerminalType | M8 bolts (two for positive and two for negative connection) |
| remoteTerminalType | Screw terminal two pole |
| relayTerminal | Screw terminal 3-pole |
| vebusTerminalType | Two RJ45 terminals |
| material | Steel |
| colour | Blue (RAL 5012) |
| protectionCategory | IP21 |
| weight | 29 kg |
| height | 565 mm |
| width | 320 mm |
| depth | 148 mm |
| safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| emissionImmunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| antiIslandingStandard | Please consult the certificates on our website |
| upsStandard | Please consult the certificates on our website |
