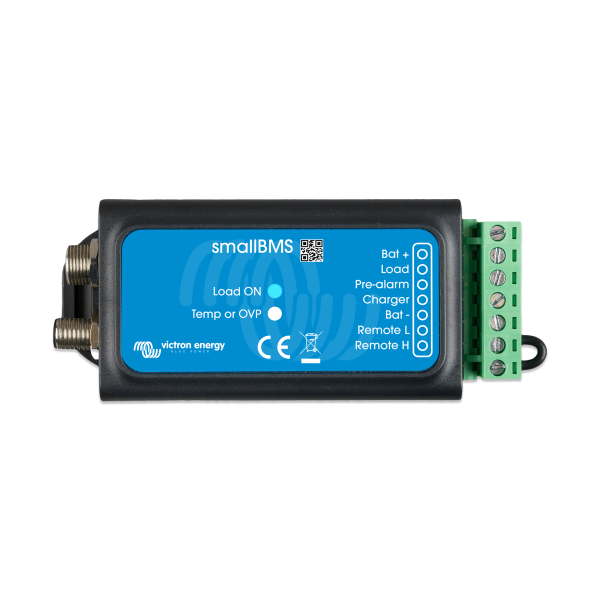

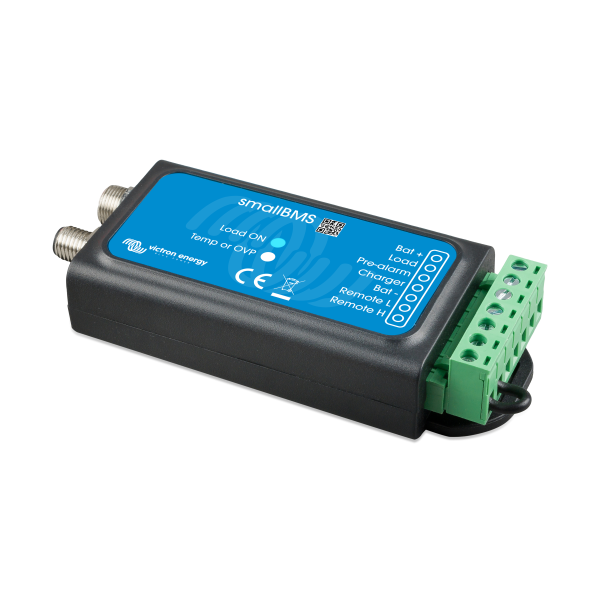

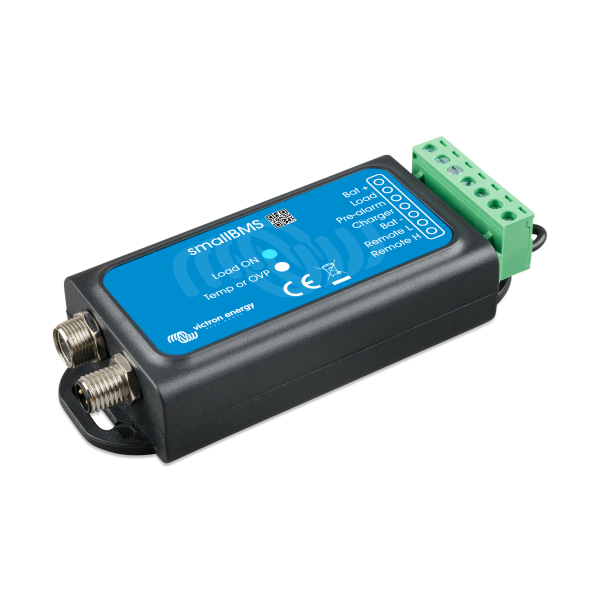

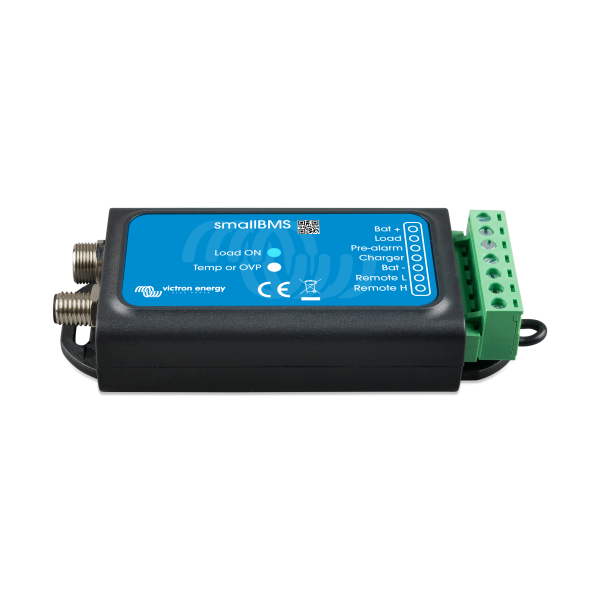

smallBMS

Name: smallBMS
Brand: Victron
SKU: BMS400100000
Availability: BackOrder

Victron

$55.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The smallBMS can replace the VE.Bus BMS V2 in several applications. It is however not suitable for use with VE.Bus MultiPlus and Quattro inverter/chargers: it has no VE.Bus interface. The smallBMS is intended for use with Victron Smart LiFePo4 batteries with M8 circular connectors.

The smallBMS has two outputs, similar to the VE.Bus BMS V2.

Weight	0.2 lbs
Dimensions	3.3 × 4.9 × 1.4 in
Dimensions (L x W x H mm)	85 x 125 x 35 mm
DC Input Operating Voltage Range	[8, 70] V
Current Consumption Rem On	2.2 mA
Current Consumption Low Cell	1.2 mA
Current Consumption Rem Off	1.2 mA
Load Disconnect Output Source	1 A
Charge Disconnect Output Source	10 mA
Pre Alarm Output	Normally free floating – In case of alarm: output voltage Vbat -0.1 V
Pre Alarm Current Rating	1 A
Remote Terminals	Remote L and Remote H Use modes: 1. ON when the L and H terminal are interconnected 2. ON when the L terminal is pulled to battery minus (V <3.5 V) 3. ON when the H terminal is high (2.9 V <VH <Vbat) 4. OFF in all other conditions
Max Humidity	95 %

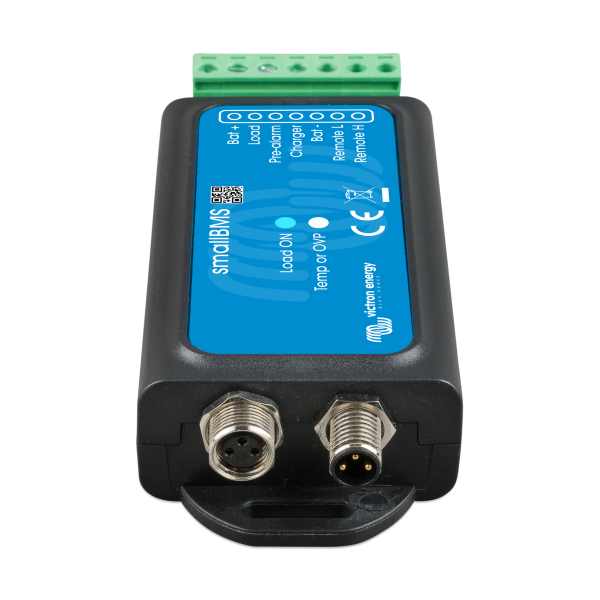

Battery Communication Terminals	Terminals with M8 circular connectors

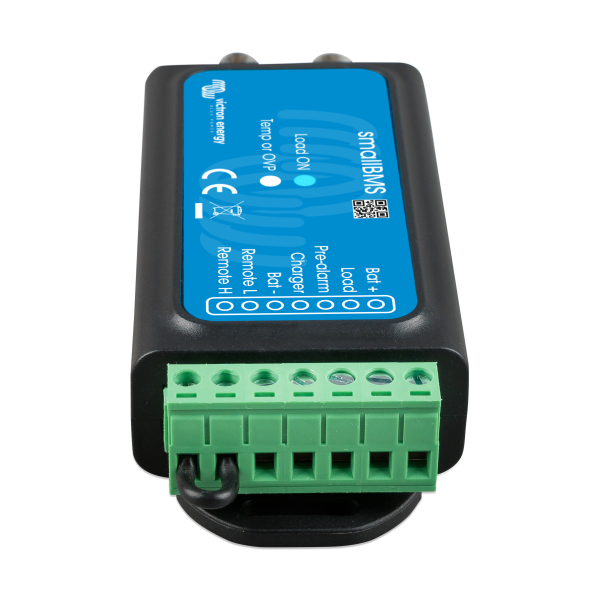

Input Output Terminals	Screw terminals
Power Supply Cable	Recommended fuse size 0.3 A – 2.5 (dependent on devices connected to Load disconnect and pre-alarm output)
Material	ABS
Colour	Matt black with a blue sticker
Protection Category	IP20
Weight	0.1 kg
Height	106 mm
Width	42 mm
Depth	23 mm
Safety	EN 60950
Emission	EN 55014-1,EN-IEC 61000-6-3
Immunity	EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive	ECE R10-4
