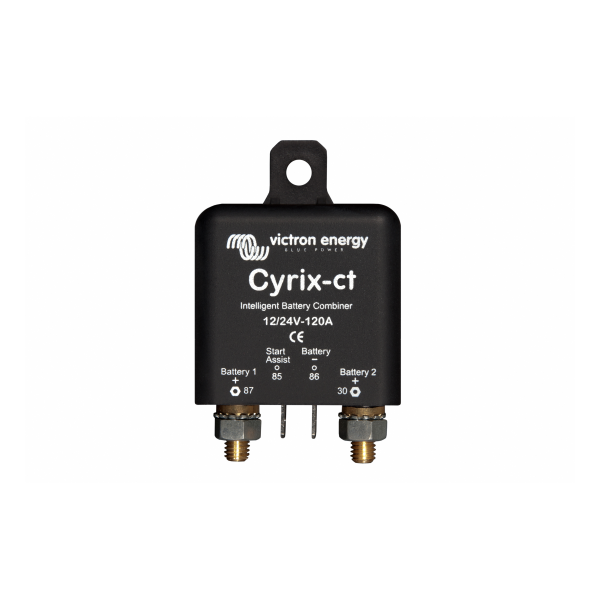

Cyrix-ct 12/24V-120A intelligent battery combiner Retail

Name: Cyrix-ct 12/24V-120A intelligent battery combiner Retail
Brand: Victron
SKU: CYR010120011R
Availability: BackOrder

Victron

$55.00

AvailableShips next business day

Congratulations! You got free shipping 🎉

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

Weight	0.2 lbs
Dimensions	2 × 4.3 × 6.3 in
Dimensions (L x W x H mm)	50 x 110 x 160 mm
Nominal Battery Voltage	12V or 24V (automatic detection)
Continuous Current	120 A
Cranking Current Rating	180 A
Connect Voltage	From 13 to 13.8V and 26 to 27.6V with intelligent trend detection
Disconnect Voltage	From 11 to 1.8V and 22 to 25.7V with
Current Consumption Open	4 mA
Current Consumption Closed12	220 mA
Current Consumption Closed24	120 mA
Start Assist	Yes (Cyrix remains engaged during 30 seconds)
Battery Terminals	M6 bolts
Start Assist Terminal	Faston 6.3 mm
Battery Negative Terminal	Faston 6.3 mm
Protection Category	IP54
Weight	0.11 kg
Height	46 mm
Width	46 mm
Depth	80 mm
