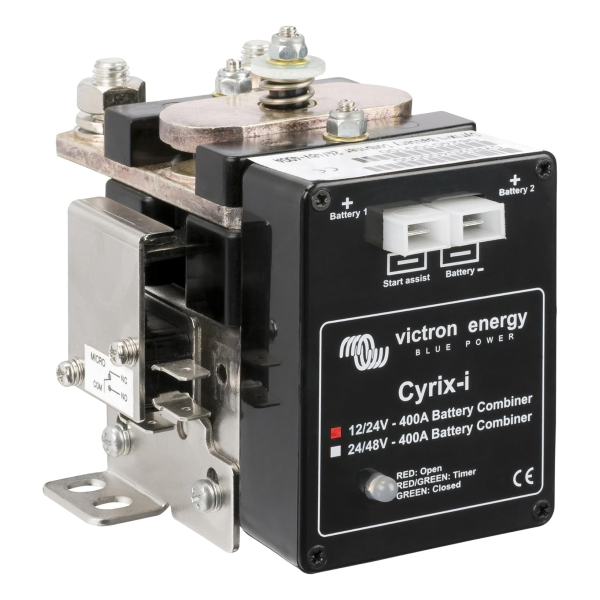

Cyrix-i 12/24V-400A intelligent battery combiner
Cyrix-i 12/24V-400A intelligent battery combiner

$289.00

Available on backorder

🔍
Cyrix-i 12/24V-400A intelligent battery combiner

Cyrix-i 12/24V-400A intelligent battery combiner

Victron

$289.00

AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

Weight 2 lbs
Dimensions 4.3 × 4.7 × 4.3 in
Dimensions (L x W x H mm)

110 x 120 x 110 mm
Nominal Battery Voltage

12V or 24V (automatic detection)
Input Voltage Range

[8, 36] V
Continuous Current

400 A
Peak Current Rating

2,000 A
Connect Profiles

See table on website
Over Voltage Disconnect

16V @12V / 32V @24V
Current Consumption Open

4 mA
Start Assist

Yes, 30 seconds
Remote Monitoring Switch

1
Led Status Indication

1
Weight

0.9 kg
Height

78 mm
Width

102 mm
Depth

110 mm
