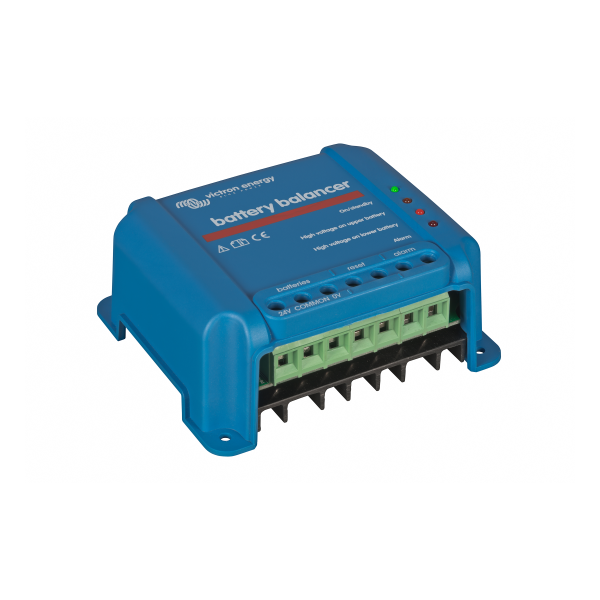

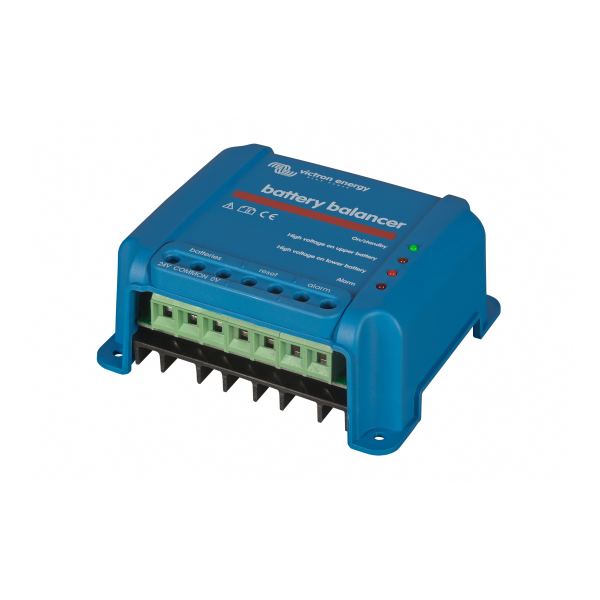

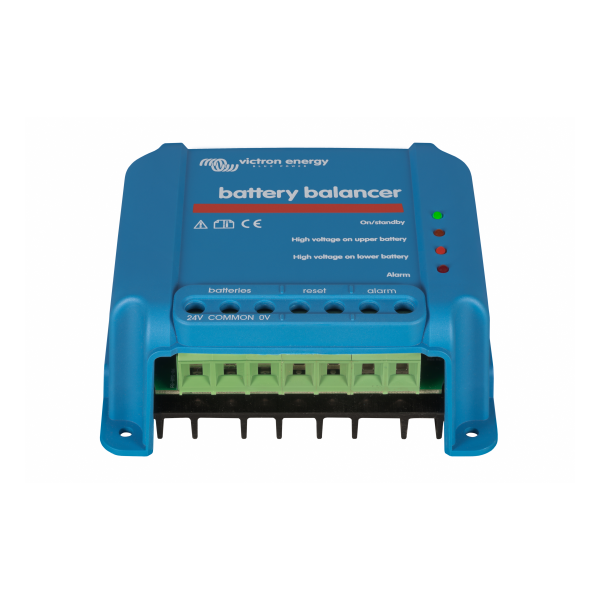

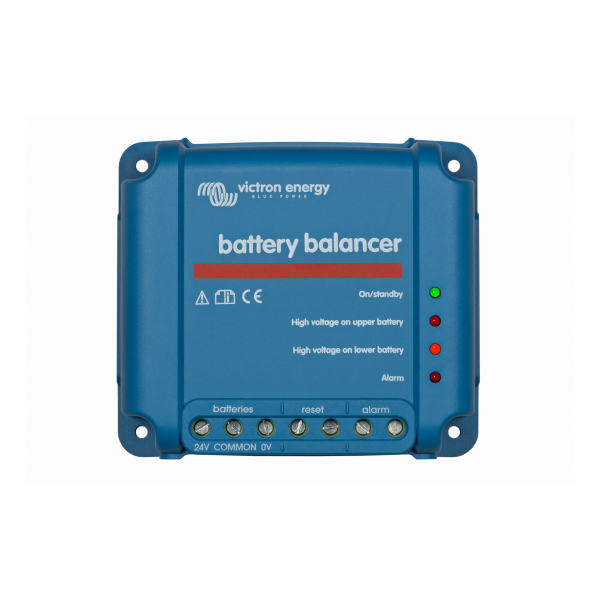

Battery Balancer

Name: Battery Balancer
Brand: Victron
SKU: BBA000100100
Availability: BackOrder

Victron

$54.00

AvailableShips next business day

Congratulations! You got free shipping 🎉

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.

Weight	0.7 lbs
Dimensions	5.9 × 8.3 × 2 in
Dimensions (L x W x H mm)	150 x 210 x 50 mm
Input Voltage Range	Up to 18V per battery, 36V total
Turn On Voltage Level	27.3
Turn Off Voltage Level	26.6
Current Draw When Off	0.7
Midpoint Deviation Balancing	50 mV
Maximum Balancing Current	0.7 A
Alarm Trigger Level	200 mV
Alarm Reset Level	140 mV
Alarm Relay Type	Normally open 60V / 1A
Alarm Relay Reset Terminal	Two terminals to connect a push button
Protections	Excessive temperature
Max Humidity	95 %
Colour	Blue (RAL 5012)
Protection Category	IP22
Weight	0.4 kg
Height	100 mm
Width	113 mm
Depth	47 mm
Safety	CSA 62368-1,UL 62368-1,EN 60950
Emission	EN-IEC 61000-6-3,EN 55014-1
Immunity	EN-IEC 61000-6-2,EN-IEC 61000-6-1,EN 55014-2
Automotive Directive	EN 50498
