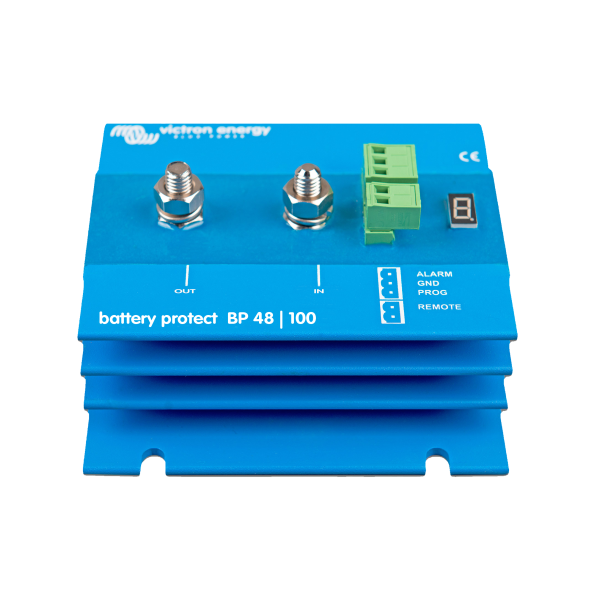

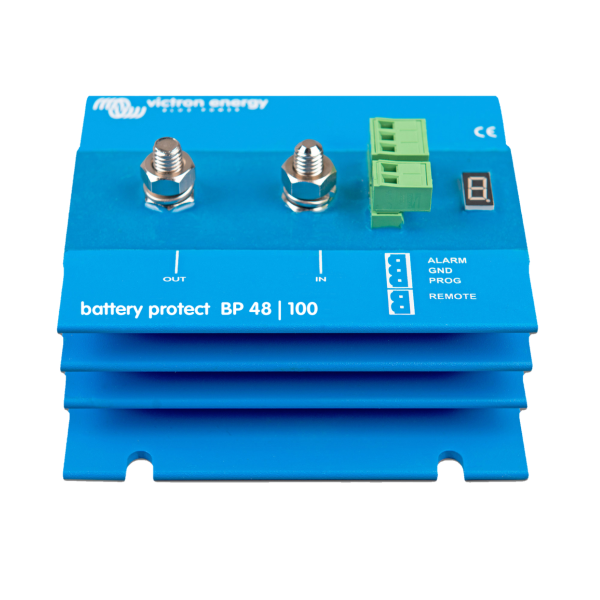

BatteryProtect 48V-100A

Name: BatteryProtect 48V-100A
Brand: Victron
SKU: BPR048100400
Availability: BackOrder

Victron

$134.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

Weight	1.8 lbs
Dimensions	2.8 × 2.8 × 7.5 in
Dimensions (L x W x H mm)	70 x 70 x 190 mm
Battery Voltage Nominal	48V
Operating Voltage Range	[24, 64] V
Maximum Continuous Load Current Rating40	100 A
Maximum Continuous Load Current Rating60	60 A
Peak Current Rating	250 A
Reverse Current	No
Current Consumption When On	2 mA
Current Consumption When Off	1.5 mA
Alarm Output Delay	12 s
Maximum Load Alarm Output	50 mA
Load Disconnect Delay	90 s
Load Reconnect Delay	30 s
Default Threshold Disengage	42
Default Threshold Engage	48
Remote On Off Terminal	1
Bluetooth	No
Protections	Output short-circuit
Battery And Load Terminals	M8 bolts
Remote Terminal	Screw terminal two pole
Alarm Terminal	Screw terminal 3-pole
Protection Category Connection Area	IP00
Protection Category Electronic Components	IP67
Weight	0.8 kg
Height	62 mm
Width	123 mm
Depth	120 mm
