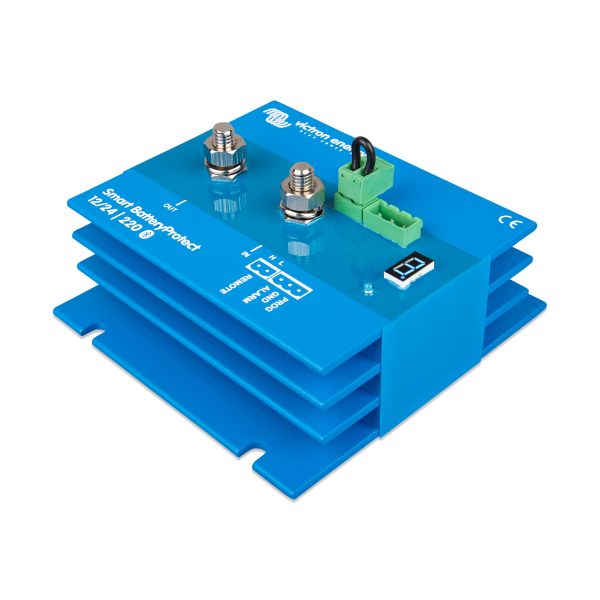

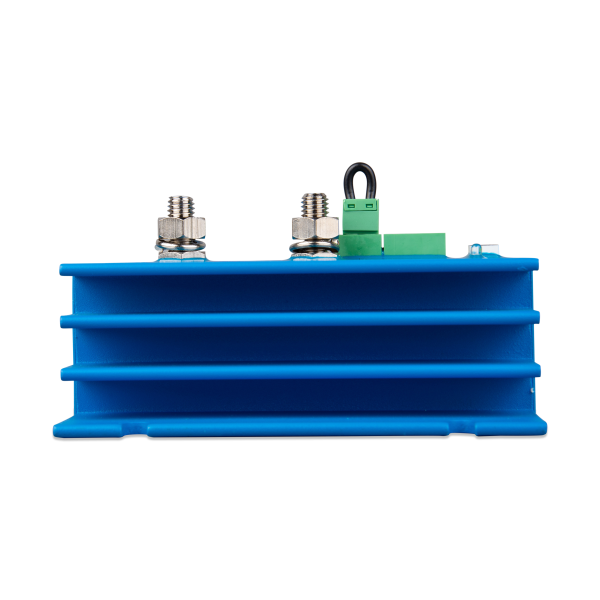

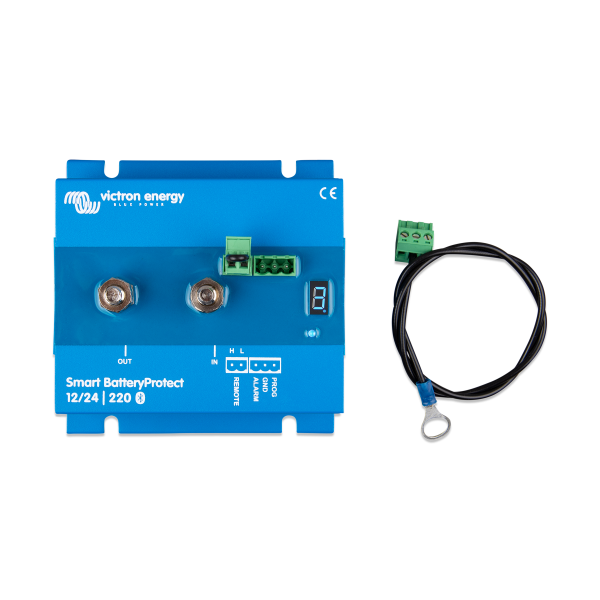

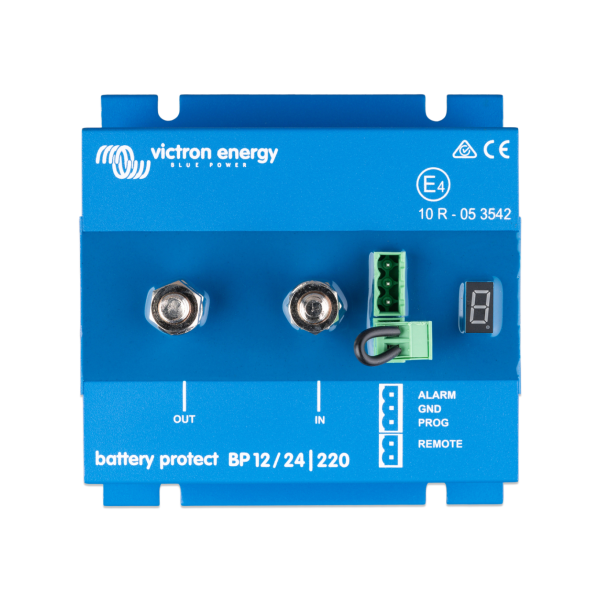

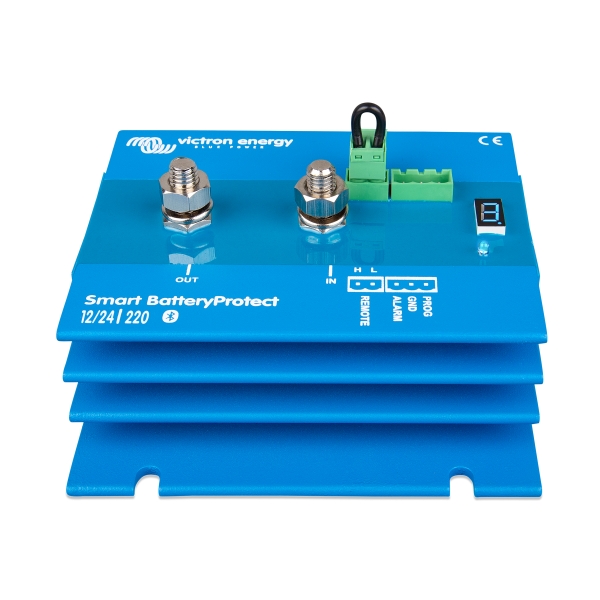

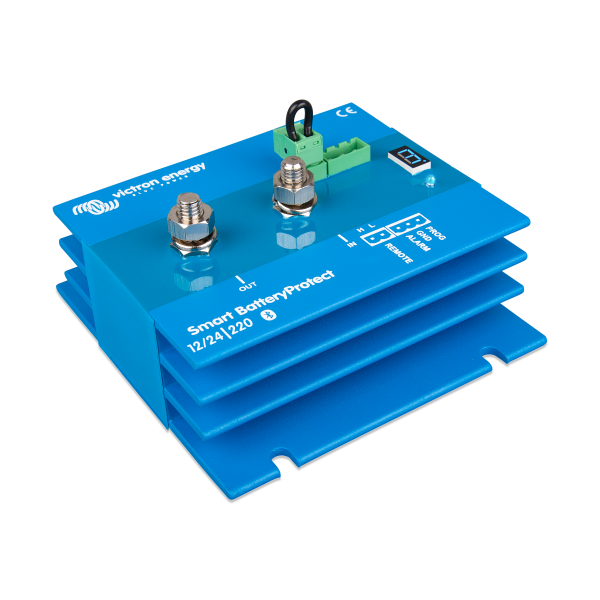

Smart BatteryProtect 12/24V-220A

Name: Smart BatteryProtect 12/24V-220A
Brand: Victron
SKU: BPR122022000
Availability: BackOrder

Victron

$118.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).

If required, Bluetooth can be disabled.

The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.

Weight	2 lbs
Dimensions	5.9 × 5.9 × 3 in
Dimensions (L x W x H mm)	150 x 150 x 75 mm
Battery Voltage Nominal	12V or 24V (automatic detection)
Operating Voltage Range	[6, 35] V
Maximum Continuous Load Current Rating40	220 A
Maximum Continuous Load Current Rating60	132 A
Peak Current Rating	600 A
Reverse Current	No
Current Consumption When On B O	1.2 mA
Current Consumption When On B	1.4 mA
Current Consumption When Off B O	0.7 mA
Current Consumption When Off B	0.9 mA
Alarm Output Delay	12 s
Maximum Load Alarm Output	50 mA
Load Disconnect Delay	90 s
Load Reconnect Delay	30 s
Default Threshold Disengage12	10.5 V
Default Threshold Disengage24	21 V
Default Threshold Engage12	12 V
Default Threshold Engage24	24 V
Remote On Off Terminal	1
Bluetooth	Yes
Protections	Output short-circuit
Battery And Load Terminals	M8 bolts
Remote Terminal	Screw terminal two pole
Alarm Terminal	Screw terminal 3-pole
Protection Category Connection Area	IP00
Protection Category Electronic Components	IP67
Weight	0.8 kg
Height	60 mm
Width	123 mm
Depth	121 mm
