Busbar 150A 4P +cover

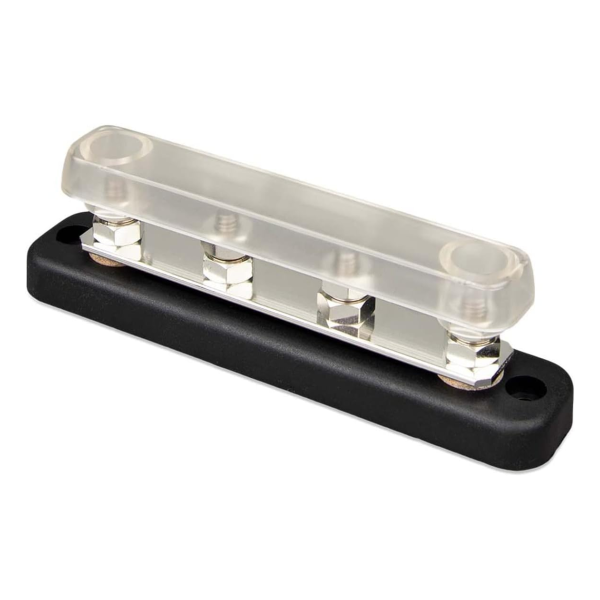

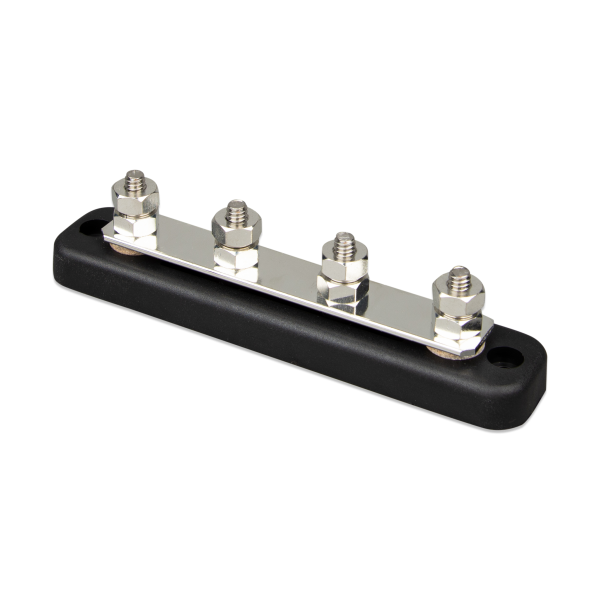

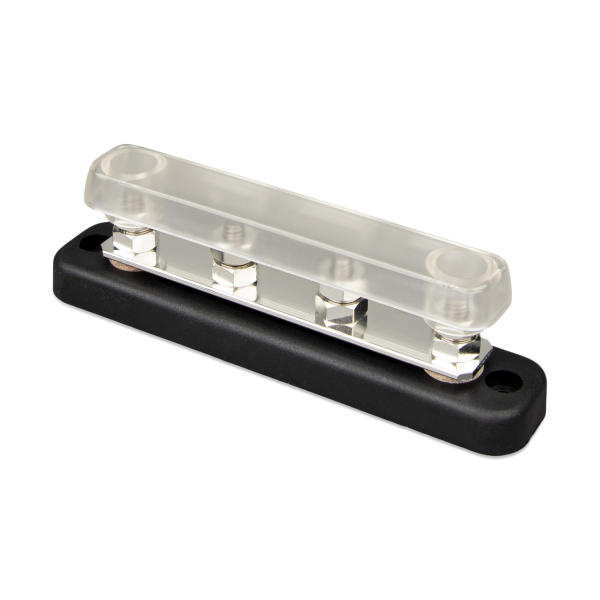

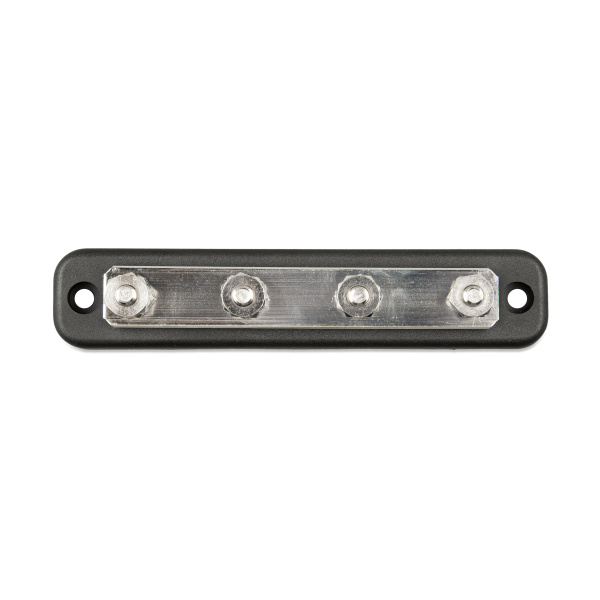

Name: Busbar 150A 4P +cover
Brand: Victron
SKU: VBB115040020
Availability: BackOrder

Victron

$21.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

150A / 70V – 4 high current connections
150A / 70V – 6 high current connections
150A / 70A – 2P with 10 screws +cover
150A / 70A – 2P with 20 screws +cover
250A / 70V – 4 high current connections
250A / 70V – 6 high current connections
250A / 70A – 2P with 6 screws +cover
250A / 70A – 2P with 12 screws +cover
600A / 70V – 4 high current connections and 8 low current connections
600A / 70V – 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.

Weight	0.4 lbs
Dimensions	6.3 × 7.9 × 1 in
Dimensions (L x W x H mm)	160 x 200 x 25 mm
Max Current	150 A
Max Voltage	70 V
Busbar Material	Tin plated copper
Busbar Dimensions	1.4mm x 18mm
Terminal Diameter1	6.35 mm
Terminal Height1	17 mm
Terminal Material	Stainless steel
Hex Nut Material	Tin plated copper
Base Material	ABS
Base Colour	Black
Base Fire Rating	UL 94 V-0
Cover Material	ABS
Cover Colour	Clear
Cover Fire Rating	UL 94 HB
Weight	0.2 kg
Height	45 mm
Width	152 mm
Depth	32 mm
