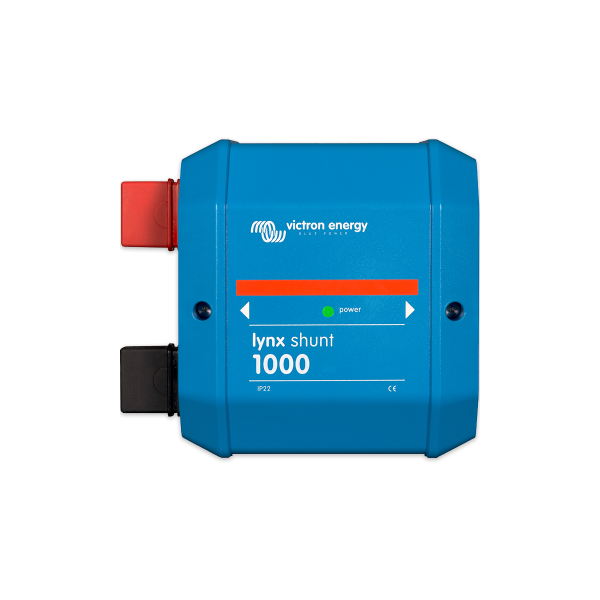

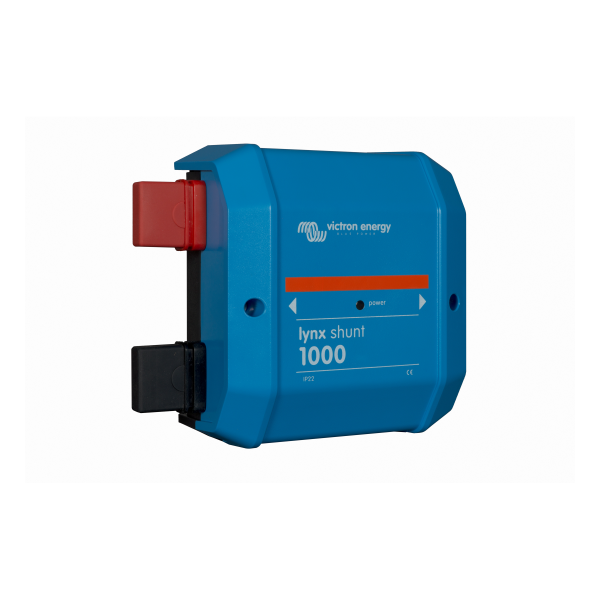

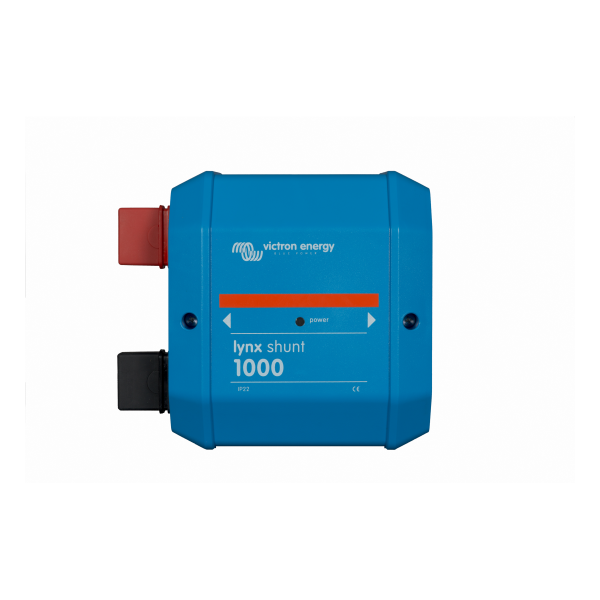

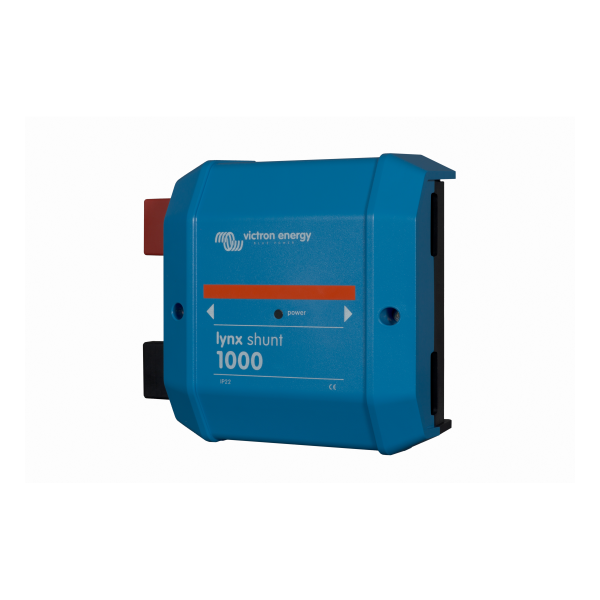

Lynx Shunt VE.Can (M10)

Name: Lynx Shunt VE.Can (M10)
Brand: Victron
SKU: LYN040102110
Availability: BackOrder

Victron

$398.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

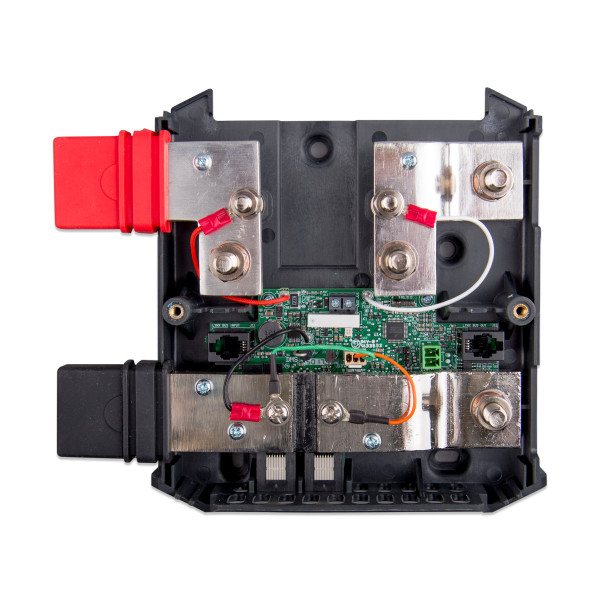

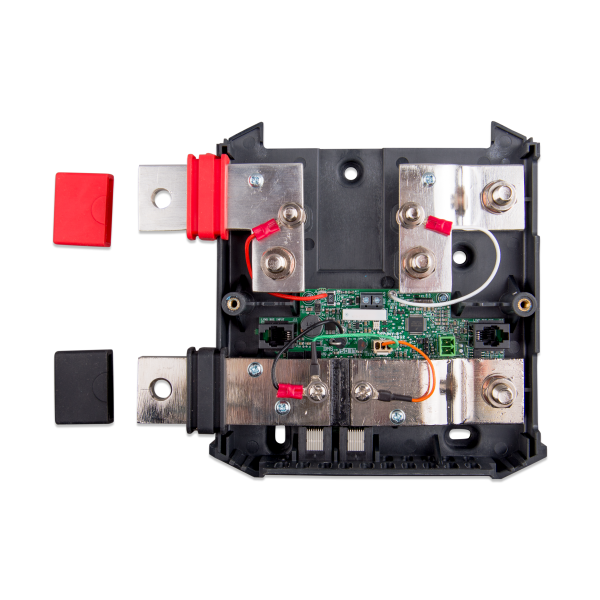

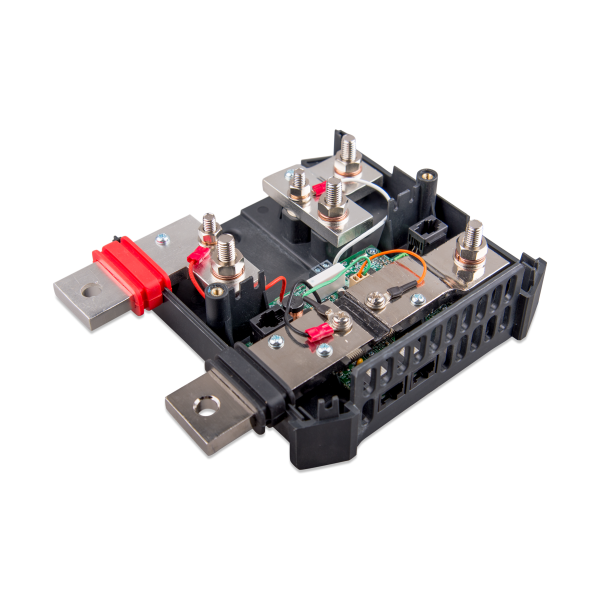

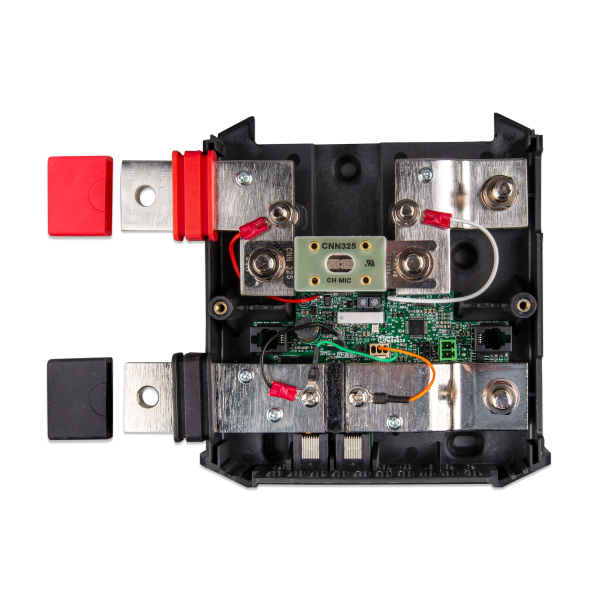

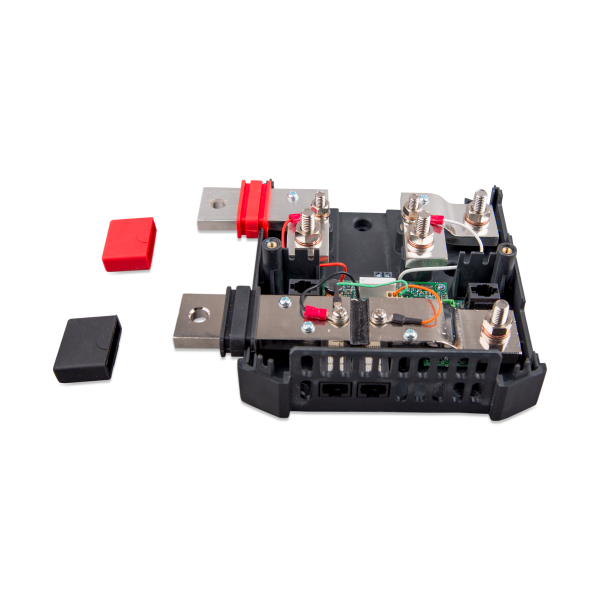

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

Weight	3.1 lbs
Dimensions	7.5 × 11.8 × 3.5 in
Dimensions (L x W x H mm)	190 x 300 x 90 mm
Voltage Range	[9, 70] V
Current Rating	1,000 A
System Voltages	12V or 24V or 48V
Reverse Polarity Protection	No
Power Consumption	60mA (12V) / 33mA (24V) / 20mA (48V)
Programmable Relay	Potential free alarm contact: 3A at 30VDC or 250VAC
Busbar Material	Tinned copper
Busbar Dimensions	8mm x 30mm
Max Humidity	95 %
Busbar Connections	M10
Fuse Connections	M8
Fuse Dummy	Included
Ve Can	RJ45 (Two RJ45 terminators included)
Power Connection Distributor	RJ10 (RJ10 cables ship with each Lynx Distributor)
Temperature Sensor Connection	Screw terminals
Relay Connection	Screw terminals
Material	ABS
Colour	Blue (RAL 5012)
Protection Category	IP22
Weight	1.4 kg
Height	190 mm
Width	180 mm
Depth	80 mm
