Lynx Distributor (M10)

Name: Lynx Distributor (M10)
Brand: Victron
SKU: LYN060102010
Availability: BackOrder

Victron

$226.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

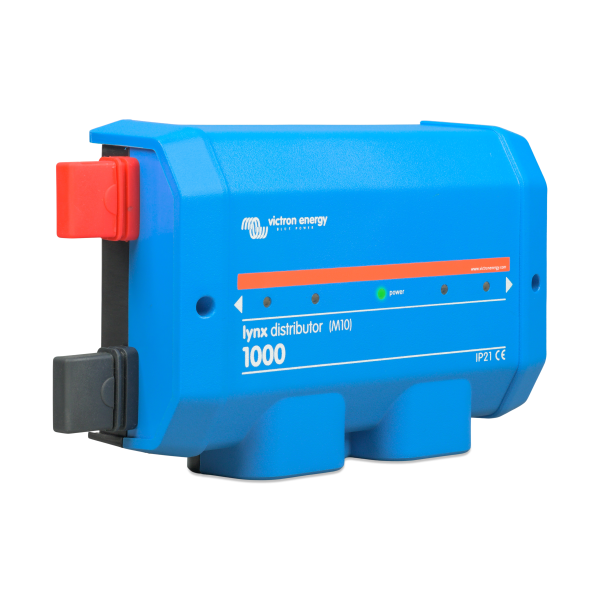

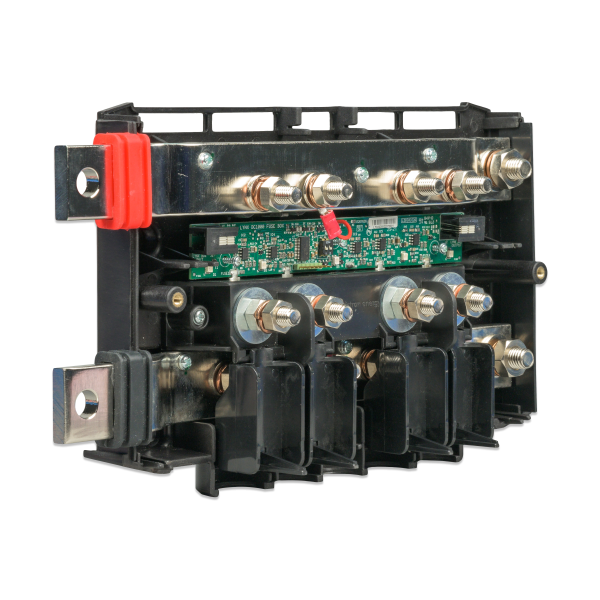

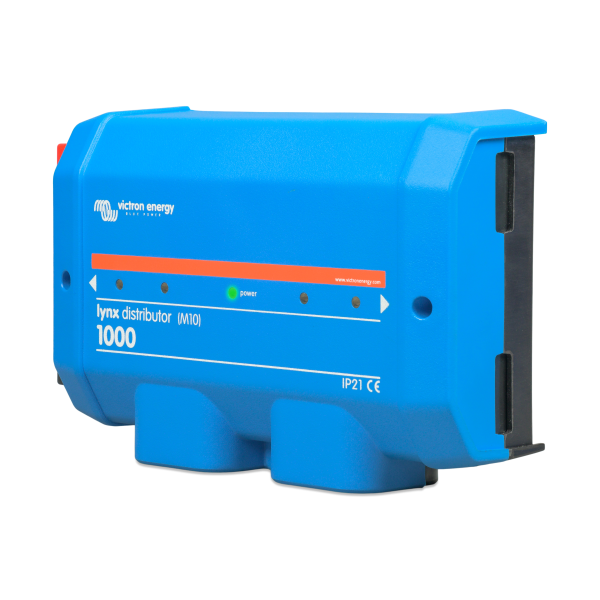

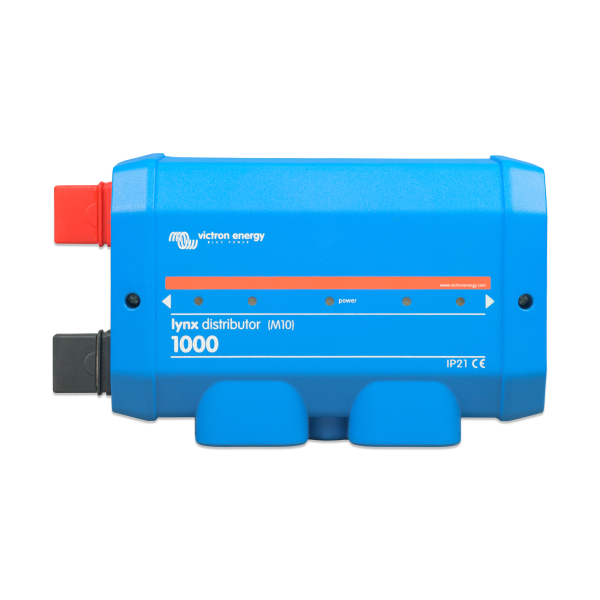

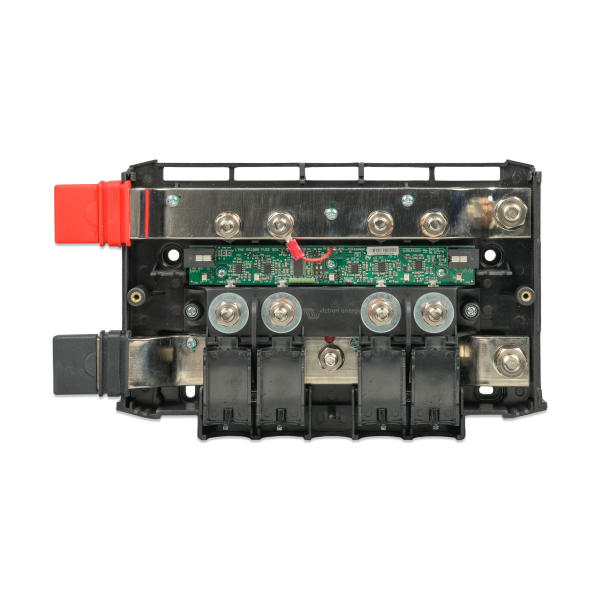

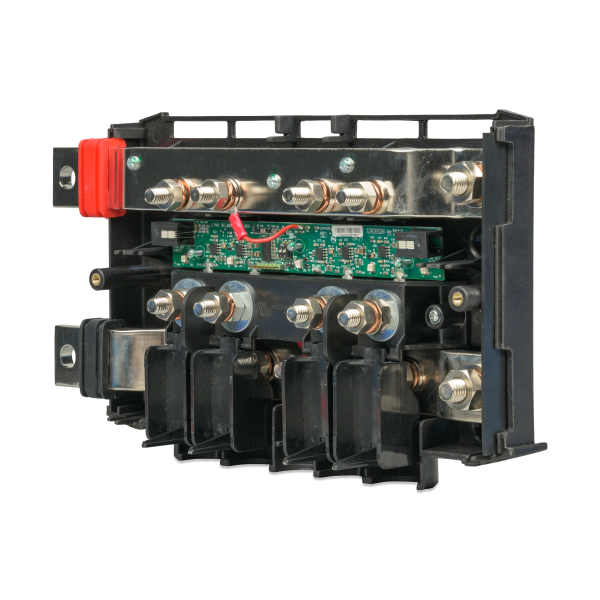

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M8 and M10 models.

Weight	5.1 lbs
Dimensions	7.5 × 15.9 × 3.7 in
Dimensions (L x W x H mm)	190 x 405 x 95 mm
Voltage Range	[9, 60] V
Current Rating	1,000 A
System Voltages	12V or 24V or 48V
Reverse Polarity Protection	Yes (he RJ10 cable connection is not protected against reverse polarity)
Power Consumption	Maximum 100mA with all LEDs illuminated (Powered from Lynx Shunt VE.Can or Lynx Smart BMS)
Busbar Material	Tinned copper
Busbar Dimensions	8mm x 30mm
Max Humidity	95 %
Busbar Connections	M8
Fuse Connections	3/8"
Data Connection	40 cm RJ10 cable (included)
Material	ABS
Colour	Blue (RAL 5012)
Protection Category	IP22
Weight	2.2 kg
Height	170 mm
Width	290 mm
Depth	80 mm
