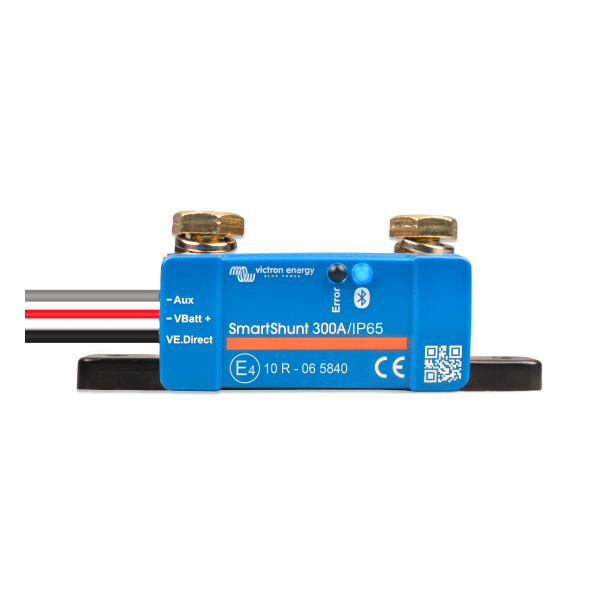

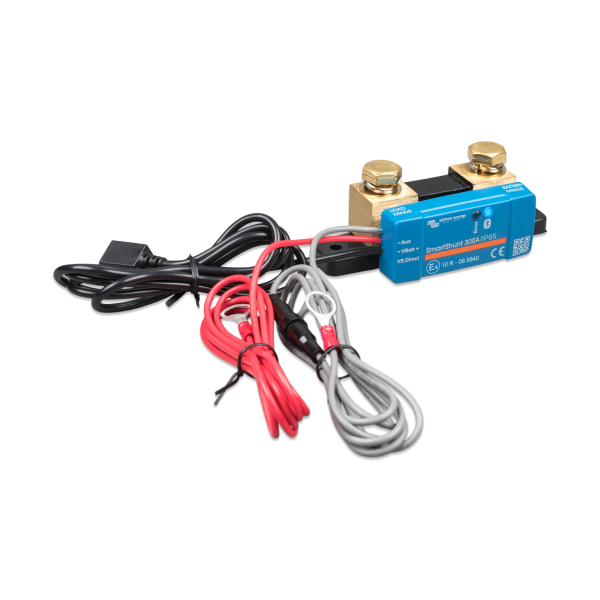

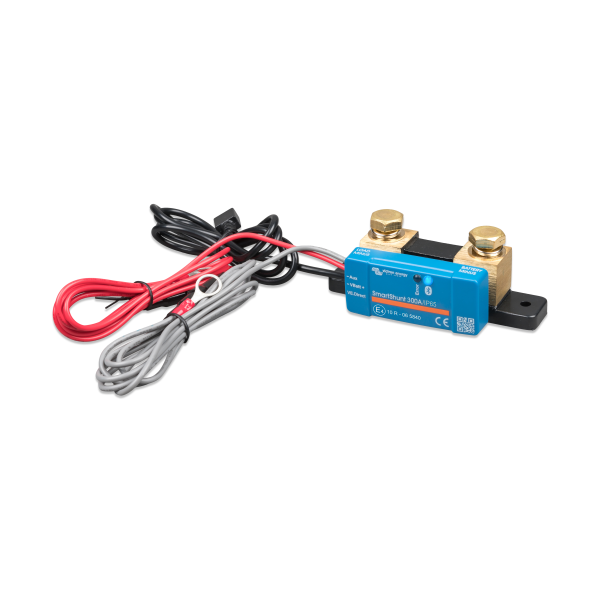

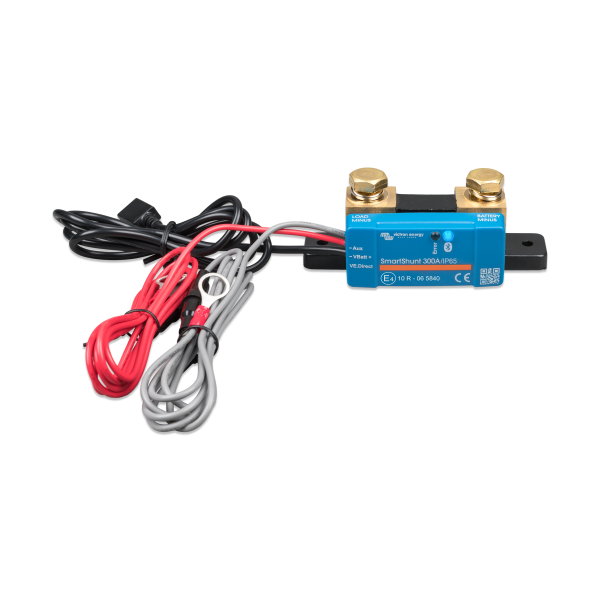

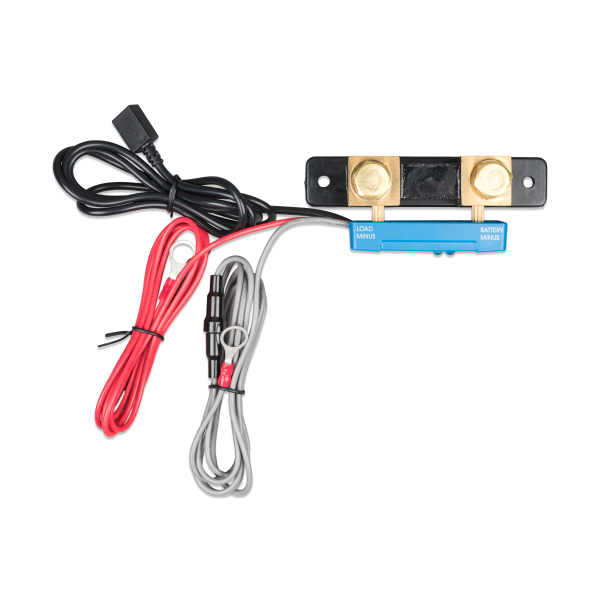

The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Weight	0.7 lbs
Dimensions	3.9 × 2.1 × 6.5 in
Dimensions (L x W x H mm)	100 x 54 x 165 mm
Supply Voltage Range	[6.5, 70] VDC
Current Rating	300 A
Battery Capacity Measurement Range	[1, 9,999] Ah
Current Draw	1 mA
Input Voltage Measurement Range Auxiliary Battery	[6.7, 70] VDC
Aux Input Fo Auxiliary Battery Voltage	1
Temperature Sensor	Optional (ASS000100000 – Temp. sensor for BMV)
Communication Port	VE.Direct
Bluetooth	1
Current Measurement Resolution	0.01 A
Voltage Measurement Resolution	0.01 V
Capacity Measurement Resolution	0.1 Ah
State Of Charge Measurement Resolution	0.1 %
Time To Go Measurement Resolution	1 min
Measurement Accuracy	%
Current Measurement Accuracy	0.4 %
Current Measurement Offset	10 mA
Voltage Measurement Accuracy	0.3 %

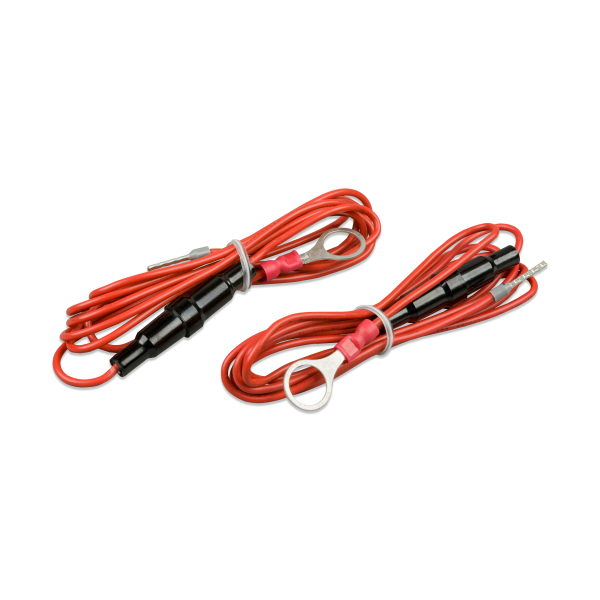

Positive Cable	1.5m cable with 1A fuse
Aux Cable	1.5m cable with 1A fuse
Ve Direct Cable	1.5m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device

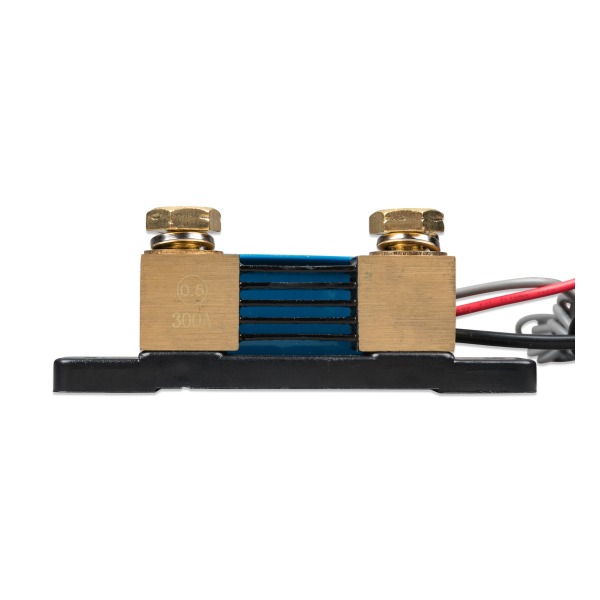

Shunt Connection Terminals	M8 bolts
Protection Category	IP65
Weight	0.32 kg
Height	44 mm
Width	120 mm
Depth	38 mm
Front Diameter	63 mm
Body Diameter	52 mm
Body Depth	31 mm
Safety	EN 60335-1
Emisison Immunity	EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Automotive Directive	EN 50498
Data Stored	Battery voltage,Battery current,Battery temperature,Battery midpoint deviation,Starter battery voltage,Battery state of charge percentage
Data Retention Period	46 d
