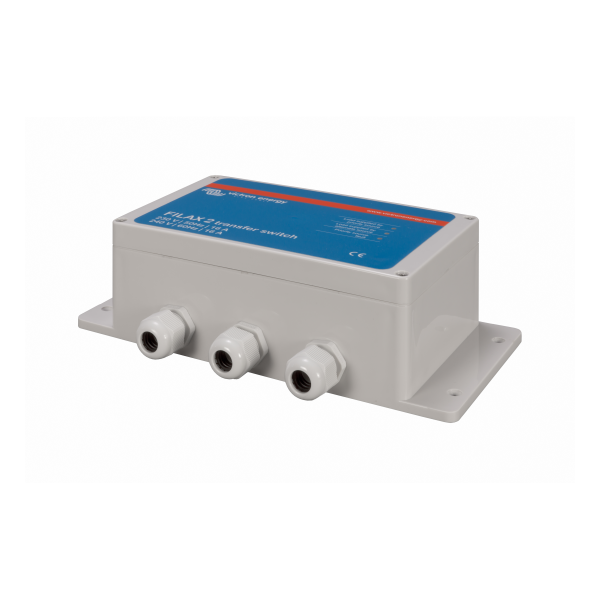

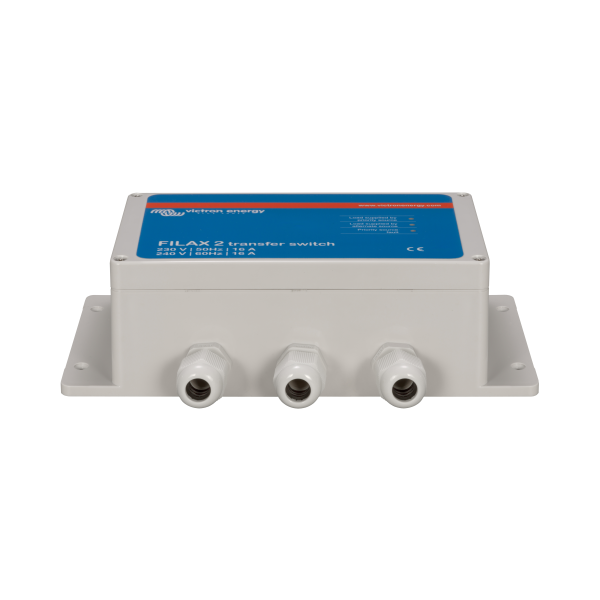

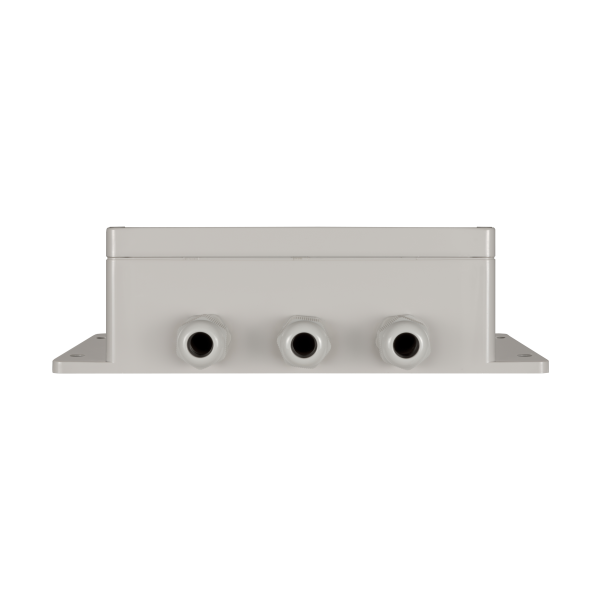

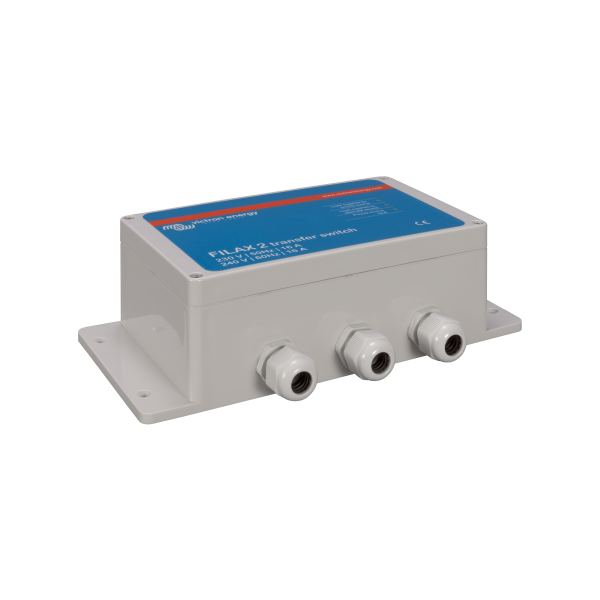

Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz
$290.00
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Filax is not intended to supply high power household equipment like washing machines or electric motors.
The Filax 2 is available in two models:
- 230V/50Hz-240V/60Hz
- 110V/50Hz-120V/60Hz
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 7.5 × 13.4 × 4.7 in |
| Dimensions (L x W x H mm) | 190 x 340 x 120 mm |
| Current Rating | 16 A |
| Low Voltage Switching | 180 V |
| Low Voltage Switching Reverse | 188 V |
| Low Frequency Switching50 | 45 Hz |
| Low Frequency Switching60 | 46 Hz |
| Low Frequency Reverse Switching50 | 47 Hz |
| Low Frequency Reverse Switching60 | 52 Hz |
| High Frequency Switching50 | 60 Hz |
| High Frequency Switching60 | 68 Hz |
| High Frequency Reverse Switching50 | 56 Hz |
| High Frequency Reverse Switching60 | 63 Hz |
| Input Voltage Priority | 260 V |
| Input Voltage Alternate | 260 V |
| Transfer Time | 16 ms |
| Reverse Delay | 30 s |
| Max Humidity | 95 % |
| Led Load Priority | Yellow |
| Led Load Alternate | Yellow |
| Led Load Fault | Red |
| Ac Connections | Screw terminals |
| Material | ABS |
| Colour | Light grey (RAL 7035) |
| Protection Category | IP65 |
| Weight | 0.8 kg |
| Height | 120 mm |
| Width | 255 mm |
| Depth | 75 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
