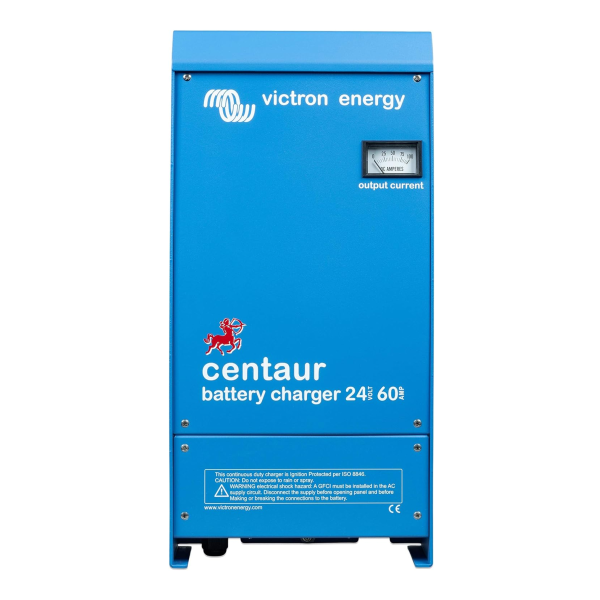

Centaur Charger 24/60(3) 120-240V
$995.00
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.
Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
The range spans 12V and 24V models from 16A through to 100A.
| Weight | 20.9 lbs |
|---|---|
| Dimensions | 9.4 × 14.2 × 24.8 in |
| Dimensions (L x W x H mm) | 240 x 360 x 630 mm |
| Battery Voltage Nominal | 24 V |
| AC Input Voltage Range | [90, 265] V |
| DC Input Voltage Range | [40, 400] V |
| Ac Input Frequency Range | [45, 65] Hz |
| Power Factor | 1 |
| Charge Voltage Absorption | 28.5 V |
| Charge Voltage Float | 27 V |
| Number Of Charge Outputs | 3 |
| Charge Current | 60 A |
| Output Am Meter | 1 |
| Charge Algorithm | IUoU, three stage charging |
| Battery Capacity Range | [240, 600] Ah |
| Temperature Sensor | Internal |
| Programable | Charge voltages selectable via DIP switches |
| Forced Cooling | 1 |
| Protections | Output short-circuit,Over temperature |
| Ignition Protected | 1 |
| Max Humidity | 95 % |
| Battery Connection Terminal Type | M8 bolts |
| Material | Aluminium |
| Colour | Blue (RAL 5012) |
| Protection Category | IP20 |
| Weight | 12 kg |
| Height | 514 mm |
| Width | 252 mm |
| Depth | 123 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,UL 1236 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3 |
| Battery Voltage | |
| AC Input voltage | |
| Charge Current |
