Phoenix Charger 12/50(2+1) 120-240V
$696.00
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Adaptive 4-stage charge characteristic: bulk – absorption – float – storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.
| Weight | 7.9 lbs |
|---|---|
| Dimensions | 7.1 × 11 × 17.3 in |
| Dimensions (L x W x H mm) | 180 x 280 x 440 mm |
| Battery Voltage Nominal | 12 V |
| AC Input Voltage Range | [90, 265] V |
| DC Input Voltage Range | [90, 400] V |
| Ac Input Frequency Range | [45, 65] Hz |
| Power Factor | 1 |
| Charge Voltage Absorption | 14.4 V |
| Charge Voltage Float | 13.8 V |
| Charge Voltage Storage | 13.2 V |
| Charge Current Main | 30 A |
| Charge Current Starter | 4 A |
| Charge Algorithm | Adaptive, 4-stage |
| Battery Capacity Range | [200, 800] Ah |
| Temperature Sensor | Included |
| Programable | Settings can be change via a data port. RJ45 UTP cable and MK2-USB interface are required (not included) |
| Can Be Used As Power Supply | 1 |
| Forced Cooling | 1 |
| Protections | Output short-circuit,High battery voltage,Over temperature,Battery reverse polarity |
| Max Humidity | 95 % |
| Battery Connection Terminal Type | M6 bolts |
| Material | Aluminium |
| Colour | Blue (RAL 5012) |
| Protection Category | IP21 |
| Weight | 3.8 kg |
| Height | 350 mm |
| Width | 200 mm |
| Depth | 108 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3 |
| Vibration | IEC68-2-6:10-150Hz/1.0G |
| Battery Voltage | |
| AC Input voltage | |
| Charge Current |
Only logged in customers who have purchased this product may leave a review.
Related products
-

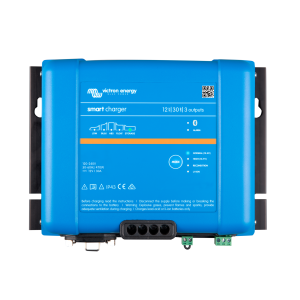

Blue Smart IP65 Charger 6V/12V-1,1 230V CEE 7/16
