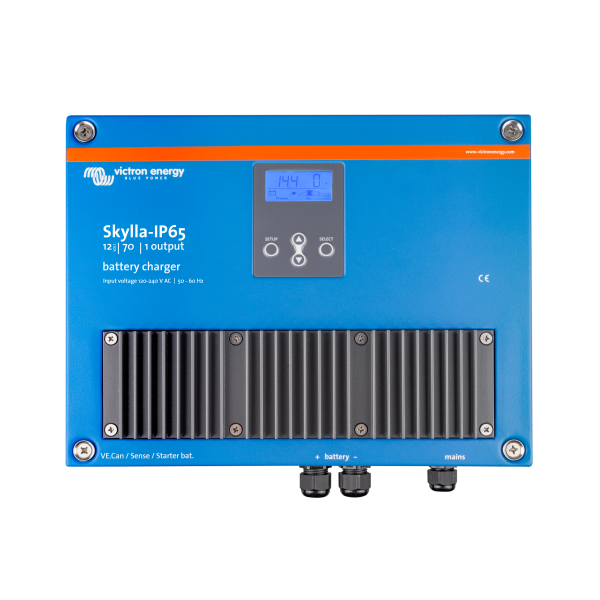

Skylla-IP65 12/70(1+1) 120-240V
Skylla-IP65 12/70(1+1) 120-240V

$767.00

Available on backorder

🔍
Skylla-IP65 12/70(1+1) 120-240V

Skylla-IP65 12/70(1+1) 120-240V

Victron

$767.00

AvailableShips next business day
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.

The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.

The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.

Both models are available in two versions:

  • 3 full rated outputs
  • 1 full rated output together with an isolated 3A trickle charge output for a starter battery
Weight 14.3 lbs
Dimensions 14.8 × 18.3 × 10.4 in
Dimensions (L x W x H mm)

375 x 465 x 265 mm
Battery Voltage Nominal

12 V
AC Input Voltage

120V or 230V
AC Input Voltage Range

[90, 265] V
Max Ac Input Current100

12 A
Ac Input Frequency Range

[45, 65] Hz
Power Factor

0.98
Charge Voltage Absorption

14.4 V
Charge Voltage Float

13.8 V
Charge Voltage Storage

13.2 V
Charge Current Main

70 A
Number Full Outputs

1
Low Currentoutput

1
Charge Current Starter

3 A
Charge Algorithm

Adaptive, 7-stage
Charge Algorithm Lithium

Three stage, with on-off control or CAN-bus control
Temperature Sensor

Included
Programable

1
Can Be Used As Power Supply

1
Remote Port

Yes (can be connected to a Li-Ion BMS
Can Port

VE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel Operation

Yes, with VE.Can
Programmable Relay

DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced Cooling

1
Protections

Battery reverse polarity (fuse),Over temperature,Output short-circuit
Max Humidity

95 %
Battery Connection Terminal Type

M6 bolts
Material

Steel
Colour

Blue (RAL 5012)
Protection Category

IP65
Weight

6 kg
Height

401 mm
Width

265 mm
Depth

151 mm
Safety

EN-IEC 60335-1,EN-IEC 60335-2-29
Emission

EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3
Immunity

EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage

AC Input voltage

Charge Current
