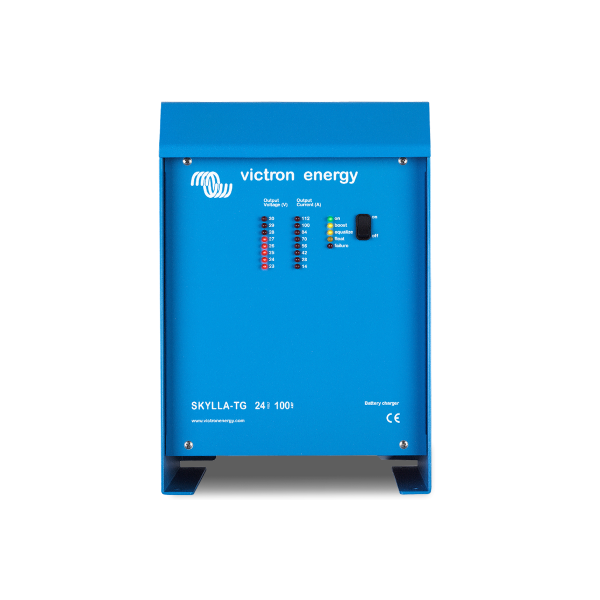

Skylla-TG 24/30(1+1) GL 120-240V
Skylla-TG 24/30(1+1) GL 120-240V

$839.00

Available on backorder

🔍
Skylla-TG 24/30(1+1) GL 120-240V

Skylla-TG 24/30(1+1) GL 120-240V

Victron

$839.00

AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Weight 11.9 lbs
Dimensions 9.4 × 13 × 18.1 in
Dimensions (L x W x H mm)

240 x 330 x 460 mm
Battery Voltage Nominal

24 V
AC Input Voltage

120V or 230V
AC Input Voltage Range

[90, 265] V
DC Input Voltage Range

[90, 400] V
Ac Input Frequency Range

[45, 65] Hz
Power Factor

1
Charge Voltage Absorption

28.5 V
Charge Voltage Float

26.5 V
Charge Current Main

30 A
Charge Current Starter

4 A
Charge Algorithm

IUoU, three stage charging
Battery Capacity Range

[150, 300] Ah
Temperature Sensor

Included
Programable

Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply

1
Remote Alarm

Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling

1
Protections

Output short-circuit,High battery voltage,Over temperature,Battery reverse polarity
Max Humidity

95 %
Material

Aluminium
Colour

Blue (RAL 5012)
Protection Category

IP21
Weight

5.5 kg
Height

365 mm
Width

250 mm
Depth

147 mm
Battery Connection Terminal Type

M8 bolts
Safety

EN-IEC 60335-1,EN-IEC 60335-2-29
Emission

EN 55014-1,EN-IEC 61000-3-2
Immunity

EN 55014-2,EN-IEC 61000-3-3
Vibration

IEC 60945: 0.7g
G L

Certificate 54 758 – 08HH
Battery Voltage

AC Input voltage

Charge Current
