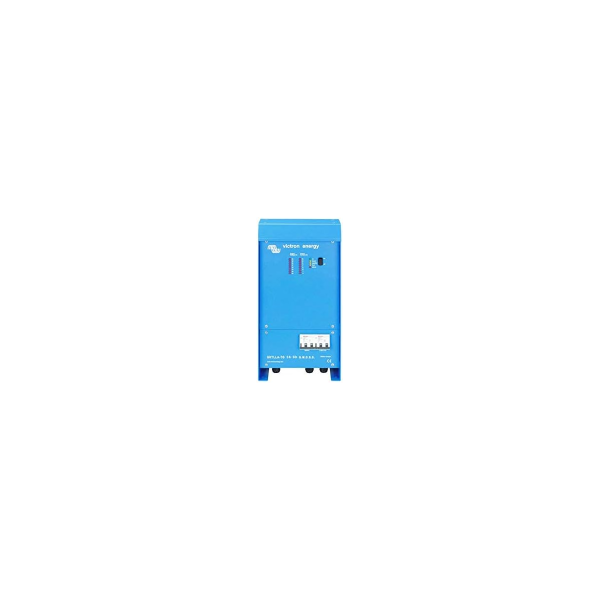

Skylla-TG 24/50 GMDSS 120-240V
Skylla-TG 24/50 GMDSS 120-240V

$1,320.00

Available on backorder

🔍
Skylla-TG 24/50 GMDSS 120-240V

Skylla-TG 24/50 GMDSS 120-240V

Victron

$1,320.00

AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.

Weight 16.3 lbs
Dimensions 9.1 × 13 × 22 in
Dimensions (L x W x H mm)

230 x 330 x 560 mm
Battery Voltage Nominal

24 V
AC Input Voltage

120V or 230V
AC Input Voltage Range

[90, 265] V
Ac Input Frequency Range

[45, 65] Hz
Power Factor

1
Charge Voltage Absorption

38.5 V
Charge Voltage Float

26.5 V
Charge Current Main

50 A
Charge Current Main110

50 A
Charge Algorithm

IUoU, three stage charging
Temperature Sensor

Included
Programable

Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply

1
Forced Cooling

1
Protections

Output short-circuit,High battery voltage,Over temperature,Battery reverse polarity
Max Humidity

95 %
Material

Aluminium
Colour

Blue (RAL 5012)
Protection Category

IP21
Weight

6 kg
Height

485 mm
Width

250 mm
Depth

147 mm
Battery Connection

Red and black 1.5 meter cable
Gmdss Connection

One 1,5 m cable (+ to be taken directly from the battery)
Safety

EN-IEC 60335-1,EN-IEC 60335-2-29
Emission

EN 55014-1,EN-IEC 61000-3-2
Immunity

EN 55014-2,EN-IEC 61000-3-3
Maritime

IEC 60945
Battery Voltage

AC Input voltage

Charge Current
