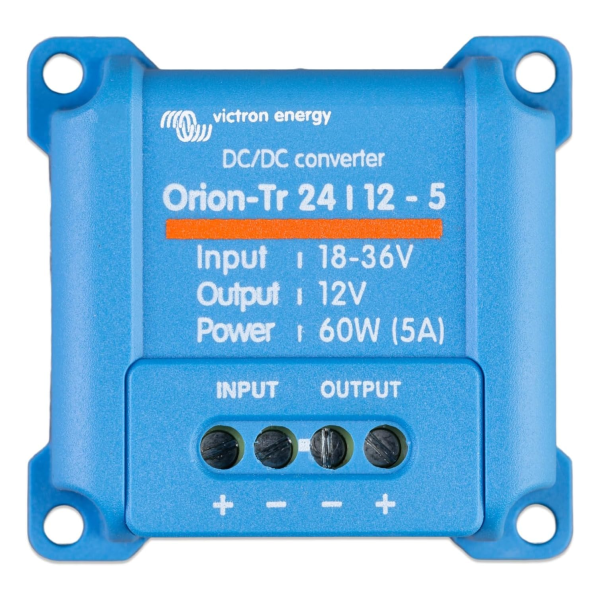

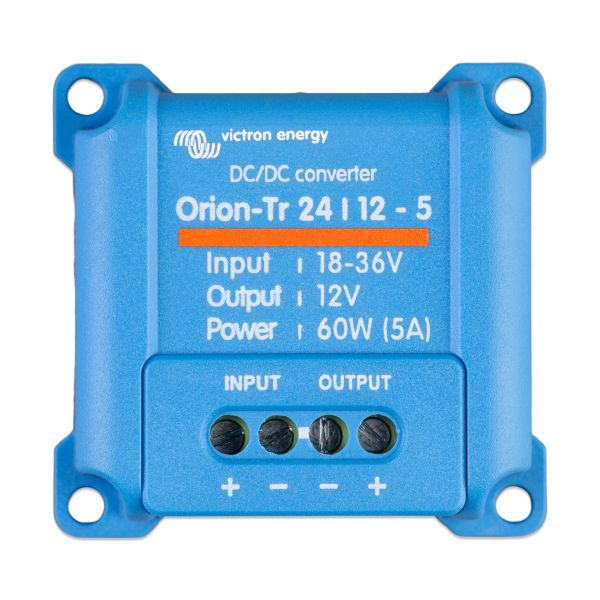

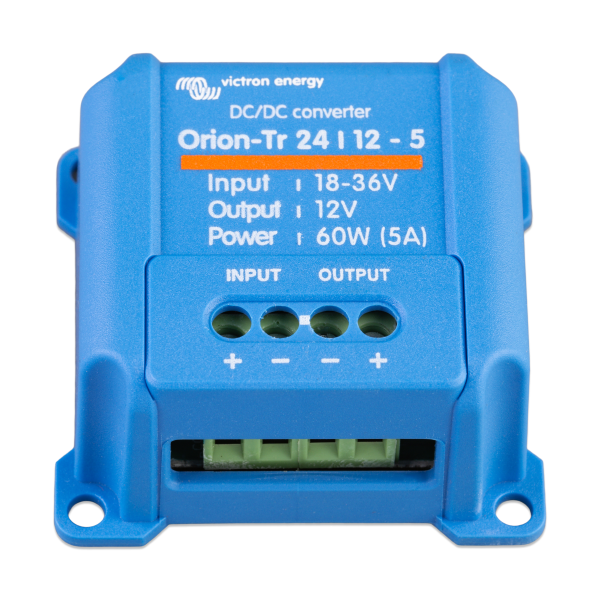

Orion-Tr 24/12-5 (60W) DC-DC converter Retail
$17.00
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
| Weight | 0.2 lbs |
|---|---|
| Input Voltage Range | [18, 35] V |
| Output Voltage | 12.7 V |
| Continuous Output Current | 5 A |
| Maximum Output Current | 7 A |
| Output Derating Above40 | 3 % |
| Off Load Current | 20 |
| Max Efficiency | 95 |
| Colour | Blue (RAL 5012) |
| Weight | 0.06 kg |
| Height | 53 mm |
| Width | 51 mm |
| Depth | 27 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Automotive Directive | ECE R10-4 |
| Battery Voltage | |
| DC Output Voltage | |
| Charge Current | |
| IP Rating | |
| Isolated | |
| DC Input Voltage |
