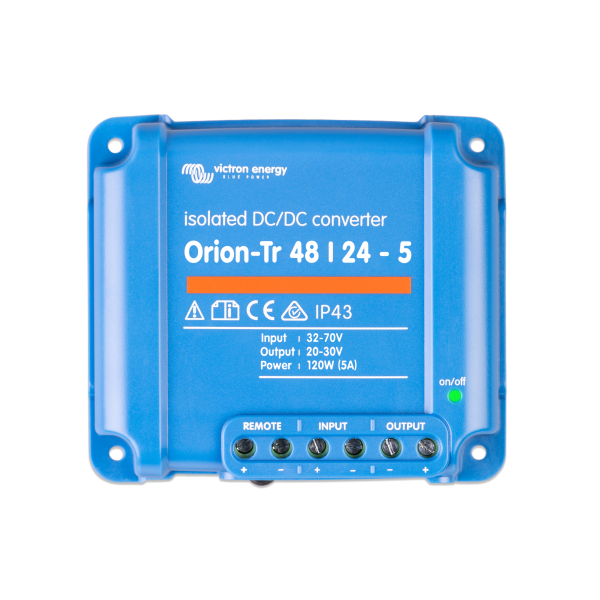

Orion-Tr 48/24-5A (120W) Isolated DC-DC converter
$71.00
AvailableShips next business day
Add $313.00 more to get free shipping!
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse
On 12V and 24V input models only.
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 4.7 × 5.5 × 2.4 in |
| Dimensions (L x W x H mm) | 120 x 140 x 60 mm |
| Input Voltage Range | [32, 70] V |
| Under Voltage Shutdown | 28 V |
| Under Voltage Restart | 30 V |
| Output Voltage | 24.2 V |
| Output Voltage Range | [20, 30] V |
| Output Voltage Tolerance | 200 mVrms |
| Output Voltage Noise | 2 mVrms |
| Continuous Output Current | 5 A |
| Maximum Output Current | 3.6 A |
| Maximum Shortcircuit Current | 25 A |
| Continuous Output Power25 | 120 W |
| Continuous Output Power40 | 100 W |
| No Load Current Consumption | 60 mA |
| Standby Current Consumption | 0.2 mA |
| Max Efficiency | 86 |
| Galvanic Isolation | 1 |
| Remote On Off Terminal | 1 |
| Isolation | 200 VDC |
| Max Humidity | 95 % |
| Remote On Off Terminal Connection | Screw terminal two pole |
| Colour | Blue (RAL 5012) |
| Protection Category | IP43 |
| Weight | 0.42 kg |
| Height | 100 mm |
| Width | 113 mm |
| Depth | 47 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Automotive Directive | ECE R10-5 |
| Battery Voltage | |
| DC Output Voltage | |
| Charge Current | |
| IP Rating | |
| Isolated | |
| DC Input Voltage |
