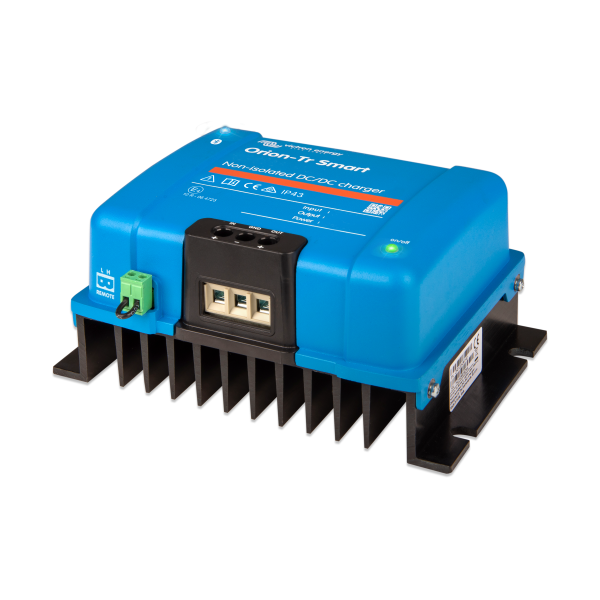

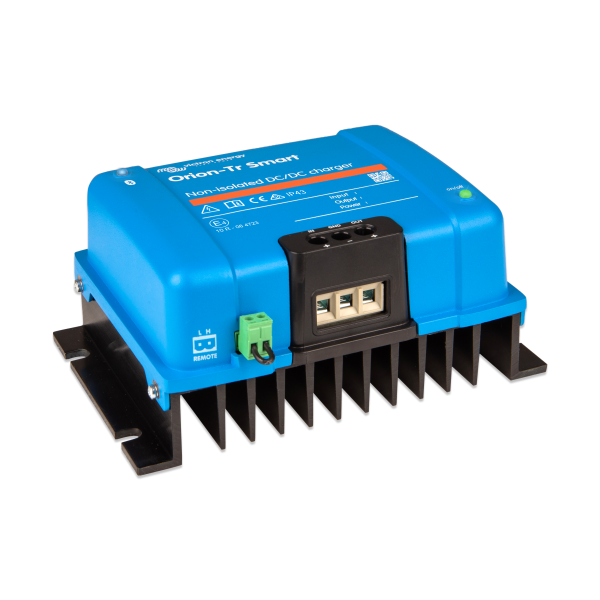

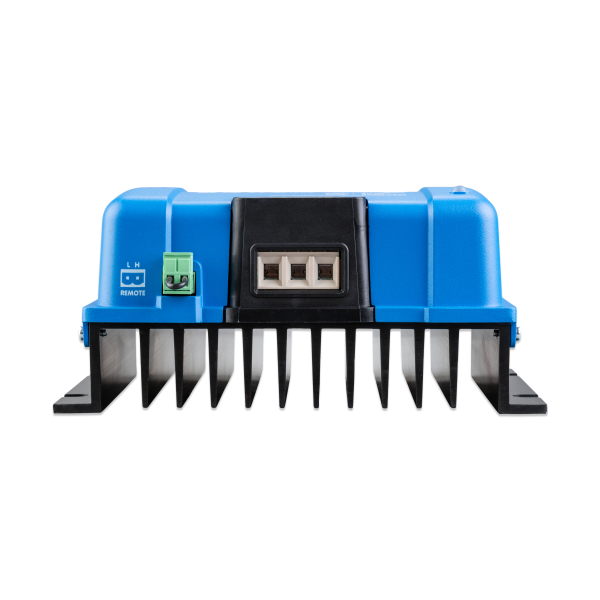

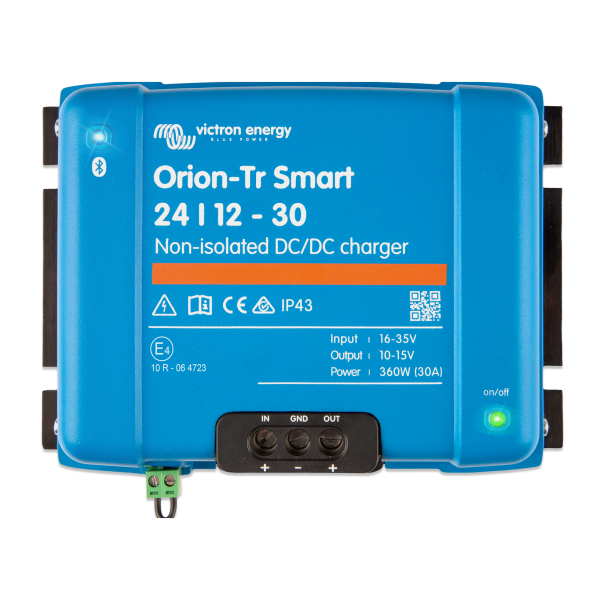

Orion-Tr Smart 24/12-30A (360W) Non-isolated DC-DC charger
$241.00
AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
| Weight | 4 lbs |
|---|---|
| Dimensions | 5.1 × 8.1 × 3.5 in |
| Dimensions (L x W x H mm) | 130 x 205 x 90 mm |
| Input Voltage Range | [16, 35] V |
| Under Voltage Shutdown | 14 V |
| Under Voltage Restart | 15 V |
| Output Voltage | 24.2 V |
| Output Voltage Range | [18, 30] V |
| Output Voltage Tolerance | 200 mVrms |
| Output Voltage Noise | 2 mVrms |
| Max Output Current | 25 A |
| Cont Output Current Rating40 | 17 A |
| Output Derating Above40 | 3 % |
| Maximum Shortcircuit Current | 40 A |
| Continuous Output Power25 | 480 W |
| Continuous Output Power40 | 400 W |
| No Load Current Consumption | 80 mA |
| Standby Current Consumption | 1 mA |
| Max Efficiency | 80 |
| Power Supply Use | 1 |
| Programable | 1 |
| Remote On Off Terminal | 1 |
| Bluetooth | 1 |
| Max Humidity | 95 % |
| Remote On Off Terminal Connection | Screw terminal two pole |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Weight | 1.8 kg |
| Height | 130 mm |
| Width | 186 mm |
| Depth | 80 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Automotive Directive | ECE R10-5 |
| Battery Voltage | |
| DC Output Voltage | |
| Charge Current | |
| IP Rating | |
| Isolated | |
| DC Input Voltage |
