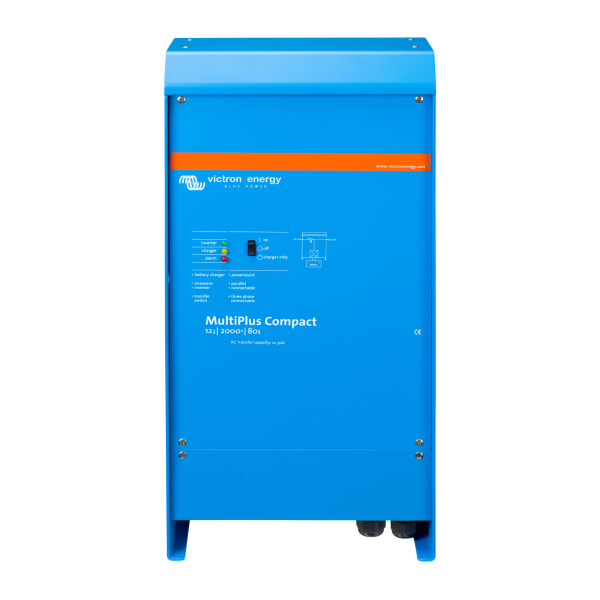

MultiPlus Compact 12/2000/80-50 120V VE.Bus (UL 458)
$1,013.00
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
| Weight | 31.5 lbs |
|---|---|
| Dimensions | 8.7 × 13 × 24.4 in |
| Dimensions (L x W x H mm) | 220 x 330 x 620 mm |
| Battery Voltage Nominal | 12 V |
| Power Control | 1 |
| Power Assist | 1 |
| Parallel Operation | 1 |
| Three Phase Operation | 1 |
| Transfer Switch Current Rating | 50 A |
| DC Input Voltage Range | [9.5, 17] VDC |
| AC Output Voltage | 120 VAC |
| AC Output Frequency | 60 Hz |
| Cont Power V A25 | 2,000 VA |
| Cont Power W25 | 1,600 W |
| Cont Power W40 | 1,450 W |
| Cont Power W65 | 1,100 W |
| Peak Power Rating | 4,000 W |
| Max Efficiency | 92 % |
| Zero Load Power | 9 W |
| Zero Load Power A E S | 7 W |
| Zero Load Power Search | 3 W |
| AC Input Voltage Range | [95, 140] VAC |
| AC Input Frequency Range | [55, 65] Hz |
| Power Factor | 1 |
| Charge Voltage Absorption | 14.4 VDC |
| Charge Voltage Float | 13.8 VDC |
| Charge Voltage Storage | 13.2 VDC |
| Charge Algorithm | Adaptive, 4-stage |
| Maximum Battery Charge Current | 80 A |
| Starter Battery Charge Output | 1 |
| Starter Battery Charge Current | 4 A |
| Temperature Sensor | Included |
| Programmable Relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Communication Port | VE.Bus |
| Remote Terminal | On / Off / Charger only |
| D IP Switches Programming | 1 |
| Computer Programming | 1 |
| Fan Assist Cooling | 1 |
| Max Humidity | 95 % |
| Battery Connection Terminal Type | M8 bolts |
| Remote Terminal Type | Screw terminal two pole |
| Relay Terminal | Screw terminal 3-pole |
| Vebus Terminal Type | Two RJ45 terminals |
| Material | Aluminium |
| Colour | Blue (RAL 5012) |
| Protection Category | IP21 |
| Weight | 13 kg |
| Height | 520 mm |
| Width | 255 mm |
| Depth | 125 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,UL 458 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Battery Voltage | |
| AC Output Voltage |
