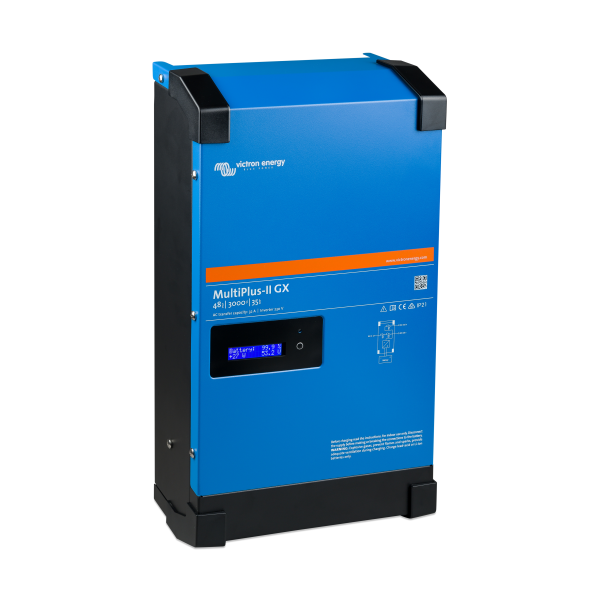

MultiPlus-II 48/3000/35-32 230V GX
$747.00
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
| Weight | 41.5 lbs |
|---|---|
| Dimensions | 13.8 × 22.8 × 9.4 in |
| Dimensions (L x W x H mm) | 350 x 580 x 240 mm |
| Battery Voltage Nominal | 48 V |
| Power Control | 1 |
| Power Assist | 1 |
| Parallel Operation | 1 |
| Three Phase Operation | 1 |
| Transfer Switch Current Rating | 32 A |
| Max Ac Input Current | 32 A |
| DC Input Voltage Range | [38, 66] VDC |
| AC Output Voltage | 230 VAC |
| AC Output Frequency | 50 Hz |
| Cont Power V A25 | 3,000 VA |
| Cont Power W25 | 2,400 W |
| Cont Power W40 | 2,200 W |
| Cont Power W65 | 1,700 W |
| Peak Power Rating | 5,500 W |
| Max App Feedin Power | 3,000 VA |
| Max Efficiency | 95 % |
| Zero Load Power | 11 W |
| Zero Load Power A E S | 7 W |
| Zero Load Power Search | 2 W |
| AC Input Voltage Range | [187, 265] VAC |
| AC Input Frequency Range | [45, 65] Hz |
| Charge Voltage Absorption | 57.6 VDC |
| Charge Voltage Float | 55.2 VDC |
| Charge Voltage Storage | 52.8 VDC |
| Charge Algorithm | Adaptive, 4-stage |
| Maximum Battery Charge Current | 35 A |
| Temperature Sensor | Included |
| External Ac Current Sensor | 50A or 100A (optional) |
| Programmable Relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |

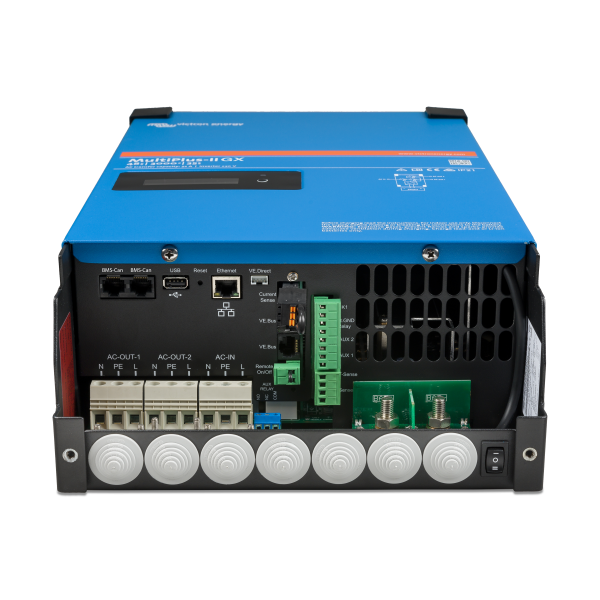

| Communication Port | VE.Direct,VE.Bus,VE.Can,BMS-Can,WiFi,Ethernet |
| Communication Port General | 1 |
| Remote Terminal | On / Off |
| Computer Programming | 1 |
| Fan Assist Cooling | 1 |
| Max Humidity | 95 % |
| Max Altitude | 2,000 m |
| Battery Connection Terminal Type | M8 bolts |
| Remote Terminal Type | Screw terminal two pole |
| Relay Terminal | Screw terminal 3-pole |
| Vebus Terminal Type | Two RJ45 terminals |
| Material | Steel |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 |
| Weight | 20 kg |
| Height | 506 mm |
| Width | 275 mm |
| Depth | 147 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2 |
| Emission Immunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Anti Islanding Standard | Please consult the certificates on our website |
| Ups Standard | IEC 62040-1 |
| Battery Voltage | |
| AC Output Voltage |
