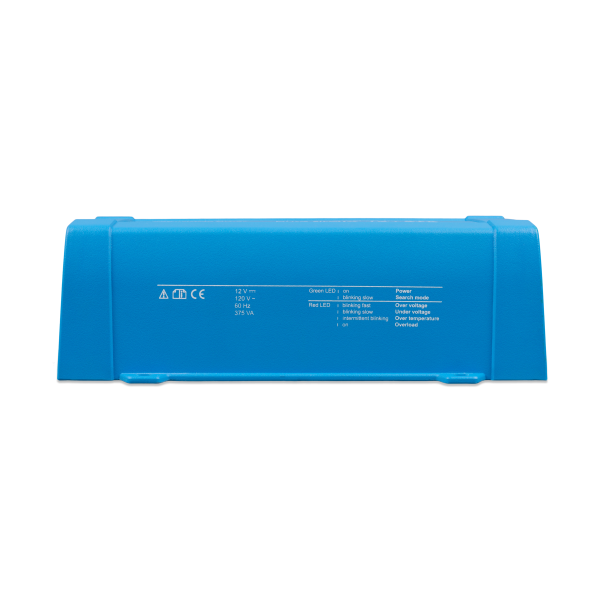

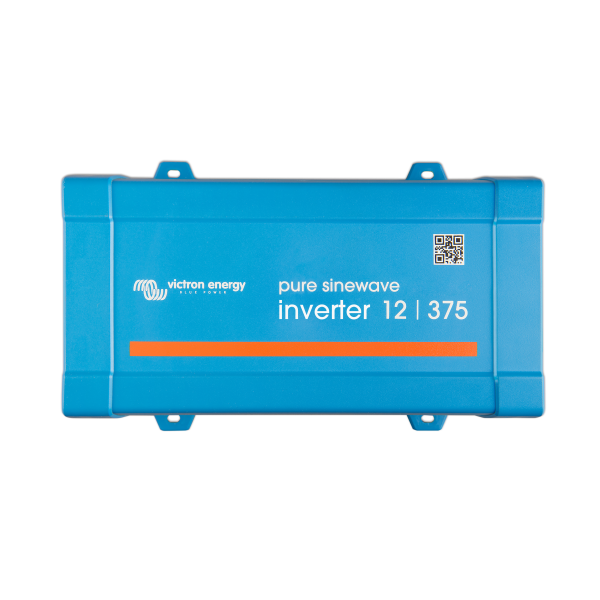

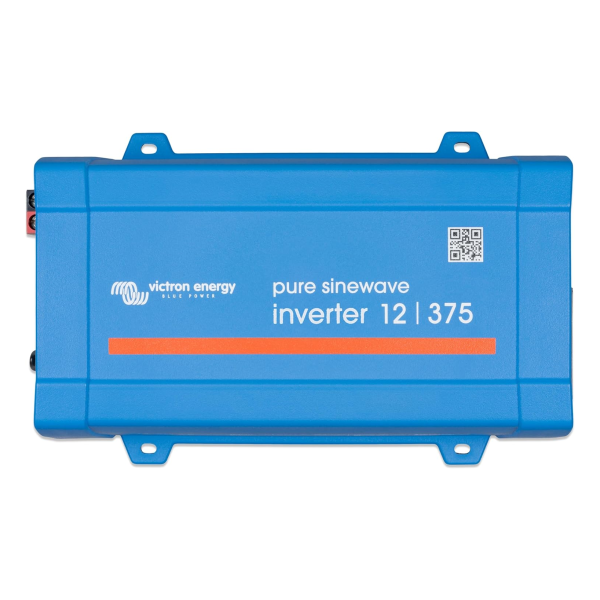

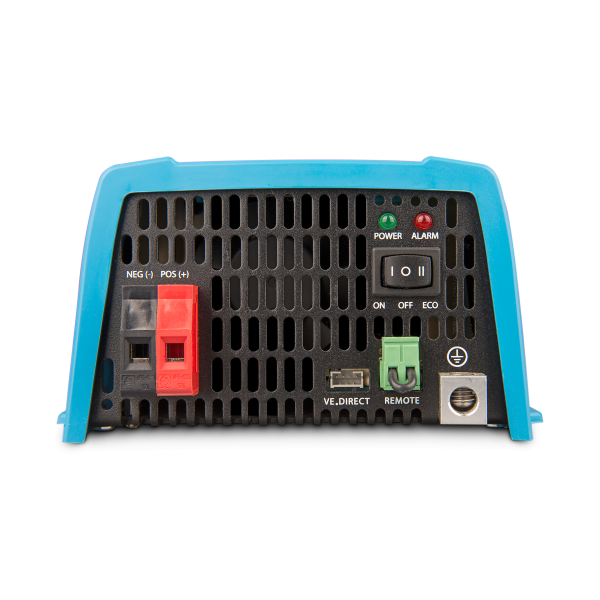

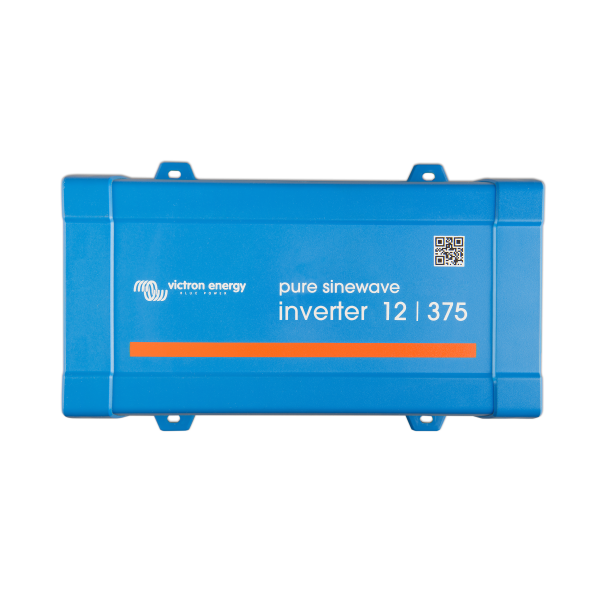

Name: Phoenix Inverter 12/375 120V VE.Direct NEMA GFCI (UL 458)
Brand: Victron
SKU: PIN123750510
Availability: BackOrder

Phoenix Inverter 12/375 120V VE.Direct NEMA GFCI (UL 458)

$129.00

AvailableShips next business day

Congratulations! You got free shipping 🎉

Extra Features

Guaranteed Safe Checkout

Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

Weight	7.1 lbs
Dimensions	8.3 × 11.8 × 5.9 in
Dimensions (L x W x H mm)	210 x 300 x 150 mm
Battery Voltage Nominal	12 V
Cont Power V A25	375 VA
Cont Power W25	300 W
Cont Power W40	260 W
Peak Power Rating	700 W
AC Output Voltage	120 V
Frequency	60 Hz
DC Input Voltage Range	[9.2, 17] V
DC Low Shut Down	9.3 V
DC Low Restart Alarm	10.9 V
Dynamic Low DC Shutdown	1
Battery Charged Detection Voltage	14 V
Max Efficiency	89 %
Zero Load Power	5.6 W
Zero Load Power Eco Mode	0.9 W
Eco Mode Retry Interval	2.5 s
Eco Mode Stop Start Power Setting	Adjustable
Remote On Off Terminal	1
Communication Port	VE.Direct
Fully Programable	1
Protections	Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload
Max Humidity	95 %
Power Deration	1.25 %
AC Outlet Socket	Nema 5-15R, GFCI
Remote Terminal	Screw terminal two pole
Colour	Blue (RAL 5012)
Material	Steel chassis and plastic cover
Protection Category	IP21
Weight	3 kg
Height	85 mm
Width	182 mm
Depth	260 mm
Safety	EN-IEC 60335-1,EN-IEC 62109-1,UL 458
E M C	EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Automotive Directive	ECE R10-4
Battery Voltage	12 V
AC Output Voltage	120 V
