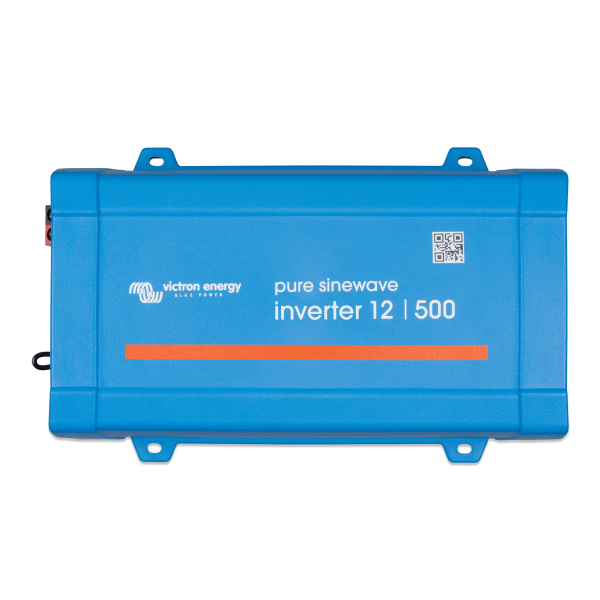

Name: Phoenix Inverter 12/500 230V VE.Direct IEC
Brand: Victron
SKU: PIN121501100
Availability: BackOrder

Phoenix Inverter 12/500 230V VE.Direct IEC

$157.00

AvailableShips next business day

Add $344.00 more to get free shipping!

Extra Features

Guaranteed Safe Checkout

Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

Weight	9 lbs
Dimensions	9.1 × 13.8 × 5.9 in
Dimensions (L x W x H mm)	230 x 350 x 150 mm
Battery Voltage Nominal	12 V
Cont Power V A25	500 VA
Cont Power W25	400 W
Cont Power W40	350 W
Peak Power Rating	900 W
AC Output Voltage	230 V
Frequency	50 Hz
DC Input Voltage Range	[9.2, 17] V
DC Low Shut Down	9.3 V
DC Low Restart Alarm	10.9 V
Dynamic Low DC Shutdown	1
Battery Charged Detection Voltage	14 V
Max Efficiency	90 %
Zero Load Power	6 W
Zero Load Power Eco Mode	1 W
Eco Mode Retry Interval	2.5 s
Eco Mode Stop Start Power Setting	Adjustable
Remote On Off Terminal	1
Communication Port	VE.Direct
Fully Programable	1
Protections	Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload
Max Humidity	95 %
Power Deration	1.25 %
AC Outlet Socket	IEC-320 (male plug included)
Remote Terminal	Screw terminal two pole
Colour	Blue (RAL 5012)
Material	Steel chassis and plastic cover
Protection Category	IP21
Weight	3.9 kg
Height	86 mm
Width	172 mm
Depth	275 mm
Safety	EN-IEC 60335-1,EN-IEC 62109-1
E M C	EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Automotive Directive	ECE R10-4
Battery Voltage	12 V
AC Output Voltage	230 V
