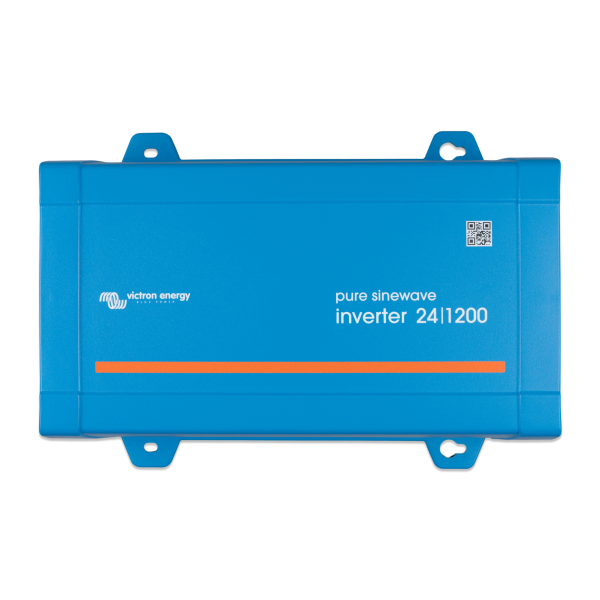

Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R
Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R

$356.00

Available on backorder

🔍
Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R

Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R

Victron

$356.00

AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

Inverters allow you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

Weight 15.2 lbs
Dimensions 11.4 × 17.3 × 7.5 in
Dimensions (L x W x H mm)

290 x 440 x 190 mm
Battery Voltage Nominal

24 V
Cont Power V A25

1,200 VA
Cont Power W25

1,000 W
Cont Power W40

850 W
Peak Power Rating

2,200 W
AC Output Voltage

120 V
Frequency

60 Hz
DC Input Voltage Range

[18.4, 34] V
DC Low Shut Down

1,806 V
DC Low Restart Alarm

21.8 V
Dynamic Low DC Shutdown

1
Battery Charged Detection Voltage

28 V
Max Efficiency

91 %
Zero Load Power

8 W
Zero Load Power Eco Mode

1.5 W
Eco Mode Retry Interval

2.5 s
Eco Mode Stop Start Power Setting

Adjustable
Remote On Off Terminal

1
Communication Port

VE.Direct
Fully Programable

1
Protections

Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload
Max Humidity

95 %
Power Deration

1.25 %
AC Outlet Socket

Nema 5-15R
Remote Terminal

Screw terminal two pole
Colour

Blue (RAL 5012)
Material

Steel chassis and plastic cover
Protection Category

IP21
Weight

7.4 kg
Height

117 mm
Width

232 mm
Depth

327 mm
Safety

EN-IEC 60335-1,EN-IEC 62109-1
E M C

EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Automotive Directive

ECE R10-4
Battery Voltage

AC Output Voltage
