Quattro 12/3000/120-50/50 230V VE.Bus

Victron

$1,927.00

AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

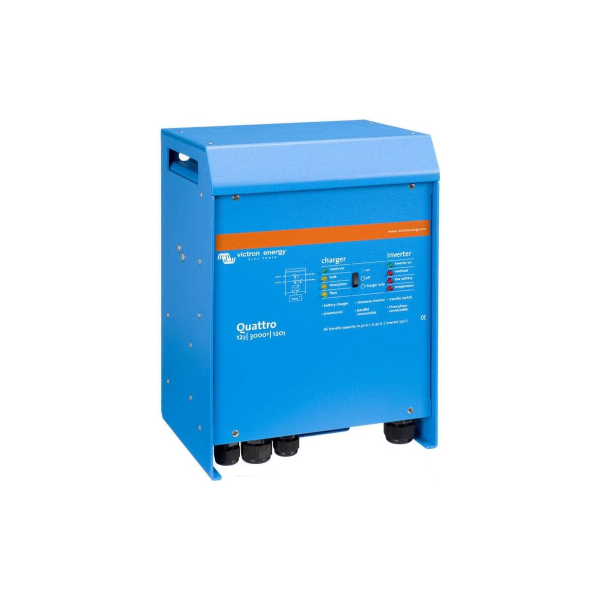

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Weight 44.1 lbs
Dimensions 13 × 17.5 × 11.6 in
Dimensions (L x W x H mm)

330 x 445 x 295 mm
Battery Voltage Nominal

12 V
Power Control

1
Power Assist

1
Parallel Operation

1
Three Phase Operation

1
Integrated Transfer Switch

1
Number Ac Inputs

2
AC Input Voltage Range

[187, 250] V
Frequency Select

50Hz or 60Hz
Max Feed Trough Current

2x 50A
Icw

6,000 A
DC Input Voltage Range

[9.5, 17] VDC
AC Output Voltage

230 VAC
AC Output Frequency

50 Hz
Cont Power V A25

3,000 VA
Cont Power W25

2,400 W
Cont Power W40

2,200 W
Cont Power W65

1,700 W
Peak Power Rating

6,000 W
DC Input Current

250 A
Max Output Ac Current

11 A
Max Output Ac Current Fault

32 A
Max Efficiency

93 %
Zero Load Power

20 W
Zero Load Power A E S

15 W
Zero Load Power Search

8 W
Charge Voltage Absorption

14.4 VDC
Charge Voltage Float

13.8 VDC
Charge Voltage Storage

13.2 VDC
Charge Algorithm

Adaptive, 4-stage
Maximum Battery Charge Current

120 A
Starter Battery Charge Current

4 A
Temperature Sensor

Included
Auxiliary Output

1
Programmable Relay

AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections

Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Communication Port General

1
Remote Terminal

On / Off / Charger only
Fan Assist Cooling

1
Max Humidity

95 %
Max Altitude

2,000 m
Remote Terminal Type

Screw terminal two pole
Relay Terminal

Screw terminal 3-pole
Vebus Terminal Type

Two RJ45 terminals
Material

Aluminium
Colour

Blue (RAL 5012)
Protection Category

IP20
Pollution Degree

2
Ovciii Icw

1
Weight

19 kg
Height

362 mm
Width

258 mm
Depth

218 mm
Safety

EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
Emission Immunity

EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Automotive Directive

ECE R10-4
Anti Islanding Standard

See our website
Battery Voltage

AC Output Voltage
