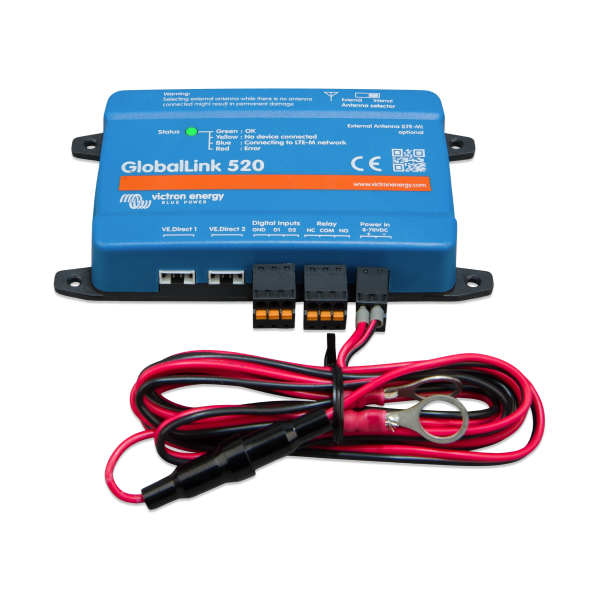

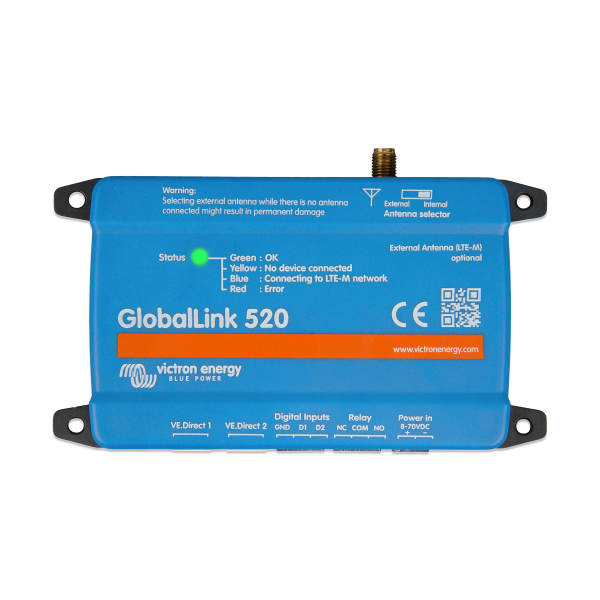

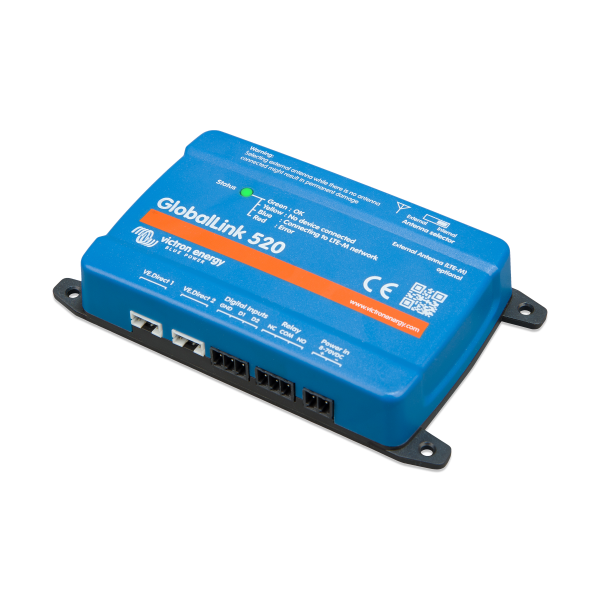

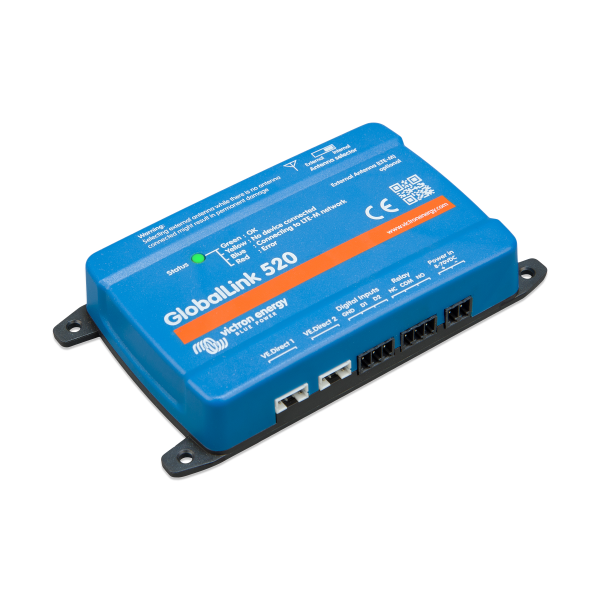

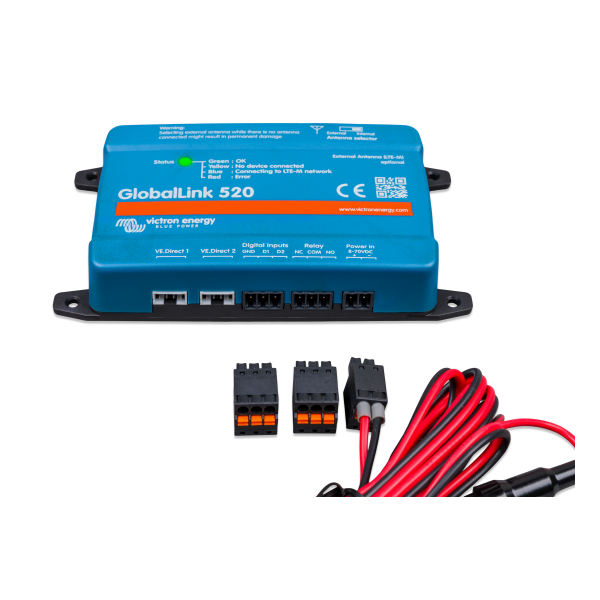

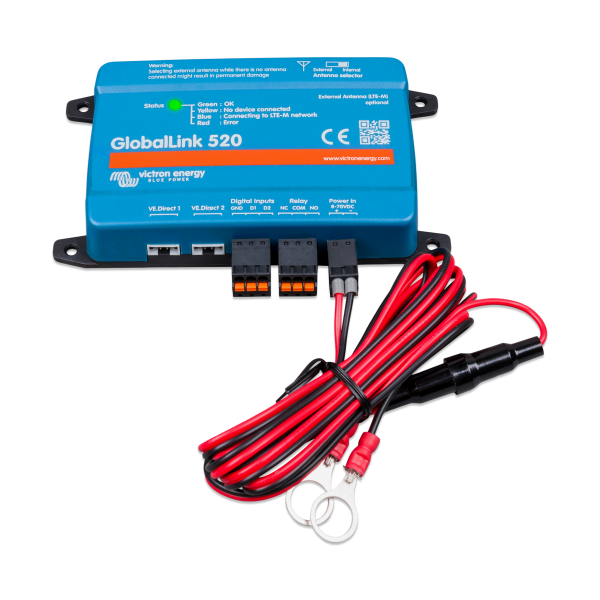

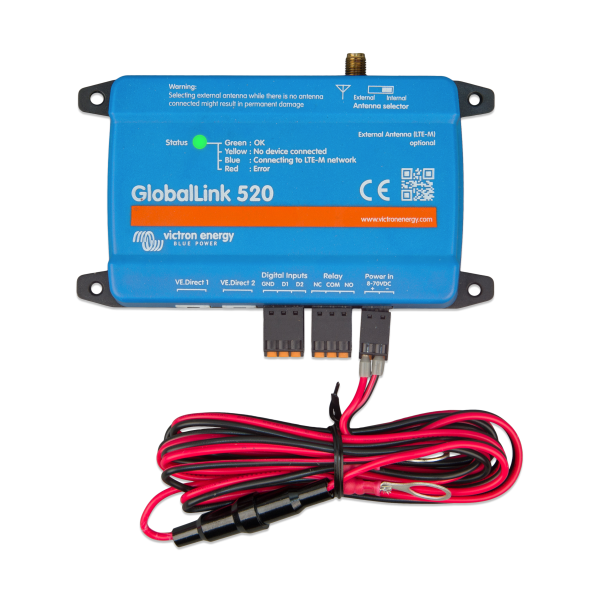

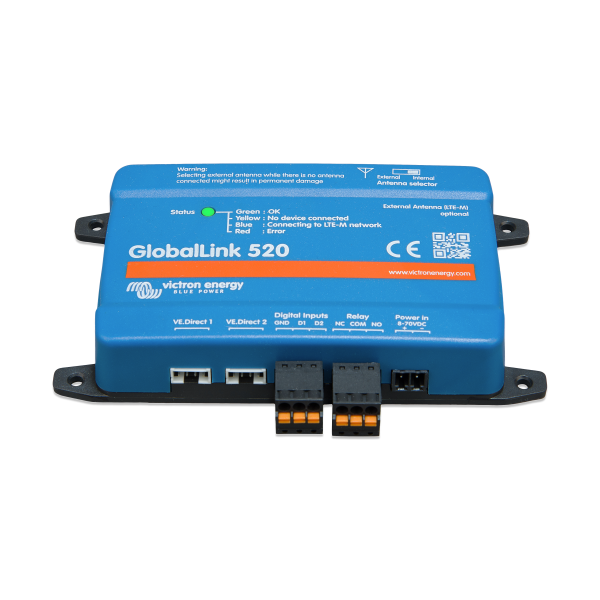

GlobalLink 520

Name: GlobalLink 520
Brand: Victron
SKU: ASS030543020
Availability: BackOrder

Victron

$243.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

We believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so we have created the GlobalLink 520. This device will bring 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years.

Weight	0.2 lbs
Dimensions	4.3 × 6.3 × 2.2 in
Dimensions (L x W x H mm)	110 x 160 x 55 mm
Supply Voltage Range	[8, 70] V
Power Draw Relay Open12	50 mA
Power Draw Relay Open24	26 mA
Power Draw Relay Open48	14 W
Power Draw Relay Closed12	64 mA
Power Draw Relay Closed24	34 W
Power Draw Relay Closed48	19 mA
Mounting	Wall
Ve Direct	2x isolated
Wifi	No
Cellular	CAT M1 (LTE-M) 17 bands supported from 699Mhz to 2690Mhz (Total world- wide support) Bands supported are currently: 1, 2, 3, 4, 5, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 66
Antenna	Internal and SMA connector for optional external antenna
Factory Sim	Prepaid 1nce data SIM with 5 years of connectivit
Custom Sim	yes
Ruuvi Tag Support	Yes
Instant Readout Bluetooth	Yes, connect up to 10 additional Smart devices via BLE
Relays	1
Relay Type	NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC
Colour	Blue (RAL 5012)
Height	123 mm
Width	67 mm
Depth	23 mm
