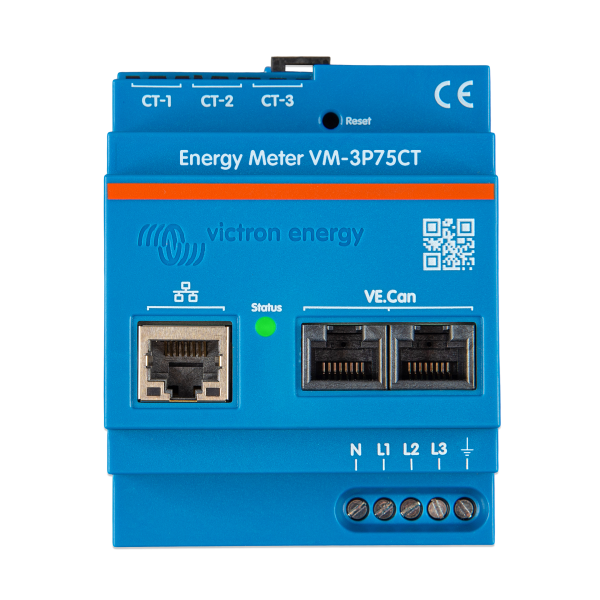

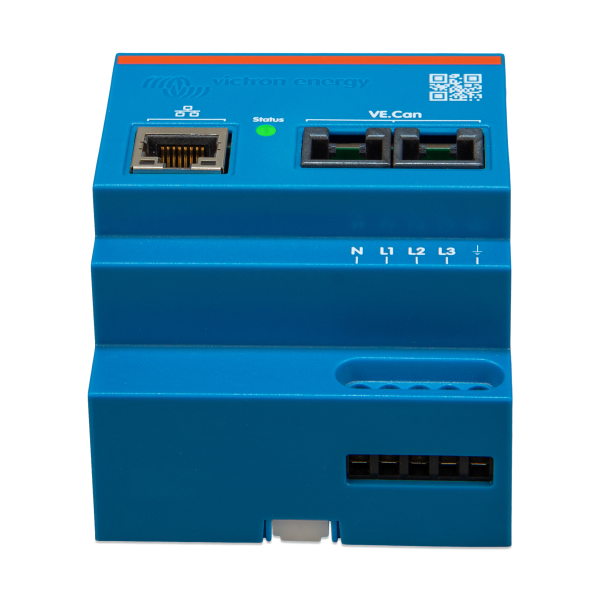

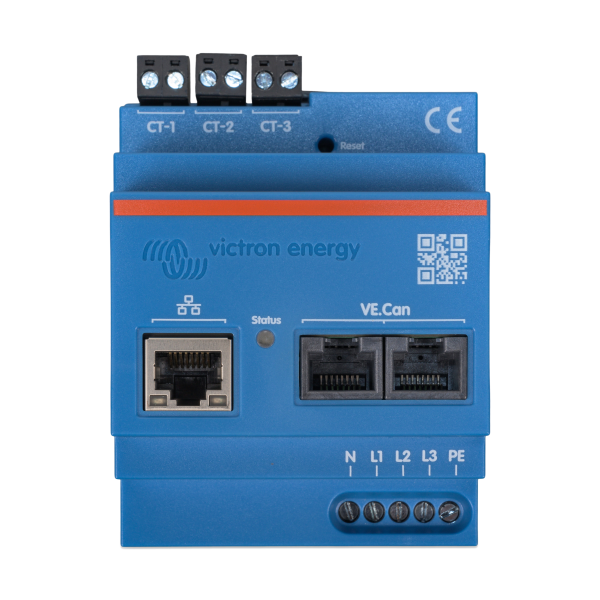

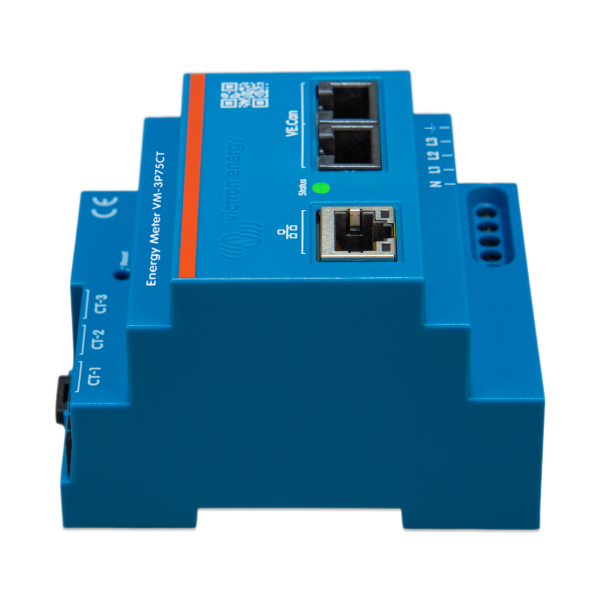

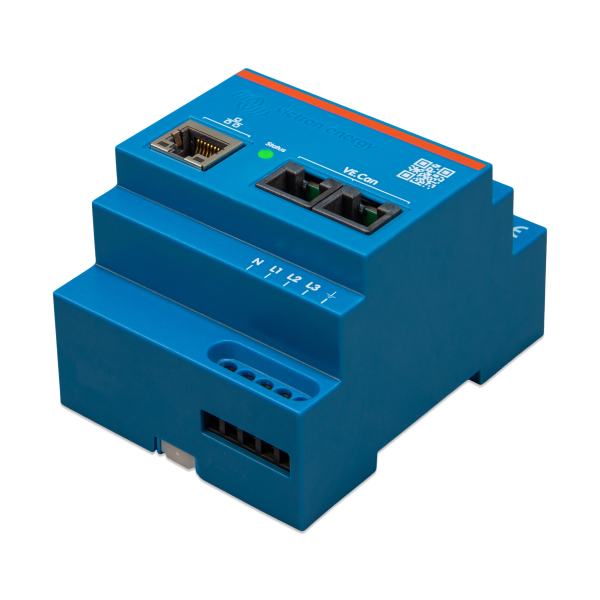

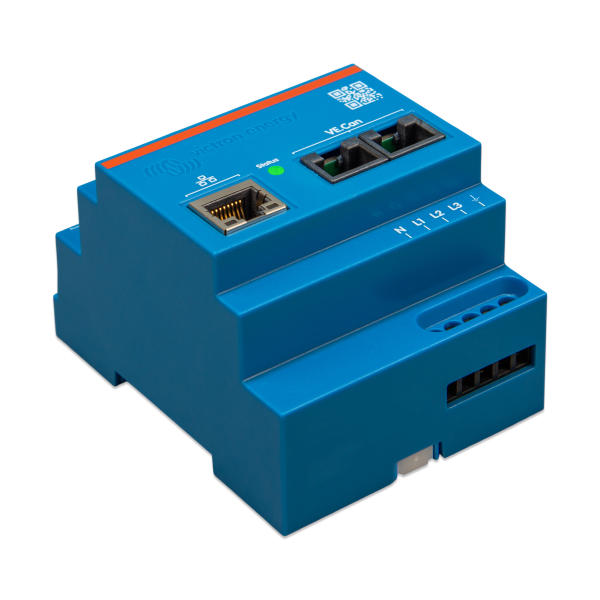

Energy Meter VM-3P75CT

Victron

$192.00

AvailableShips next business day
Congratulations! You got free shipping 🎉
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

Energy Meters are typically used in an Energy Storage System, to measure the power and energy of the entire application at the distribution box and minimises energy import or export to the grid. They can also be used to measure the output of a PV inverter or AC loads and display the data on GX devices such as the Cerbo GX or Ekrano GX and the VRM Portal.

There are several models available from Victron:

  • Victron VM-3P75CT energy meter (Ethernet and VE.Can – for three-phase and split-phase, uses supplied CTs, max. 80A per phase)
  • ET112 (RS485 – for single-phase max. 100A)
  • ET340 (RS485 – for three-phase max. 65A)
  • EM24 Ethernet (Ethernet – for three-phase max. 65A)
  • EM540 (RS485 – for three-phase max. 65A)

For more information, please see the Selection Guide – Energy Meters PDF below.

Weight 0.6 lbs
Dimensions 3.9 × 5.5 × 2.6 in
Dimensions (L x W x H mm)

100 x 140 x 65 mm
Voltage Connection

Direct
Input Voltage Range L N

[85, 265] V
Input Voltage Range L L

[150, 460] V
Frequency Select

50Hz or 60Hz
Current Connection

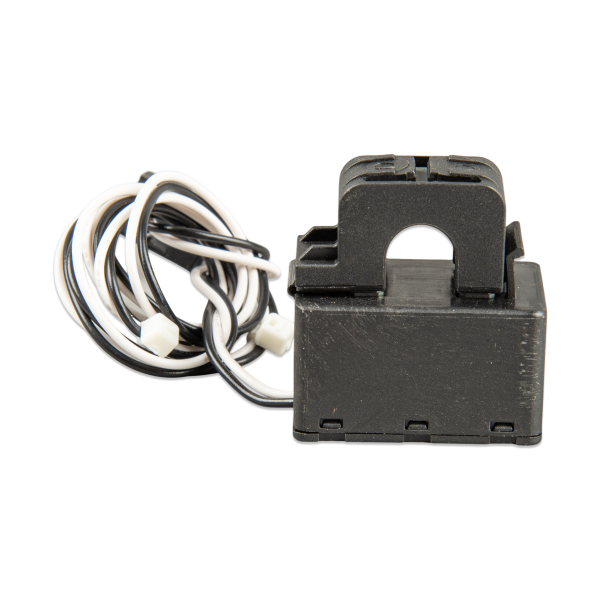

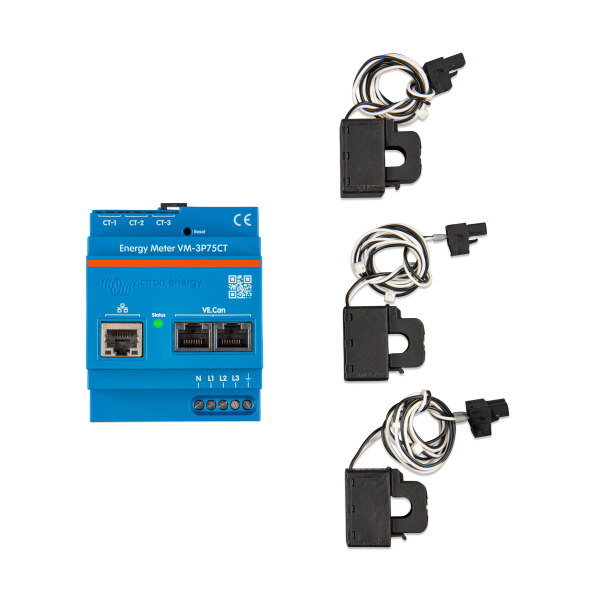

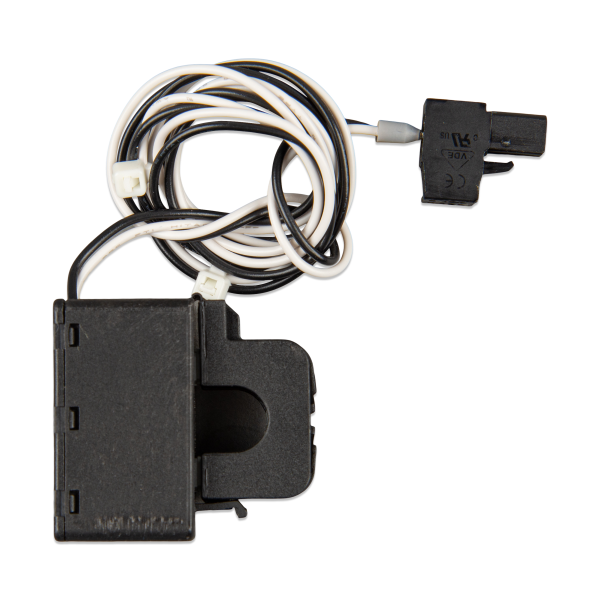

Via current transformers (included – wire length 640 mm)
Rated Current

75 A
Ve Can Port

Two RJ45 connectors (VE.Can terminators included)
Ethernet Port

One RJ45 connector, Modbus UDP
Refresh Rate

100 ms
Power Type

Self-power supply via L1-N
Consumption W

1.45 W
Consumption V A

3.1 VA
Frequency

50Hz or 60Hz
Current Transformer Connection Terminal

Pluggable screw terminals (included)
Material

polycarbonate
Colour

Blue (RAL 5012)
Protection Category

IP20
Weight

0.37 kg
Height

90 mm
Width

71 mm
Depth

59 mm
Indoor Outdoor Usage

Indoor only
Max Humidity

90 %
Altitude

2,000 m
Overvoltage Category

Cat.III
Pollution Degree

2
Safety

EN-IEC 61010-1
