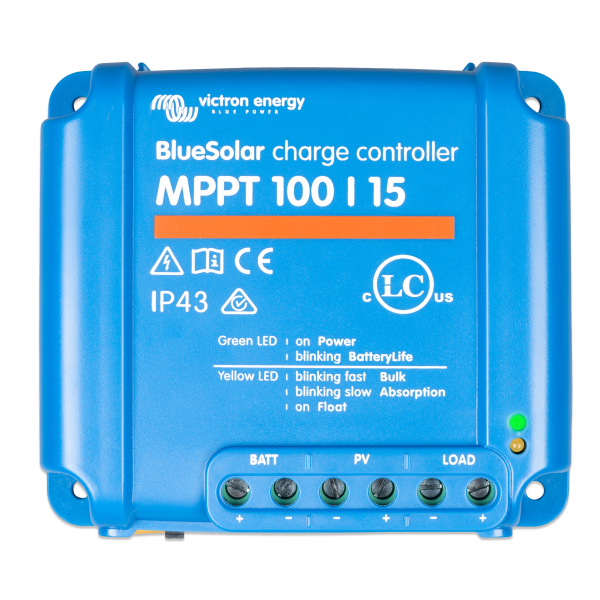

BlueSolar MPPT 100/15 Retail
$69.00
AvailableShips next business day
Add $321.00 more to get free shipping!
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 5.9 × 8.3 × 2 in |
| Dimensions (L x W x H mm) | 150 x 210 x 50 mm |
| Battery Voltage Auto Select | 12V / 24V ( |
| Rated Charge Current | 15 A |
| Nominal P Vpower12 V | 220 W |
| Nominal P Vpower24 V | 440 W |
| Charge Voltage Absorption | 14.4V / 28.8V (adjustable) |
| Charge Voltage Float | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Max Efficiency | 98 % |
| Selfconsumption Load On | 12V: 19 mA / 24V: 16 mA |
| Selfconsumption Load Off | 12V: 10 mA / 24V: 8 mA |
| Max PV Open Circuit Voltage | 100 V |
| Start Up PV DC Voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Number Of Trackers | 1 |
| Max PV Short Circuit Current | 15 A |
| Max Continuous Load Current12 | 15 A |
| Max Continuous Load Current24 | 15 A |
| Low Voltage Load Disconnect | 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm |
| Low Voltage Load Reconnect | 13.1V / 26.2V or 14V / 28V or Battery Life algorithm |
| Protections | Excessive temperature,Overload,Automatic load disconnect,PV reverse polarity |
| Max Humidity | 95 % |
| Data Communication | VE.Direct |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Weight | 0.6 kg |
| Height | 100 mm |
| Width | 113 mm |
| Depth | 50 mm |
| Safety | CSA C22.2,EN-IEC 62109-2,UL 1741 |
| Data Retention Period | 46 d |
| Solar Charger Type |
