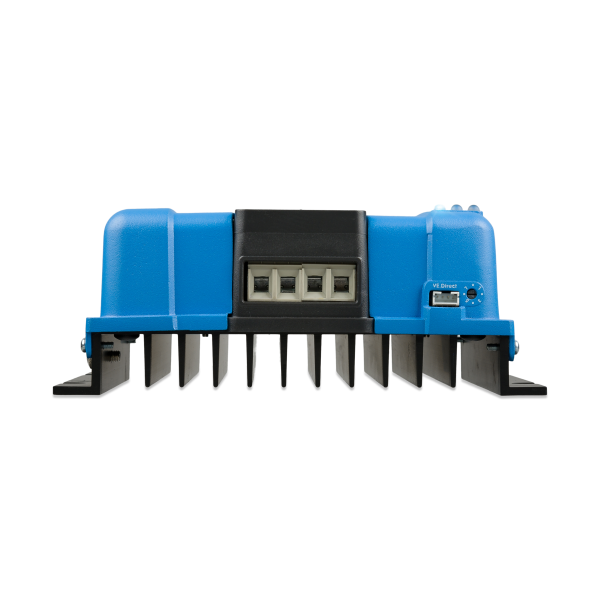

BlueSolar MPPT 150/60-Tr
$358.00
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
| Weight | 8.6 lbs |
|---|---|
| Dimensions | 9.8 × 10.6 × 5.9 in |
| Dimensions (L x W x H mm) | 250 x 270 x 150 mm |
| Battery Voltage Auto Select | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Rated Charge Current | 60 A |
| Nominal P Vpower12 V | 860 W |
| Nominal P Vpower24 V | 1,720 W |
| Nominal P Vpower48 V | 3,440 W |
| Charge Voltage Absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge Voltage Float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Max Efficiency | 98 % |
| Self Consumption | 10mA |
| Max PV Open Circuit Voltage | 150 V |
| Start Up PV DC Voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Number Of Trackers | 50 |
| Max PV Short Circuit Current | 150 A |
| Low Voltage Load Disconnect | 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm |
| Low Voltage Load Reconnect | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Max Humidity | 95 % |
| Data Communication | VE.Direct |
| Colour | Blue (RAL 5012) |
| Protection Category | IP43 (electronic components),IP22 (connection area) |
| Weight | 3 kg |
| Height | 185 mm |
| Width | 250 mm |
| Depth | 95 mm |
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
| Data Retention Period | 46 d |
| Solar Charger Type |
