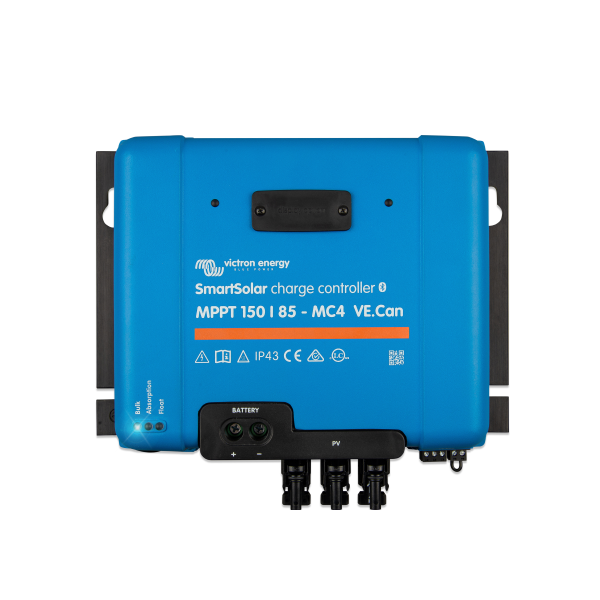

SmartSolar MPPT 150/85-MC4 VE.Can
$519.00
AvailableShips next business day
Add $463.00 more to get free shipping!
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
| Weight | 9.9 lbs |
|---|---|
| Dimensions | 11.4 × 13 × 6.3 in |
| Dimensions (L x W x H mm) | 290 x 330 x 160 mm |
| Battery Voltage Auto Select | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Rated Charge Current | 85 A |
| Nominal P Vpower12 V | 1,200 W |
| Nominal P Vpower24 V | 2,400 W |
| Nominal P Vpower36 V | 3,600 W |
| Nominal P Vpower48 V | 4,900 W |
| Charge Voltage Absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge Voltage Float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Max Efficiency | 98 % |
| Self Consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Max PV Open Circuit Voltage | 150 V |
| Start Up PV DC Voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Number Of Trackers | 1 |
| Max PV Current Per Mc4 | 30 A |
| Max PV Short Circuit Current | 70 A |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Max Humidity | 95 % |
| Max Altitude | 5,000 |
| Environmental Condition | Indoor, unconditioned |
| Pollution Degree | PD3 |
| Bluetooth | 1 |
| Data Communication | Bluetooth,VE.Direct,VE.Can |
| Remote On Off Terminal | 1 |
| Programmable Relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Number Of Sync Parallel Operating Units | 25 |
| Number Of Sync Parallel Operating Units B T | 10 |
| PV Connection Terminal Type | MC4 connectors (two pairs) |
| Remote On Off Terminal Connection | Screw terminal two pole |
| Relay Terminal Connection1 | Screw terminal 3-pole |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Weight | 4.5 kg |
| Height | 246 mm |
| Width | 295 mm |
| Depth | 103 mm |
| Safety | EN-IEC 62109-1,CSA C22.2,UL 1741 |
| Data Retention Period | 46 d |
| Data Stored | Battery voltage,Battery current,Battery temperature,PV voltage,PV current |
| Solar Charger Type |
Only logged in customers who have purchased this product may leave a review.
Related products
-
BlueSolar MPPT 75/15 Retail
SCC010015050RAvailableShips next business day -
BlueSolar PWM-LCD&USB 12/24V-20A
SCC010020050AvailableShips next business day -

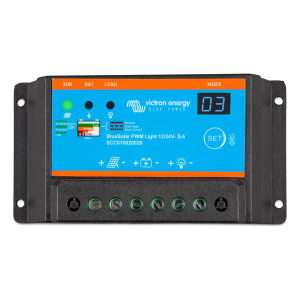

BlueSolar PWM-Light Charge Controller 12/24V-5A
