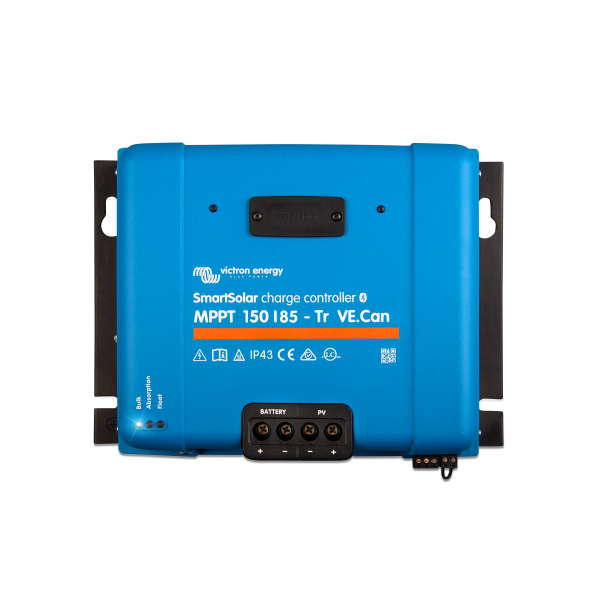

SmartSolar MPPT 150/85-Tr VE.Can
SmartSolar MPPT 150/85-Tr VE.Can

$508.00

Available on backorder

🔍
SmartSolar MPPT 150/85-Tr VE.Can

SmartSolar MPPT 150/85-Tr VE.Can

Victron

$508.00

AvailableShips next business day
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Weight 9.9 lbs
Dimensions 11.4 × 13 × 6.3 in
Dimensions (L x W x H mm)

290 x 330 x 160 mm
Battery Voltage Auto Select

12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current

85 A
Nominal P Vpower12 V

1,200 W
Nominal P Vpower24 V

2,400 W
Nominal P Vpower36 V

3,600 W
Nominal P Vpower48 V

4,900 W
Charge Voltage Absorption

14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float

13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm

Multi-stage adaptive (adjustable)
Temperature Sensor

Optional (Smart Battery Sense)
Max Efficiency

98 %
Self Consumption

Less than 35mA @ 12V / 20mA @ 48V
Max PV Open Circuit Voltage

150 V
Start Up PV DC Voltage

The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers

1
Max PV Short Circuit Current

70 A
Protections

Output short-circuit,Excessive temperature,PV reverse polarity
Max Humidity

95 %
Max Altitude

5,000
Environmental Condition

Indoor, unconditioned
Pollution Degree

PD3
Bluetooth

1
Data Communication

Bluetooth,VE.Direct,VE.Can
Remote On Off Terminal

1
Programmable Relay

DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Number Of Sync Parallel Operating Units

25
Number Of Sync Parallel Operating Units B T

10
Remote On Off Terminal Connection

Screw terminal two pole
Relay Terminal Connection1

Screw terminal 3-pole
Colour

Blue (RAL 5012)
Protection Category

IP22 (connection area),IP43 (electronic components)
Weight

45 kg
Height

216 mm
Width

295 mm
Depth

103 mm
Safety

CSA C22.2,EN-IEC 62109-1,UL 1741
Data Retention Period

46 d
Data Stored

Battery voltage,Battery current,Battery temperature,PV voltage,PV current
Solar Charger Type
