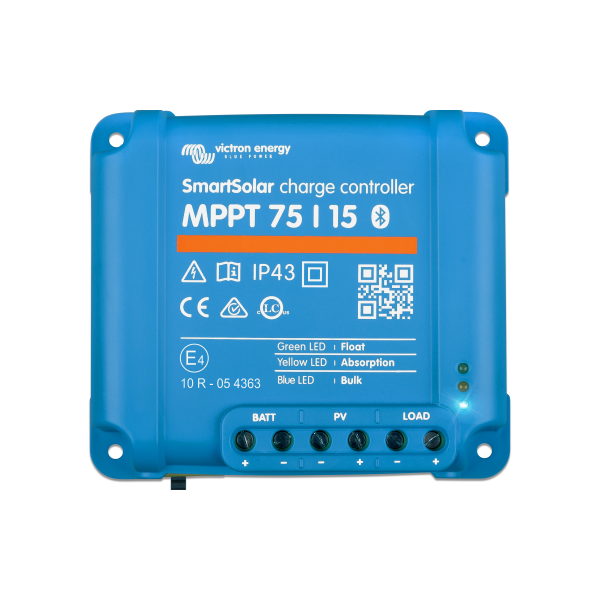

SmartSolar MPPT 75/15 Retail
SmartSolar MPPT 75/15 Retail

$71.00

Available on backorder

🔍
SmartSolar MPPT 75/15 Retail

SmartSolar MPPT 75/15 Retail

Victron

$71.00

AvailableShips next business day
Add $416.00 more to get free shipping!
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Weight 1.3 lbs
Dimensions 5.9 × 8.3 × 2 in
Dimensions (L x W x H mm)

150 x 210 x 50 mm
Battery Voltage Auto Select

12V / 24V (
Rated Charge Current

15 A
Nominal P Vpower12 V

220 W
Nominal P Vpower24 V

440 W
Charge Voltage Absorption

14.4V / 28.8V (adjustable)
Charge Voltage Float

13.8V / 27.6V (adjustable)
Charge Algorithm

Multi-stage adaptive (adjustable)
Temperature Sensor

Optional (Smart Battery Sense)
Max Efficiency

98 %
Selfconsumption Load On

12V: 19mA / 24V: 16mA
Selfconsumption Load Off

12V: 10mA / 24 V: 8mA
Max PV Open Circuit Voltage

75 V
Start Up PV DC Voltage

The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers

1
Max PV Short Circuit Current

15 A
Max Continuous Load Current12

15 A
Max Continuous Load Current24

15 A
Low Voltage Load Disconnect

11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm
Low Voltage Load Reconnect

13.1V / 26.2V or 14V / 28V or Battery Life algorithm
Protections

Automatic load disconnect,Excessive temperature,Output short-circuit,PV reverse polarity
Max Humidity

95 %
Bluetooth

1
Data Communication

Bluetooth,VE.Direct
Colour

Blue (RAL 5012)
Protection Category

IP43 (electronic components)
Weight

0.5 kg
Height

100 mm
Width

113 mm
Depth

40 mm
Safety

UL 1741,CSA C22.2,EN-IEC 62109-1
Data Retention Period

46 d
Data Stored

Battery voltage,Battery current,Battery temperature,Battery state of charge percentage,Battery midpoint deviation,Starter battery voltage,Load output Current,PV voltage,PV current
Solar Charger Type
