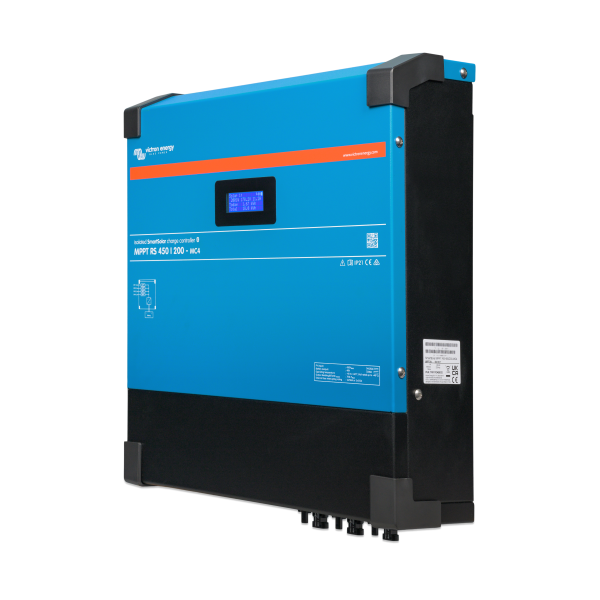

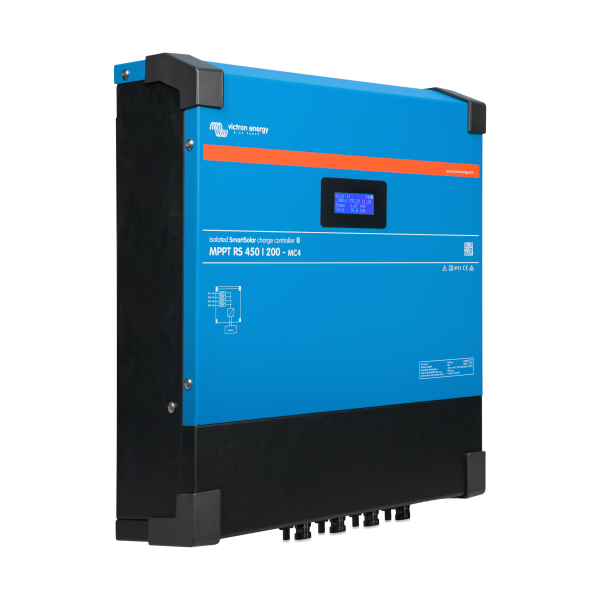

SmartSolar MPPT RS 450/200-MC4
$2,173.00
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
The SmartSolar MPPT RS solar charge controllers are Victron’s solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
| Weight | 28.7 lbs |
|---|---|
| Dimensions | 20.9 × 22.8 × 9.8 in |
| Dimensions (L x W x H mm) | 530 x 580 x 250 mm |
| Battery Voltage Auto Select | 48V |
| Rated Charge Current | 200 A |
| Maximum Charge Power | 11.5 kW |
| Charge Voltage Absorption | 57.6V (adjustable) |
| Charge Voltage Float | 55.2V (adjustable) |
| Adjustable Charge Voltage Range | [36, 60] V |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Temperature Sensor | Included |
| Max Efficiency | 98 % |
| Self Consumption | 12mA |
| Max PV DC Voltage | 450 V |
| Start Up PV DC Voltage | 120V |
| M P P T Operating Voltage Range | [65, 120] V |
| Number Of Trackers | 1 |
| Max PV Operational Input Current Tracker | 16 |
| Max PV Short Circuit Current | 20 A |
| Max DC Output Charging Power Per Tracker | 4,000 W |
| Max DC Output Charging Power Trackers Combined | 15,200 W |
| Max PV Array Per Tracker | 7,200 W |
| PV Isolation Fail Level | 100 k? |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Max Humidity | 95 % |
| Bluetooth | 1 |
| Bluetooth Power | 4 dBmW |
| Bluetooth Frequency Range | [2,402, 2,480] Hz |
| Data Communication | VE.Direct,VE.Can,Bluetooth |
| Remote On Off Terminal | 1 |
| Programmable Relay | DC rating: 4A up to 35VDC and 1A up to 70VDC |
| Number Of General Purpose Analogue | 2 |
| Number Of Sync Parallel Operating Units | 25 |
| Battery Connection Terminal Type | M8 threaded inserts |
| PV Connection Terminal Type | MC4 male/female pair per tracker |
| Colour | Blue (RAL 5012) |
| Material | Steel |
| Protection Category | IP21 |
| Weight | 13.7 kg |
| Height | 487 mm |
| Width | 434 mm |
| Depth | 146 mm |
| Safety | EN-IEC 62109-1,EN-IEC 62109-2 |
| Data Retention Period | 46 d |
| Solar Charger Type |
