Battery Monitor BMV-700H

Name: Battery Monitor BMV-700H
Brand: Victron
SKU: BAM010700100
Availability: BackOrder

Victron

$568.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

The BMV-700H and the BMV-710H Smart are high precision battery monitors that have been specially designed for systems with a high battery voltage ranging from 60 to 385 Volts.

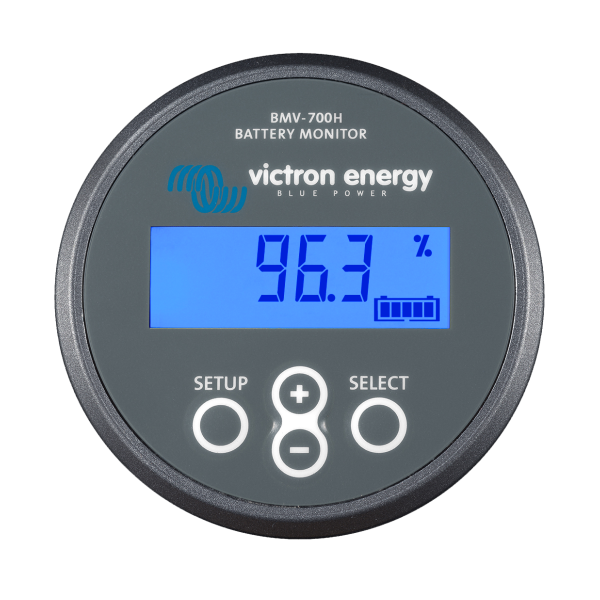

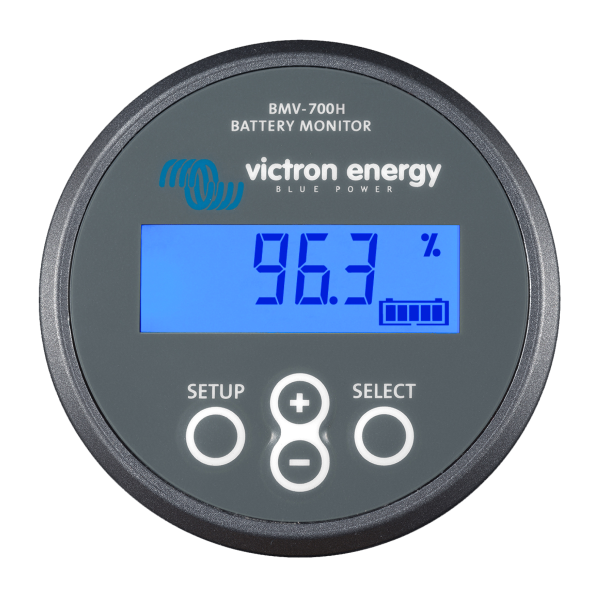

These battery monitors calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

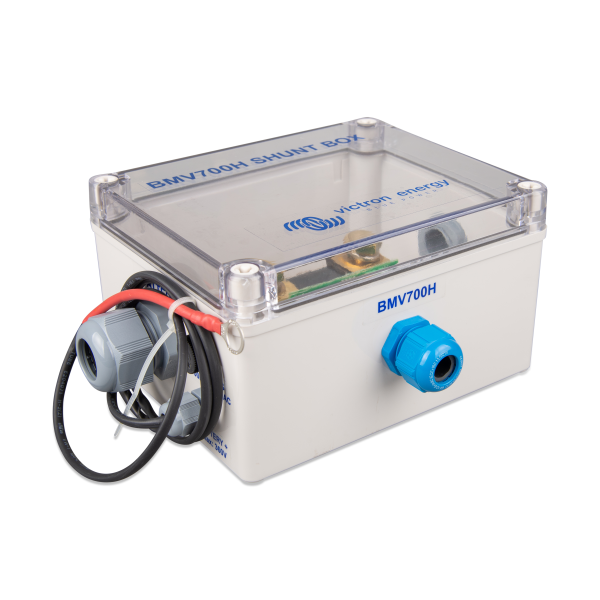

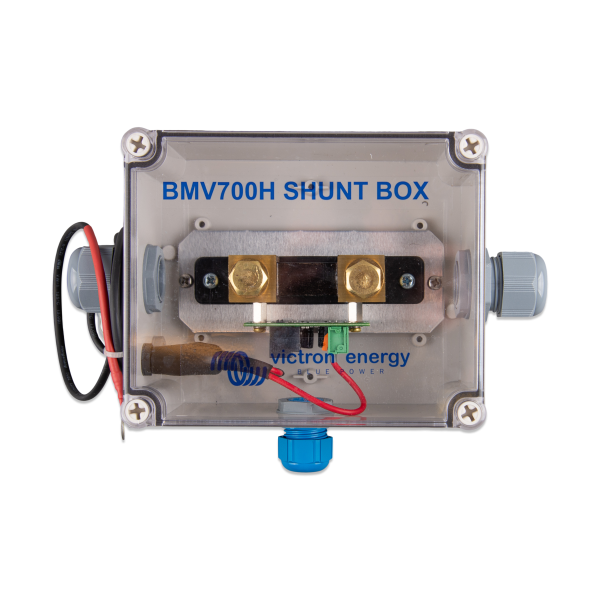

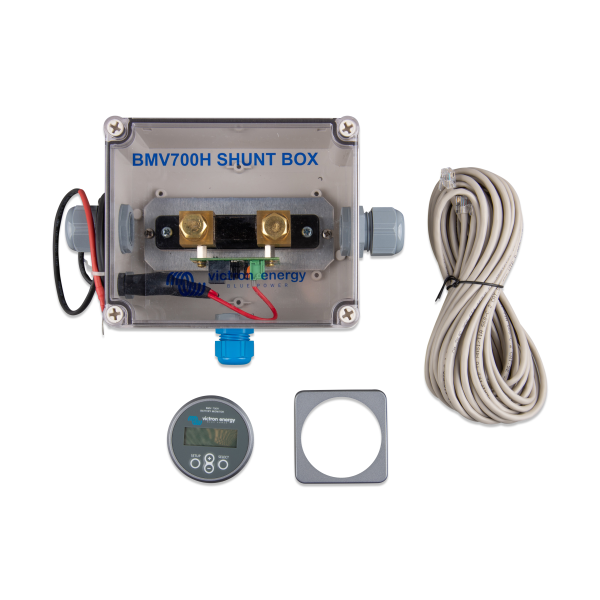

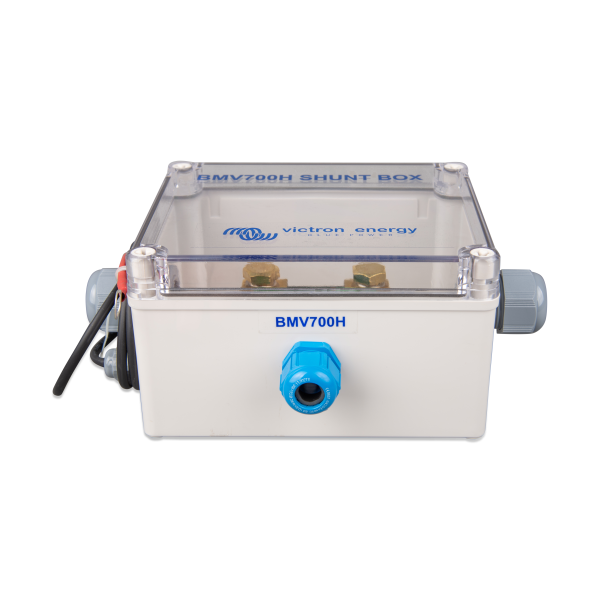

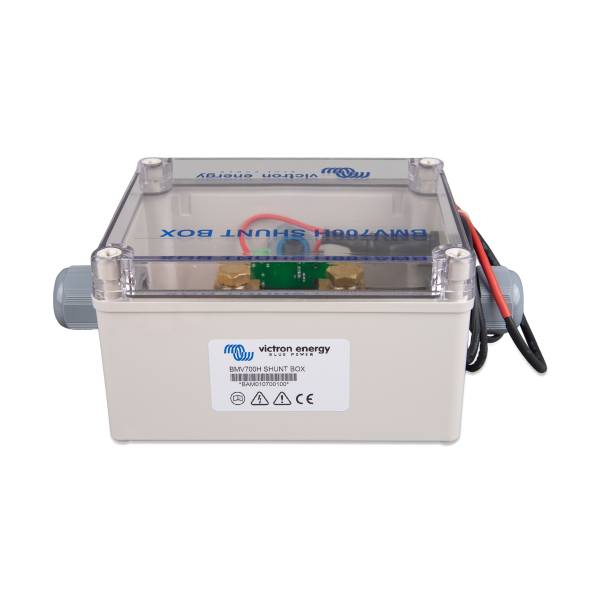

They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

To read more about the full BMV range & accessories, see this blog.

Weight	1.6 lbs
Dimensions	8.3 × 8.3 × 2.6 in
Dimensions (L x W x H mm)	210 x 210 x 65 mm
Supply Voltage Range	[60, 385] VDC
Current Rating	500 A
Battery Capacity Measurement Range	[1, 9,999] Ah
Current Draw	4 mA
Communication Port	VE.Direct
Programmable Relay	Normally open 60V / 1A
Display	1
Visual Alarm On Device	1
Audible Alarm On Device	1
Current Measurement Resolution	0.01 A
Voltage Measurement Resolution	0.01 V
Capacity Measurement Resolution	0.1 Ah
State Of Charge Measurement Resolution	0.1 %
Time To Go Measurement Resolution	1 min
Measurement Accuracy	0.4 %
Current Measurement Accuracy	0.4 %
Voltage Measurement Accuracy	0.3 %
Positive Cable	1.5m cable with 1A fuse
Shunt Connection Terminals	M10 bolts
Display Shunt Cable	1.5m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device
Colour	Grey
Protection Category	IP55 (not for outdoor use)
Installation	Flush mount
Front Diameter	63 mm
Front Bezel	69 x 69 mm
Body Diameter	52 mm
Body Depth	31 mm
Shunt	500A / 50mV (included)
Safety	EN-IEC 60335-1
Emisison Immunity	EN 55014-1,EN 55014-2
Automotive Directive	ECE R10-4,EN 50498
Data Retention Period	46 d
